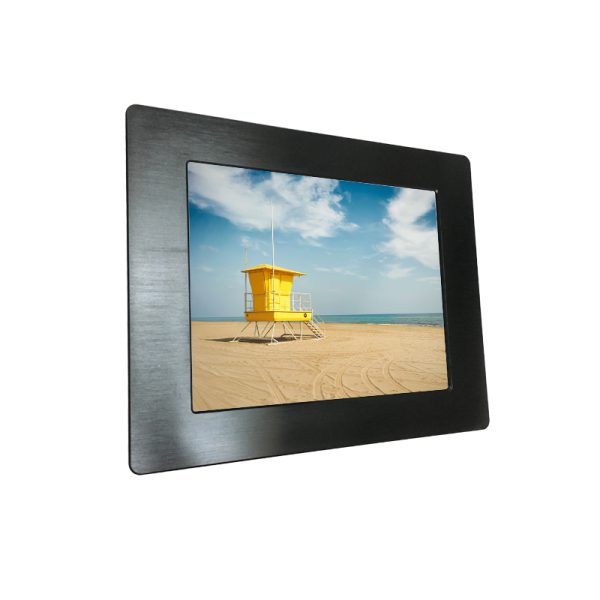

Small VGA Input 800X600 10.4 Inch Open Frame LCD Monitor with DC12V

Brand :

Model NO: AXD-10OPN1P3-VH4(VGA)

Screen Size: 10.4 Inch

Display Resolution(pixel): 800×600

Contrast Ratio: 500:1

Brightness (CD/m^2): 1000cd/m^2

Touch type: Projected Capacitive

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 10.4″ Color TFT open framd lcd Monitor
Model Name AXD-10OPN1P3-VH4
Active Display Area (mm) 211.2(H)x158.4(V)
Pixel Pitch (mm) 0.264(H)x0.264(V)
Resolution (Pixel) VGA (800X600) 16.2M /6 bit + FRC
Brightness (CD/m^2) 1000cd/m^2
Contrast Ratio 500:1
Viewing Angle (CR >=10) 140/120
Power consumption 15 W typical, normal operation
Touch Screen capacitive  touch screen, please request if needed
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,4A 48W



Mechanical Specifications
Construction Steel open frame & black Color
Dimensions Subject to the updated drawings
Mounting Edge fixing holes,Vesa Mounting
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70ºC
Storage Temperature -30~80ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 10.4″ high brightness open frame Monitor and power adapter for outdoors application



Packaging & Delivery

Packing details 1x 10.4 inch open frame LCD display;

Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments;  15 working days for order production

Small VGA Input 800X600 10.4 Inch Open Frame LCD Monitor with DC12V
