| Display Specifications |
|
| Display |
19″ Color TFT Industrial Touch screen LCD Monitor |
| Model Name |
AXD-19OPAXMD-T1 |
| Active Display Area (mm) |
376.3 (H)x301.1(V) |
| Pixel Pitch (mm) |
0.294(H)x0.294(V) |
| Resolution (Pixel) |
SXGA (1280X1024) 16.7 M |
| Brightness (CD/m^2) |
350cd/m^2(Typ.) |
| Contrast Ratio |
1000:1 |
| Viewing Angle (CR >=10) |
170/160 |
| Power consumption |
18.5W typical, normal operation |
| Touch Screen |
|
| Type |
5 wire resistiveTouch |
| Surface Hardness |
3H |
| Durability |
50 Million Multi-touch |
| Transparency |
89% |
| I/O |

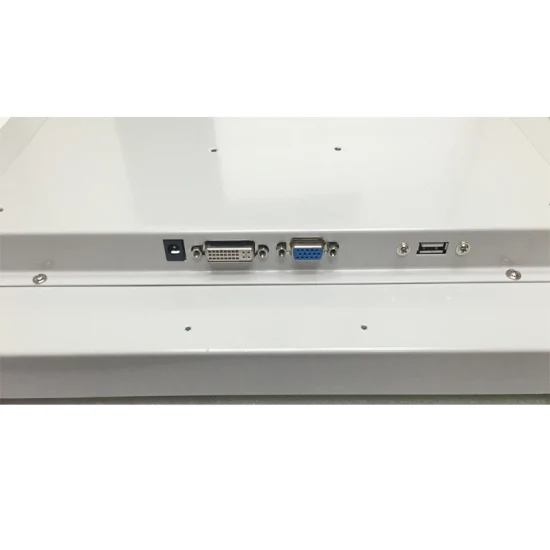

RGB analog(VGA)x1, DVI-Dx1;12V DC2.1 Jackx1;USBx1( for the touch connection only) |
| OSD |
6 Keys on the backside |
| Voltage Consumption |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation |
| Mechanical Specifications |
|
| Construction |
Steel chassis & Black Color |
| Dimensions |
429.0 x 347.8×50.0(mm) |
| Mounting |
Edge locking ,fixing holes embedded |
| Environment Specifications |
|
| Operating Temperature |
-10~60ºC |
| Storage Temperature |
-20~70ºC |
| Ordering Information |
19″ open frame 5 wire resisitve touch Monitor AXD-19OPAXMD-T1 |
