Display Specifications
|
|
Display |

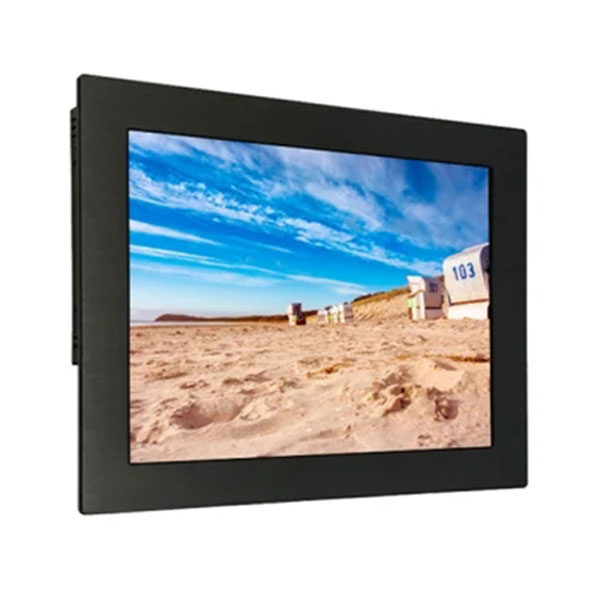

17″ Color TFT Open Frame Monitor
|
Model Name |
AXD-17OPN3P1-V3
|
Active Display Area (mm) |
337.920(H)x270.336(V)
|
Pixel Pitch (mm) |
0.264(H)x0.264(V)
|
Resolution (Pixel) |
XGA (1280X1024) 262K/6 bit + FRC
|
Brightness (CD/m^2) |
250cd/m^2
|
Contrast Ratio |
800:1
|
Viewing Angle (CR >=10) |
140/140
|
Power consumption |
26.8W typical, normal operation
|
Touch Screen |
Resistive;RS232/USB(Optional)
|
OSD Control |
On the back side
|

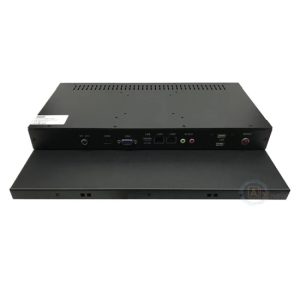

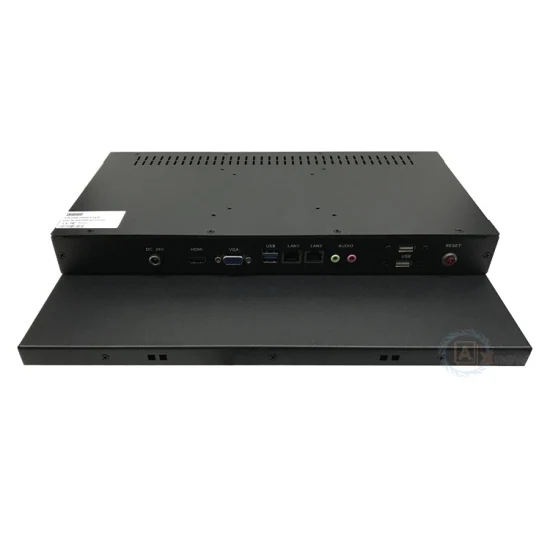

I/O Connectors |
1x12v,1XVGA,DVI-D(Optional)
|
Power Input |
DC 12V,4A48W
|
Mechanical Specifications
|
|
Construction |
metal chassis
|
Dimensions |
361.0 x 299.0x 34.0 (mm)
|
Mounting |
fixing holes on backside
|
Power source |
AC 100~240V/ 12V DC
|
Environment Specifications |
|
Operating Temperature |
0~60℃
|
Storage Temperature |
-10~70℃
|
Rating |
Facilitate installation of the demolition,solid portfolio
|
Ordering Information |
17” cheap OP Monitor with VGA input and power adapter
|
|
|
