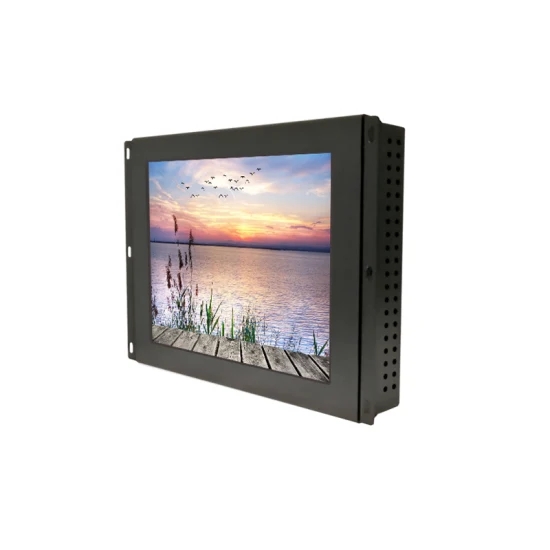

4/3 High Limunance 8 Inch Open Frame Capacitive LCD Monitor for ATM Kiosks Sc

Brand :

Model NO: AXD-08OPN1P3-T4

Screen Size: 8 Inch

Display Resolution(pixel): 800×600

Contrast Ratio: 500:1

Brightness (CD/m^2): 250cd/m^2

Touch type: Projected Capacitive

Application: Kiosks,Industrial machines,Automation,etc

Category:
LCD monitor information
Model Number AXD-08OPN1P3-T4(VGA; HDMI)
8” Touch LCD display
Type 8 ” TFT Active Matrix LCD with LED Backlight
Active Display Area(mm) 162.0(H)x121.5(V)
Pixel Pitch(mm) 0.213(H)x0.213(V)
Resolution 800 x 600,
Contrast Ratio 500:1 (typ.)
Display Color 16.7 M colors
Brightness 250(Typ)
Viewing Angles 140(H);120(V)
Response Time 10ms/15ms
Environmental Temperature
Operating Temperature -10ºC~70ºC
Storage Temperature -20ºC~80ºC
Signal Input
PC RGB analog; HDMI

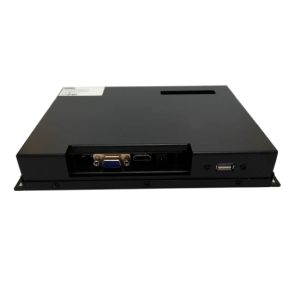

Other connections 1X DC Jack 2.1; 1xUSB for touch connection
Power Specification
Voltage Consumption AC 100~240V,Universal,±10% ; AC/DC 12V4A
3.3W typical, normal operation
Touch Screen Optional
touch panel Type Pro-Capacitive Touch screen anti-vandal
Touch interface USB
Transmittance >=92%
Input voltage 3.3V-5.5V
working temperature -10ºC~65ºC
touch kits >=50,000,000 times in one position
Dimensions
Construction Rugged chassis & Black Color
Holes fixings Right Left fixing holes
Mechanical dimensions 223.0 x 158.0x 31.0 (mm)
Drawings

Please contact us for details
