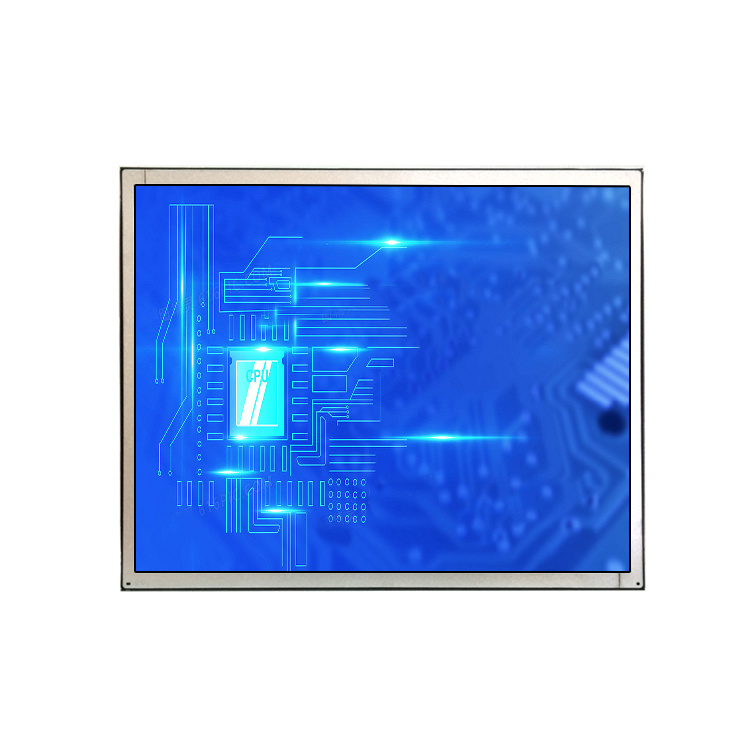

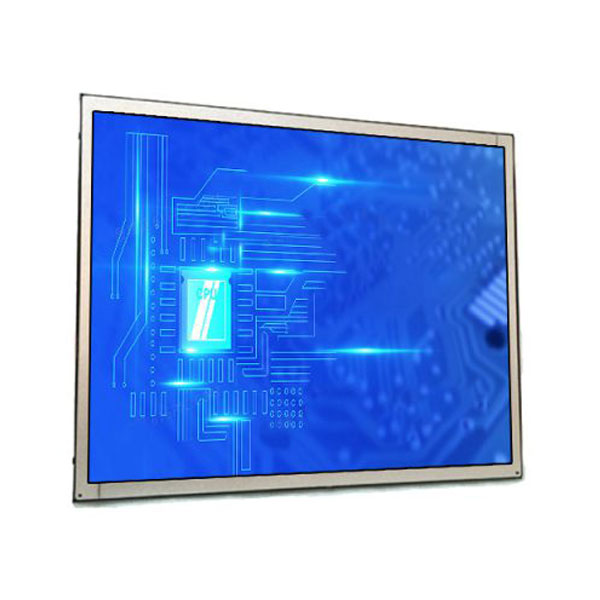

19 Inch open frame monitor with good quality

Brand :

Screen Size: 19.0inch

Display Resolution(pixel):1280×1024

Contrast Ratio:1000:1

Brightness (CD/m^2):300

Touch type: Resistive

Application: Kiosks, Industrial machines, Automation ,etc

Minimum Order Quantity:1 Piece

Price:Depends on product and order quantity

Packaging Details: 3 Pcs /Carton with firm foam

Delivery Time:10 working days for production order

Category:
Display Specifications
Display

19″ Color TFT Open Frame Monitor

Model Name

AXD-19OPN1P1-V2

Active Display Area (mm)

376.3 (H)x301.1(V)

Pixel Pitch (mm)

0.294(H)x0.294(V)

Resolution (Pixel)

SXGA (1280X1024) 262,144(6 bit + FRC)

Brightness (CD/m^2)

300cd/m^2

Contrast Ratio

1000:1

Viewing Angle (CR >=10)

170/160

Power consumption

18W typical, normal operation

Touch Screen

Resistive,SAW ;RS232/USB(Optional)

OSD Control

On the back side

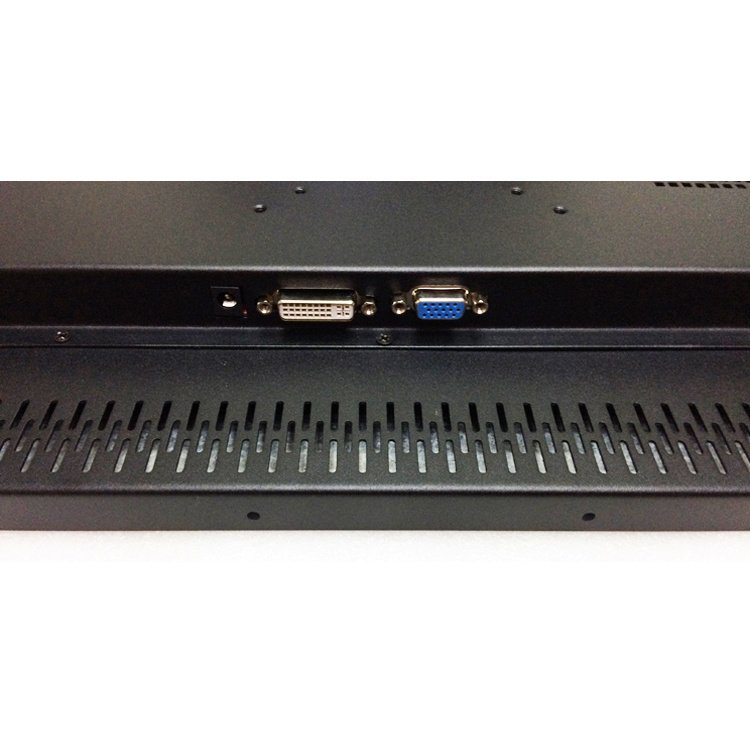

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A48W

Mechanical Specifications
Construction

Steel metal frame

Dimensions

398.5 x 326.5x 30.0 (mm)

Mounting

Edge locking ;Embedded optional

Power source

AC 100~240V/ 12V DC

Environment Specifications
Operating Temperature

-10~60

Storage Temperature

-20~70

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

19” OP Monitor with VGA input and power adapter









19'' open frame monitor with good quality
