| Display Specifications | |
| Display | 19″ Color TFT Projected capacitive touch open frame monitor |
| Model Name | AXD-19OPN1P1-C1 |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch(mm) | 0.297 (H) x 0.297 (V) |
| Resolution (Pixel) | 1280X1024 |
| Brightness (CD/m^2) | 300cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/170 |
| Power consumption | 19.5 W typical, normal operation |
| Touch Screen | 3.9mm projected-capacitive Touch;USB Port;eeti |
| Construction | G+G Cover glass |
| Durability | 50 Million touches(min) |
| OSD Control | On the back side |

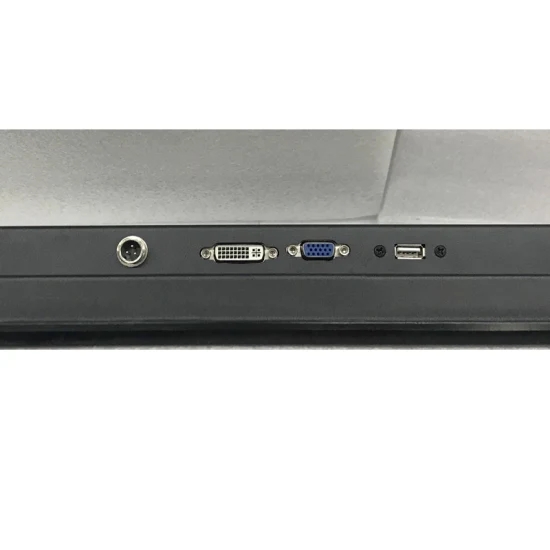

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 432.0 x 339.0×49.8 (mm) |
| Mounting | VESA 100X100 |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -5~60ºC |
| Storage Temperature | -70~70ºC |
| Ordering Information | 19″ projected-capacitive touch monitor |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; capacitive touch screen with EETI chipset for industrial control
6. 19 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc
