Signal Inputs 18.5 Inch 1366X768 Open Frame LCD Monitor

Brand :

Model NO: AXD-19OPN2P3-T2W

Screen Size: 18.5 inch

Display Resolution(pixel): 1366×768

Contrast Ratio: 1000:1

Brightness (CD/m^2): 250cd/m^2

Touch type: Projected-capacitive Touch

Application: Kiosks,Industrial machines,Automation,etc

Category:
Display Specifications
Display 18.5″ Color TFT Open Frame LCD  Monitor
Model Name AXD-19OPN2P3-T2W
Active Display Area (mm) 413.4 (H)x 234.0(V)
Pixel Pitch (mm) 0.300(H)x0.300(V)
Resolution (Pixel) 1366×768,16.7M (6 bit + Hi-FRC)
Brightness (CD/m^2) 250cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 20.5W typical, normal operation
Touch Screen
Type Capacitive Touch USB Connection
Surface Hardness >6H
Durability 50Million Touches
Transparency 88%~92%

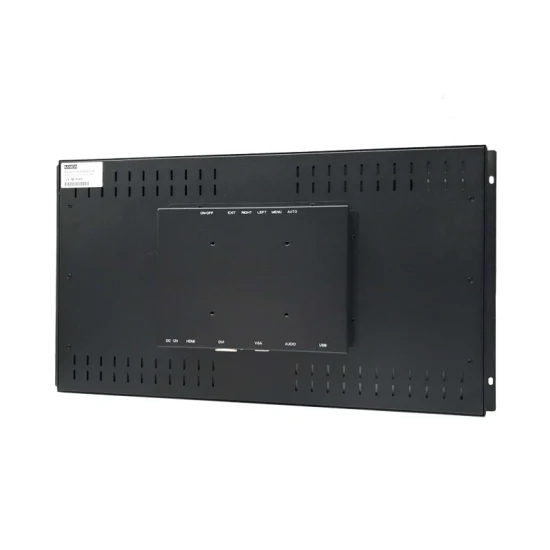

OSD Control On the back side

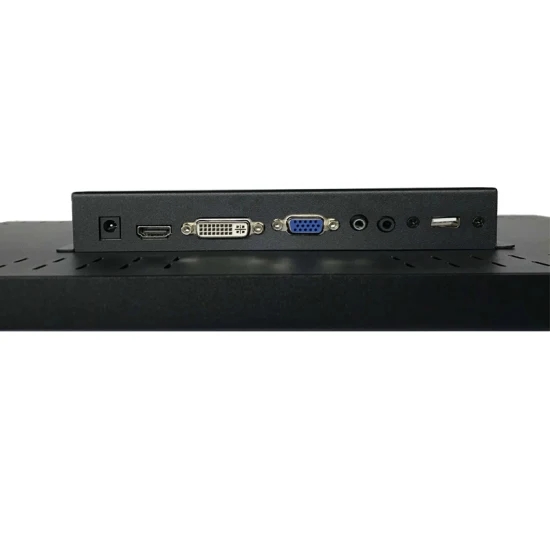

I/O Connectors 1x 12vDC JACK,1xVGA,1xhdmi;1xUSB for touch use only
Power Input 48W adapter with AC 100~240V input and 12V@4A Output
Mechanical Specifications
Construction Steel metal slim frame
Dimensions Subject to the drawings
Mounting fixing braket ;Embedded optional
Environment Specifications
Operating Temperature 0~50ºC
Storage Temperature -20~60ºC
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 18.5″  slim Monitor AXD-18OPN2P3-T2W  and power adapter


Features and Advantages

1. 18.5” New and Industrial A grade perfect panels with stable supply

2. Slim and simple open frame to mount all the LCD kits in one, which is easily installed

3. HDMI control board supports the displays working 24 hours

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. VGA HDMI DVI Signal inputs; capacitive touch screen with EETI chipset controller

6. 18.5 inch wide screen open frame monitor for application control, advertising player, campus and industrial terminal, etc
