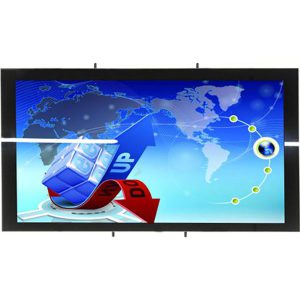

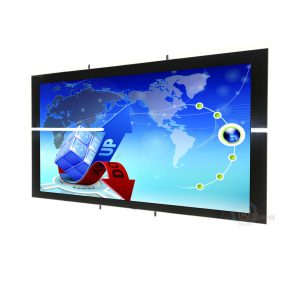

17.3 Inch Multi Touch LCD Screen 1920×1080 open frame display

Brand :

Model No.:AXD-17OPEXT3-TP3
Size: 17.3 inch
Resolution: 1920×1080
Brightness: 400cd/m2
Touch Type: capacitive touch
Signal Input: HDMI VGA inputs

Display Specifications
Display 17.3″ Multi touch LCD screen with open frame display
Model Name AXD-17OPEXT3-TP3 V2
Active Display Area (mm) 385.09 (H)x218.01(V)
Pixel Pitch (mm)
0.1989 x 0.1989
Resolution (Pixel) WSXGA (1920X1080)
Brightness (CD/m^2) 400cd/m^2
Contrast Ratio 600:1
Viewing Angle (CR >=10) 170/160
Power consumption 18.4 W typical, normal operation
Touch Screen
Pro-Capacitive Touch( Multi-touch)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,HDMI
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel metal housing
Dimensions 422.0x 247.0x 19.5(mm)
Mounting Embedded ,fixing holes on the back frame
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 17.3” Touch lcd Open frame FHD with VGA input and power adapter


Features and Advantages

1. New and Industrial A grade perfect panels with stable supply

2. HDMI control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA HDMI interfaces and the USB port for touch screen
6. 17.3’’ Open frame multi touch screen monitor for gaming , advertising player ,kiosk terminals etc

17.3" Multi Touch LCD Screen 1920x1080 open frame
