| Description | Screen Size:17’’
Screen format: 4:3
Display Resolution(pixel):1280X1024
Contrast Ratio:800:1
Brightness:300cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: IR Touch
Product status: Stock | Screen Size:12''
Screen format: 4:3
Display Resolution(pixel):800X600
Contrast Ratio:700:1
Brightness:400cd/m^2
Storage temperature : -30℃~85℃
Input signal: VGA DVI
Power Input: DC 12V
Product status: Stock | Model NO.:AXD-15OPN2P3-V6C
Size: 15.6 inch
Resolution: 1920x1080
Touch Type: capacitive touch
Front design: Flat design with IP65 sealing
Power in: DC 12V/24V options
Signal inputs: Display port, HDMI, VGA ets | Model NO: AXD-19OPT3P1
Screen Size: 19 Inch
Display Resolution(pixel): 1280x1024
Contrast Ratio:1000:1
Brightness (CD/m^2): 350 cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-10PPC-V2A
Screen Size: 10 Inch
Display Resolution(pixel): 1280x800
Contrast Ratio:800:1
Brightness (CD/m^2): 350cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-12PPC-C2
Screen Size: 12.1 Inch
Display Resolution(pixel): 800x600、1024x768
Contrast Ratio:500:1
Brightness (CD/m^2): 400 cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc |
| Content |

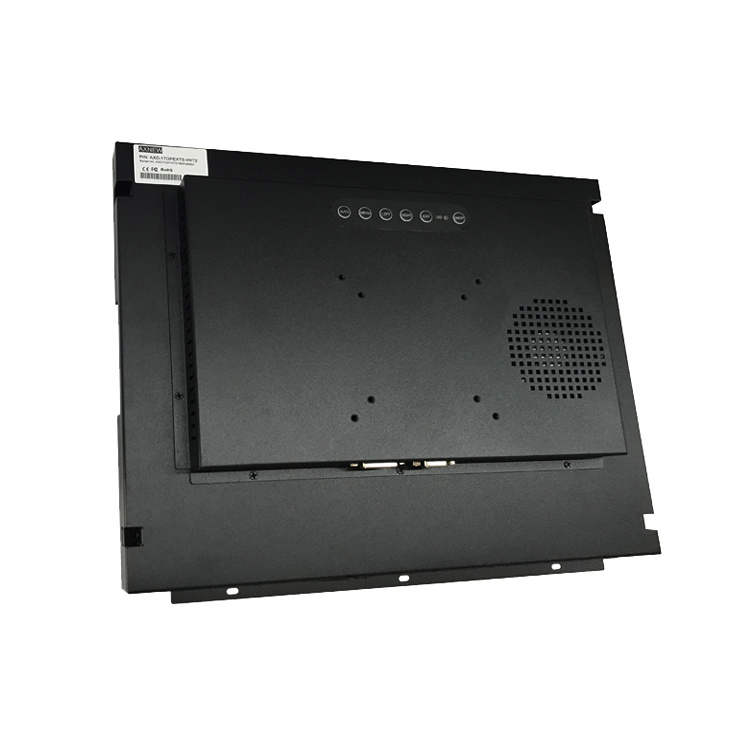

| Display
|
17" Color Industrial Monitor with IR touch (Anti-vandal)
|
| Model Name
|
AXD-17OPIPN1P1-IR
|
| Active Display Area (mm)
|
337.92(H)x270.33(V)
|
| Pixel Pitch (mm)
|
0.264(H)x0.264(V)
|
| Resolution (Pixel)
|
VGA (1280X1024) 262K/16.2MColor
|
| Brightness (CD/m^2)
|
300cd/m^2 |
| Contrast Ratio
|
1000:1
|
| Viewing Angle (CR >=10)
|
170/160
|
| Power consumption
|
25.8W typical, normal operation
|
| Touch Screen
|
IR Touch ;RS232/USB(Optional)
|
| OSD Control
|
On the back side
|
| I/O Connectors
|
1x12v,1XVGA,DVI-D(Optional)
|
| Power Input
|
DC 12V,4A48W
|
| Mechanical Specifications
|
|
| Construction
|
Aluminum front bezel &Black Color
|
| Dimensions
|
440.50 x 354.60x 56.80 (mm)
|
| Mounting
|
Embedded ,VESA Mounting Optional
|
| Power source
|
AC 100~240V/ 12V DC
|
| Environment Specifications
|
|
| Operating Temperature
|
-10~60℃
|
| Storage Temperature
|
-20~70℃
|
| Rating
|
Facilitate installation of the demolition,solid portfolio
|
| Ordering Information
|
17” IP Monitor with VGA input and power adapter
|
 |
|
Display Specifications
|
|
Display
|
12.1" Color TFT Industrial Monitor
|
|
Model Name
|
AXD-12OPIPPC-T1
|
|
Active Display Area (mm)
|
246 (H)x184.5(V)
|
|
Pixel Pitch (mm)
|
0.3075(H)x0.3075(V)
|
|
Resolution (Pixel)
|
SVGA (800X600) 262K/16.2M Color
|
|
Brightness (CD/m^2)
|
400cd/m^2 (1000cd/m^2 Optional)
|
|
Contrast Ratio
|
600:1
|
|
Viewing Angle (CR >=10)
|
160/140
|
|
Power consumption
|
15W typical, normal operation
|
|
Touch Screen
|
Resistive ;capacitive Touch ;RS232/USB(Optional)
|
|
OSD Control
|
On the back side
|
|
I/O Connectors
|
1x12v,1XVGA,DVI-D(Optional)
|
|
Power Input
|
DC 12V,4A 48W
|
|
Mechanical Specifications
|
|
|
Construction
|
IP 64 sealing front bezel &Black Color
|
|
Dimensions
|
351.0 x 265.0x 56.0(mm)
|
|
Mounting
|
Embedded ,Wall Mounting Optional
|
|
Power source
|
AC 100~240V/ 12V DC
|
|
Environment Specifications
|
|
|
Operating Temperature
|
-20~75℃
|
|
Storage Temperature
|
-30~80℃
|
|
Rating
|
Facilitate installation of the demolition,solid portfolio
|
|
Ordering Information
|
12.1” industrial Monitor with VGA input and power adapter
|
|
| Display Specifications |
|
| Display |
15.6" Color TFT industrial Touch monitor |
| Model Name |
AXD-15OPN2P3-V6C |
| Active Display Area (mm) |
344.16(H)x193.59(V) |
| Pixel Pitch (mm) |
0.1795(H)x0.1795(V) |
| Resolution (Pixel) |
1920x1080 |
| Brightness (CD/m^2) |
400nits |
| Contrast Ratio |
800:1 |
| Viewing Angle (CR >=10) |
170/160 |
| Power consumption |
10.6 W typical, normal operation |
| Touch Screen |
Pro-Capacitive touch panel( USB Controller) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,1xDisplay port, 1xHDMI |
| Power Input |
3 pin connector with 24V converter |
| Mechanical Specifications |
|
| Construction |
Steel housing & black Color, anti-vandal |
| Dimensions |
397.0x 25270.0x43.0(mm) |
| Mounting |
Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
-20~70℃ |
| Storage Temperature |
-30~70℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
15.6” industrial LCD with 2mm anti-vandal capacitive touch with display port Input |
 |
| Display Specifications |
|
| Display |
19" Color TFT Industrial saw touch screen LCD Monitor |
| Model Name |
AXD-19OPT3P1 |
| Active Display Area (mm) |
376.3 (H)x301.1(V) |
| Pixel Pitch (mm) |
0.294(H)x0.294(V) |
| Resolution (Pixel) |
SXGA (1280X1024) 16.7 M |
| Brightness (CD/m^2) |
350cd/m^2(Typ.) |
| Contrast Ratio |
1000:1 |
| Viewing Angle (CR >=10) |
170/160 |
| Power consumption |
18.5W typical, normal operation |
| Touch Screen |
|
| Type |
SAW Touch(Anti-vandal,IP6front bezel) |
| Surface Hardness |
6H |
| Durability |
50 Million Multi-touch |
| Transparency |
92% |
| I/O |
RGB analog(VGA)x1, DVI-Dx1;12V DC2.1 Jackx1;USBx1( for the touch connection only) |
| OSD |
6 Keys on the backside |
| Voltage Consumption |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation |
| Mechanical Specifications |
|
| Construction |
Steel chassis & Black Color |
| Dimensions |
455.5x 378.0X51.5 (mm) |
| Mounting |
Edge locking ,fixing holes embedded |
| Environment Specifications |
|
| Operating Temperature |
-10~60ºC |
| Storage Temperature |
-20~70ºC |
| Ordering Information |
19" touch Monitor 350nits With SAW Touch AXD-19OPT3P1 |
|
| Panel PC information |
|
| Model Number |
AXD-10PPC-V2A |
| 10'' Touch pc |
| Case/Bezel Color |
Sliver |
| TFT Type |
IPS LCD with LED backlight |
| Aspect ratio |
16:10 |
| Useful Screen Area |
220.6 mm x 139.6 mm |
| Touch Panel |
Industrial Resistive Flat Screen |
| Touch response time |
10ms (typical |
| Touch PC Dimensions |
262x 206x53.3 mm |
| Optimal (native) Resolution |
1280 x 800 |
| LCD panel Pixel pitch |
0.1695 x 0.1695 mm |
| LCD panel Colors |
262K/16.7 million |
| LCD panel Brightness |
350 cd/m2 |
| LCD panel Response Time |
25 ms |
| Contrast Ratio |
800:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±85° or 170° total |
| Vertical (up/down) |
85°(up), 85°(down) or 170° total |
| Output Interface |
COM/HDMI type/ Audio/Mic |
| Input Interface |
USB*3 |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 36W max |
| ECM (Embed Computer Module) |
Intel® processor N2930 (1.8GHz + NM10 Chipset);Jetway industrial board
SSD: 32G;Rom:4G(DDR3,max6G);
Operation System:Win7;10; inux
|
| Temperature |
Operating: -10°C to 70°C ;Storage -20°C to 80°C |
| Humidity (non condensing) |
Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions |
490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) |
Actual: 11kg ;Shipping: 15kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100 |
| Mechanical dimensions |
292x 206x53.3 mm |
| Drawings |
Please contact us for details |
Packaging & Delivery
| Packing details |
1x 10 inch Industrial Touch Panel PC ;
Packed in 5 pieces/carton with protection foam
Optional accessories:1x Power supply cable, 1x power adapter
|
| Delivery terms |
7- working days for stock products after receiving payments;
15 working days for order production
|
Features and Advantages
1. New and A grade lcd panel with other components on stable supply
2. Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 10'' monitor Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
|
|
Panel PC information
|
|
|
Model Number
|
AXD-12PPC-C2
|
|
12.1'' Industrial panel Touch pc
|
|
Case/Bezel Color
|
Black
|
|
TFT Type
|
Industrial LCD with LED backlight
|
|
Aspect ratio
|
4:3
|
|
Useful Screen Area
|
245.76 mm x 184.32mm
|
|
Touch Panel
|
Industrial capacitive Flat Screen
|
|
Touch response time
|
10ms (typical)
|
|
Touch PC Dimensions
|
309.1x 247.5 x50.0 mm
|
|
Optimal (native) Resolution
|
800x600; 1024x768
|
|
LCD panel Pixel pitch
|
0.296 x 0.296 mm
|
|
LCD panel Colors
|
262K/16.2 million
|
|
LCD panel Brightness
|
400 cd/m2
|
|
LCD panel Response Time
|
25 ms
|
|
Contrast Ratio
|
500:1
|
| Touch Type |
Projected -capacitive touch |
| Touch Features |
anti-vandal; 10 points multi-touch; free driver for O.S |
|
Viewing Angle ( Wide )
|
|
|
Horizontal (left/right)
|
±80° or 160° total
|
|
Vertical (up/down)
|
80°(up), 80°(down) or 160° total
|
|
Output Interface
|
DC*1;H-dmi*1;Audio*2;RS232(COM)*2;etc
|
|
Input Interface
|
USB*2.can extend
|
|
Net
|
Internet LAN
|
|
Watch Dog Technology
|
Support
|
|
Power Specification
|
External AC to DC power brick
|
|
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5¢)
|
|
AC to DC power brick input: 100-240 VAC, 50/60 Hz
|
|
Power dissipation: 36W max
|
|
ECM (Embed Computer Module)
|
Intel® I5-3317U (2.4GHz )
SSD: 64G ;Rom:4G(DDR3,max6G);
Operation System:Win10/8/7;Xp;Vista;Linux
|
|
Temperature
|
Operating: -10°C to 70°C ;Storage -20°C to 80°C
|
|
Humidity (non condensing)
|
Operating: 20%-90%; Storage: 10%-95%
|
|
Shipping Carton Dimensions
|
one piece/ per carton
|
|
Weight (approx.)
|
Actual: 5kg ;Shipping: 7 kg
|
|
Dimensions
|
|
Holes fixings
|
Vesa mounting 100x100; fixing button
|
|
Mechanical dimensions
|
309.1mmx 247.5mmx50.0mm
|
|
Drawings
|
Please contact us for details
|
Features and Advantages
1. New and A grade lcd panel with other components on stable supply
2. Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 12.1'' capacitive I3/I5 Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
 |
