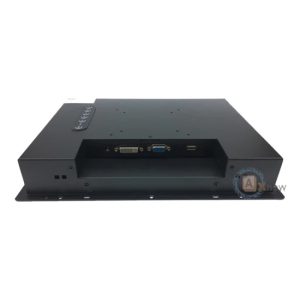

Waterproof IP65 Front IP65 Touch Screen Monitor 12.1 Inch 1024X768 Capacitive Panel Mount

Brand :

Model NO: AXD-12OPIPN1P2-T2

Screen Size: 12.1 Inch

Display Resolution(pixel): 1024×768

Contrast Ratio:700:1

Brightness (CD/m^2): 400cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Category:
Display Specifications
Display 12.1″ Color TFT IP65 front touchscreen Monitor
Model Name AXD-12OPIPN1P2-T2
Active Display Area (mm) 246.0 (H) x 184.5 (V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 1024X768
Brightness (CD/m^2) 400cd/m^2
Contrast Ratio 700:1
Viewing Angle (CR >=10) 160/140
Power consumption 10.3 W typical, normal operation
Touch Screen
Type Flat capacitive touchscreen USB
Durability 50 Million touches with 10 point multi-touch
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Aluminum Frame with rugged powered housing
Dimensions 315.6x 254.6x 54.8(mm)
Mounting Up-down, Left-right panelmount screws fixing holes ,VESA 75×75(100×100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70ºC
Storage Temperature -30~80ºC
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 12.1″ panelmount Monitor 1024X768 hd 400nits with HD VGA input and power adapter



Packaging & Delivery



Packing details

1x 12.1 inch panelmount IP65  touchscreen monitor

Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production



Features and Advantages



1. G121 New and Industrial A grade perfect panels with led backlight

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment

4. Rugged panel mount closed industrail design to protect the LCD screen

5. VGA DVI interfaces ;Pro-capacitive touch with eeti chipset ,usb port

6. 12.1 inch industrial touchscreen monitor for application control ,and industrial terminals etc
