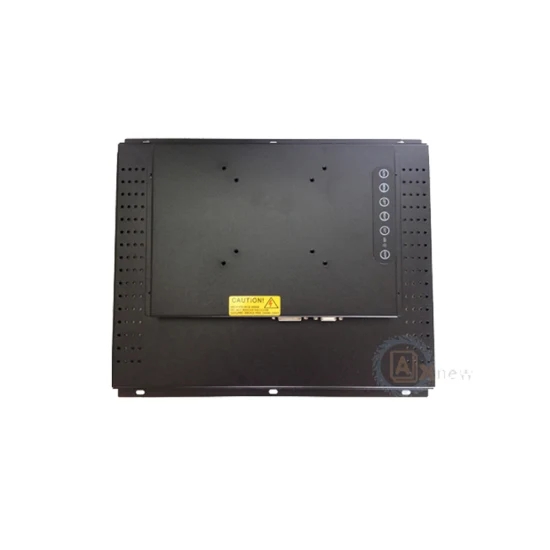

23.3W IP65 Resistive Touch LCD Monitor 800CD/M2 for Outdoor CNC 12VDC

Brand :

Model NO: AXD-15OPIPPM07-T1

Screen Size: 15 Inch

Display Resolution(pixel): 1024×768

Contrast Ratio:600:1

Brightness (CD/m^2): 800cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Category:



Display Specifications
Display 15″ Color TFT Panel mount touch Monitor
Model Name AXD-15OPIPPM07-T1
Active Display Area (mm) 304.1(H)x304.1(V)
Pixel Pitch (mm) 0.297(H)x0.297(V)
Resolution (Pixel) XGA (1024X768) 262K/16.2M Color
Brightness (CD/m^2) 800nits
Contrast Ratio 600:1
Viewing Angle (CR >=10) 160/140
Power consumption 23.3W typical, normal operation
Touch Screen Resistive;RS232/USB(Optional)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,@4A 48W
Mechanical Specifications
Construction Steel Metal chassis & Black Color



Dimensions 398.0 x 295.0x 48 (mm)
Mounting Edge fixing holes, vesa mounting on the backside
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -10~70ºC
Storage Temperature -20~80ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15″ Panel mount touch LCD Monitor with VGA input and power adapter
