12.1 Inch Panel Mount Waterproof LCD Screen 800X600 High Brightness

Brand :

Model NO: AXD-12OPIPN1P1-T1

Screen Size: 12.1 Inch

Display Resolution(pixel): 800X600

Contrast Ratio:700:1

Brightness (CD/m^2): 500cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Category:



Display Specifications
Display 12″ Color TFT Panelmount touchscreen Monitor
Model Name AXD-12OPIPN1P1-V2
Active Display Area (mm) 246.0 (H) x 184.5 (V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 800×600
Brightness (CD/m^2) 500cd/m^2
Contrast Ratio 700:1
Viewing Angle (CR >=10) 160/140
Power consumption 10.3 W typical, normal operation
Touch Screen
Type 5 wire Resistive touchscreen USB
Durability 35 Million touches
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Aluminum Frame with rugged powered housing
Dimensions 315.6x 254.6x 54.8(mm)

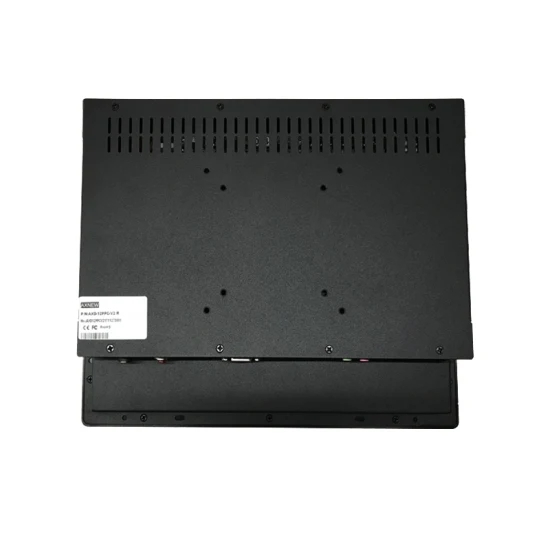

Mounting Up-down, Left-right panelmount screws fixing holes ,VESA 75×75(100×100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70ºC
Storage Temperature -30~80ºC
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 12.1″ panelmount Monitor 500nits with HD VGA input and power adapter



Packaging & Delivery



Packing details 1x 12.1 inch panelmount touchscreen monitor

Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production



Features and Advantages



1. G121 New and Industrial A grade perfect panels with led backlight

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment

4.Rugged panel mount closed industrail design to protect the LCD screen

5. VGA DVI interfaces ;5 wire resistive touch screen,usb port

6. 12.1 inch industrial touchscreen monitor for application control ,and industrial terminals etc
