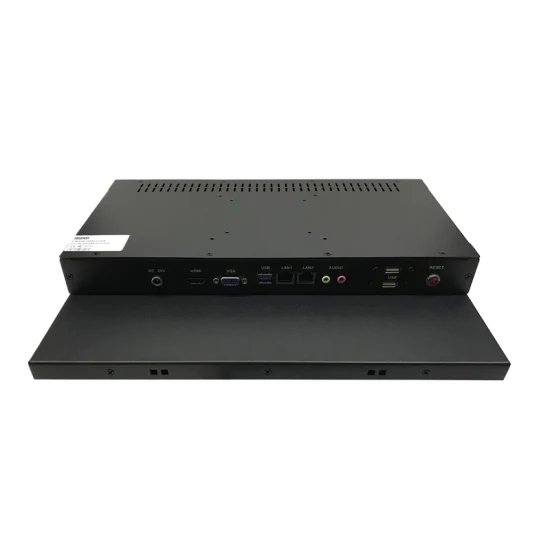

Industrial 17 Inch 300CD/M2 1280X1024 Android Touch Panel PC

Brand :

Model NO: AXD-17PPC-A2 R
Screen Size: 17 Inch
Display Resolution(pixel): 1280×1024
Contrast Ratio:1000:1
Brightness (CD/m^2): 300cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-17PPC-A2 R
17” Andriod Touch panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 5:4
Useful Screen Area 337.920(H)x270.336(V)
Touch Panel 5 wire resisitive touch
Touch response time 10ms (typical
LCD panel Pixel pitch 0.297 x 0.297 mm
LCD panel Colors 16.7million
LCD panel Brightness 300cd/m2
LCD panel Response Time 8 ms
Contrast Ratio 1000:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 80°(up), 80°(down) or 160° total
Output Interface VGA/H-dmi type/ AV/Rs232 Options
Input Interface USB*3
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module) Quad Core ARM CORTEX-A 9
DDR3: 2G; NAND :8G
Operation System:Android 4.42
Temperature Operating: -10°C to 60°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Weight (approx.) Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings Vesa mounting 100×100
Drawings Please contact us for details
