15 Inch 1024X768 Capacitive Fanless Touch Panel PC 500CD/M2 with Wide Voltage 24V

Brand :

Model NO: AXD-15PPC-V6A

Screen Size: 15 Inch

Display Resolution(pixel): 1024×768

Contrast Ratio:700:1

Brightness (CD/m^2): 500cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-15PPC-V6A
15” Industrial panel Touch pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Useful Screen Area 304.8×228.6mm
Touch Panel Industrial 5 wire Resistive Flat Screen
Touch response time 10ms (typical)
Touch PC Dimensions 309.1x 247.5 x50.0 mm
Optimal (native) Resolution 1024×768
LCD panel Pixel pitch 0.294 x 0.294 mm
LCD panel Colors 16.2 million
LCD panel Brightness 500 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 700:1
Viewing Angle ( Wide )
Horizontal (left/right) ±80° or 160° total
Vertical (up/down) 60°(up), 80°(down) or 140° total

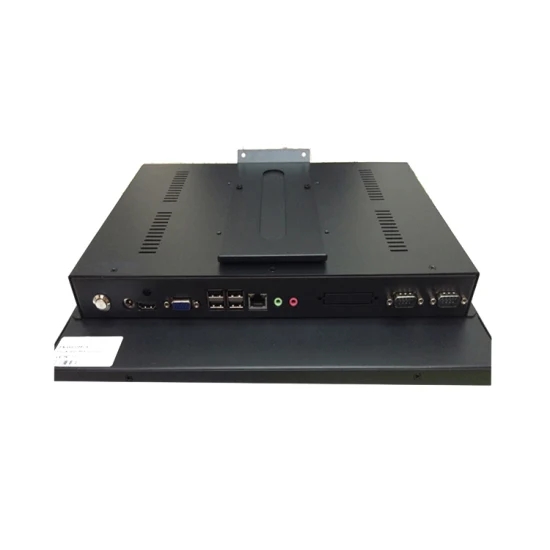

Output Interface DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc
Input Interface USB*4.can extend
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module) Intel® J1900 (2.4 GHz )

SSD: 64G ;Rom:4G(DDR3,max6G);

Operation System:Win10/8/7;Linux

Temperature Operating: -10°C to 60°C ;Storage -20°C to 80°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions one piece/ per carton
Weight (approx.) Actual: 5kg ;Shipping: 7 kg
Dimensions

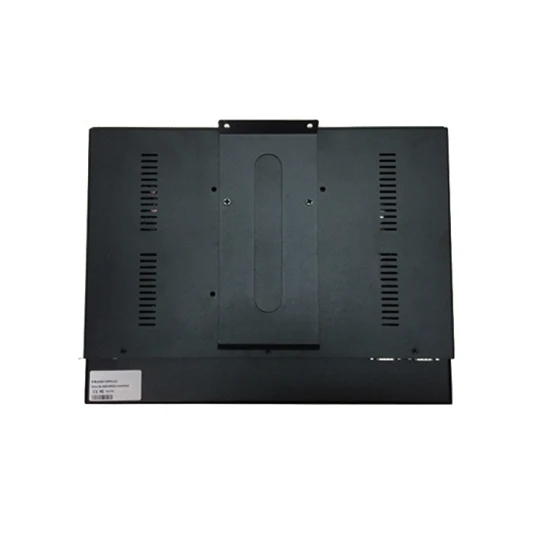

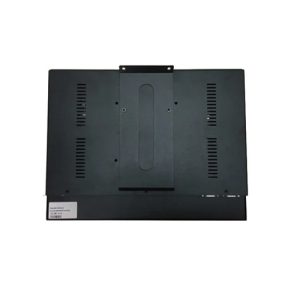

Holes fixings Vesa mounting 100×100; fixing button
Mechanical dimensions 376.1mmx 300.0mmx50.0mm
Drawings Please contact us for details



Features and Advantages

1. New and A grade lcd panel with other components on stable supply

2. Resistive touchscreen makes the touch sense perfectly

3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option

6.15”resistive Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
