| Display Specifications | |
| Display |
10.4″ Color TFT LED industrial touch Monitor |
| Model Name |
AXD-10OPN1P3IR-T4 |
| Active Display Area (mm) |
211.2(H)x158.4(V) |
| Pixel Pitch (mm) |
0.264(H)x0.264(V) |
| Resolution (Pixel) |
VGA (800X600)16.2M/6 bit + FRC |
| Brightness (CD/m^2) |
400cd/m^2 |
| Contrast Ratio |
700:1 |
| Viewing Angle (CR >=10) |
160/140 |
| Power consumption |
9.8W typical, normal operation |
| Touch Screen |
IR infrared touch screen with IP65 front bezel, please request if needed |

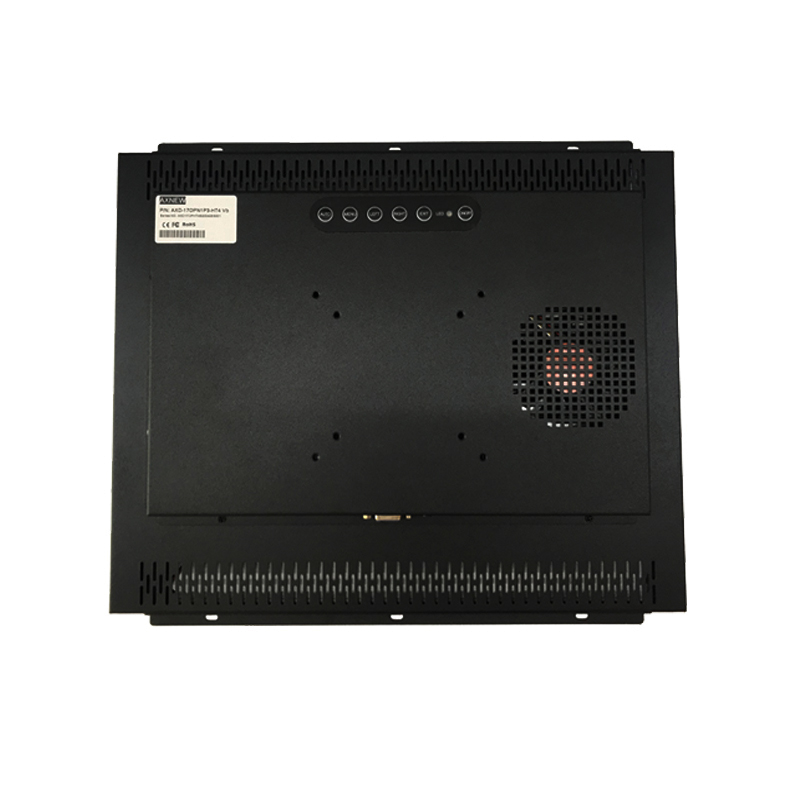

| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D |
| Power Input |
DC 12V,4A48W |
| Mechanical Specifications |
|
| Construction |
Steel open frame & black Color |
| Dimensions |
Subject to the updated drawings |
| Mounting |
Edge fixing holes, Vesa Mounting |
| Power source |
AC 100~240V/ 12V4AAC/DC adapter |
| Environment Specifications |
|
| Operating Temperature |
-10~80℃ |
| Storage Temperature |
-30~85℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
