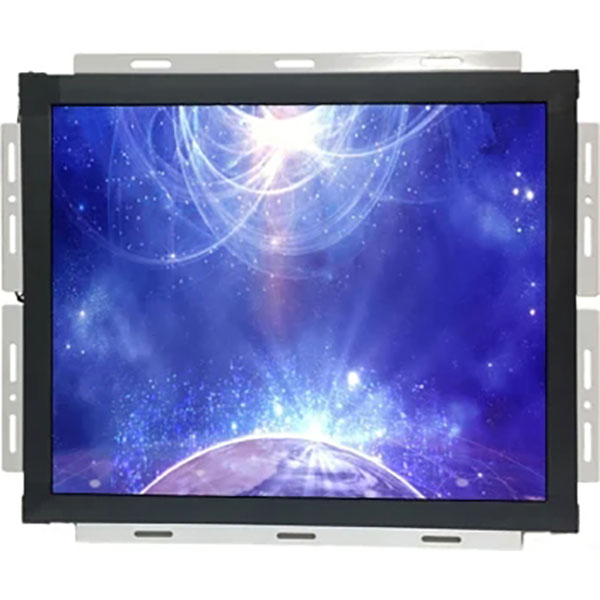

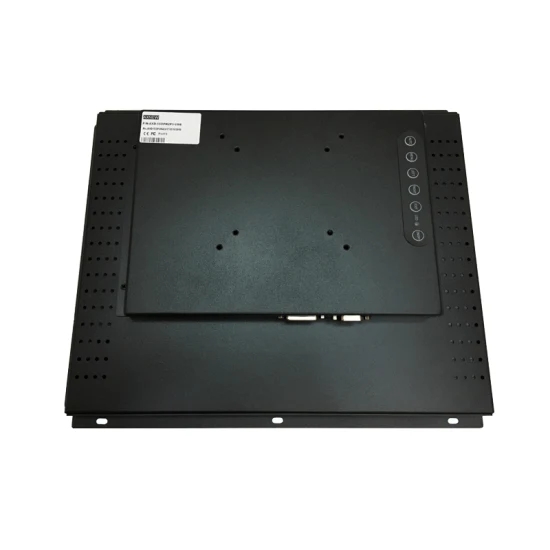

Mini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen

Brand :

Model NO: AXD-15OPT3P1(VGA/DVI)
Screen Size: 15 Inch
Display Resolution(pixel): 1024×768
Contrast Ratio:500:1
Brightness (CD/m^2): 250/350 cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Display Specifications

Display

15″ Color TFT Industrial touch Monitor

Model Name

AXD-15OPT3P1

Active Display Area (mm)

305.7(H)x229.7(V)

Pixel Pitch (mm)

0.297(H)x0.297(V)

Resolution (Pixel)

VGA (1024×768)6 bit + FRC

Brightness (CD/m^2)

250/350 cd/m^2

Contrast Ratio

500:1

Viewing Angle (CR >=10)

160/140

Power consumption

28 W typical, normal operation

Touch Screen

SAW Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V, 4A 48W

Mechanical Specifications

Construction

Steel metal housing & black Color

Dimensions

359.0x 270.0×46.3(mm)

Mounting

Embedded ,vesa75x75;100×100 Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-10~70ºC

Storage Temperature

-30~80ºC

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

15″SAW  touch monitor with VGA Input and power adapter



Features and Advantages
1. New and A grade perfect panels with wide viewing angle
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environmen
5. VGA DVI interfaces; SAW long use life with USB/ RS232 touch controller
6. 15 inch touch open frame monitor for application control , advertising player , campus and industrial terminals etc



Mini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen



Mini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen



Quick Comparison

SettingsMini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen removeWsxga 400CD/M2 Multi Touch Screen Monitor 48W 17 Digital Display remove17 Inch 1280x1024 Rack Mount Slim Kiosk LCD Monitor 4:3 IR water proof IP65 Touch Screen remove15.6 Inch full HD industrial touch monitor remove12.1 Inch Color TFT Screen black housing 4:3 mount friendly Slim LCD Monitor remove10.1 Inch IPS industrial touch monitor remove
NameMini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen removeWsxga 400CD/M2 Multi Touch Screen Monitor 48W 17 Digital Display remove17 Inch 1280x1024 Rack Mount Slim Kiosk LCD Monitor 4:3 IR water proof IP65 Touch Screen remove15.6 Inch full HD industrial touch monitor remove12.1 Inch Color TFT Screen black housing 4:3 mount friendly Slim LCD Monitor remove10.1 Inch IPS industrial touch monitor remove
ImageMini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide ScreenWsxga 400CD/M2 Multi Touch Screen Monitor 48W 17′ ′ Digital Display17" 1280x1024 Rack Mount Slim Kiosk LCD Monitor 4:3 IR water proof IP65 Touch Screen15.6 inch full HD industrial touch monitor12.1 inch Color TFT Screen black housing 4:3 mount friendly Slim LCD Monitor10.1 inch IPS industrial touch monitor
SKU
Rating
Price
Stock
Availability
Add to cart

DescriptionModel NO: AXD-15OPT3P1(VGA/DVI) Screen Size: 15 Inch Display Resolution(pixel): 1024x768 Contrast Ratio:500:1 Brightness (CD/m^2): 250/350 cd/m^2 Touch type: Resistive/Capacitive Touch screen Application: Kiosks,Industrial machines,Automation,etcModel NO: AXD-17OPEXT3-TP3 Screen Size: 17.3 Inch Display Resolution(pixel): 1920x1080 Contrast Ratio:600:1 Brightness (CD/m^2): 400 cd/m^2 Touch type: Resistive/Capacitive Touch screen Application: Kiosks,Industrial machines,Automation,etcScreen Size:17’’ Screen format: 4:3 Display Resolution(pixel):1280X1024 Contrast Ratio:800:1 Brightness:300cd/m^2 Storage temperature : -10℃~70℃ Input signal: VGA DVI Power Input: DC 12V Touch Type: IR Touch Product status: StockModel NO.:AXD-15OPN2P3-V6C Size: 15.6 inch Resolution: 1920x1080 Touch Type: capacitive touch Front design: Flat design with IP65 sealing Power in: DC 12V/24V options Signal inputs: Display port, HDMI, VGA etsScreen Size:12'' Screen format: 4:3 Display Resolution(pixel):800X600 Contrast Ratio:700:1 Brightness:200/ 400cd/m^2 Storage temperature : -30℃~85℃ Input signal: VGA DVI Power Input: DC 12V Product status: StockModel No.:AXD-10OPN1P4-T5C2(16:10) Size: 10.1 inch Resolution: 1280x800 Touch type: capacitive touch Signal inputs: VGA, HDMI Power in: 12V / 24V options Mechanical design: flat with IP65 sealing on the front
Content

Display Specifications

Display

15" Color TFT Industrial touch Monitor

Model Name

AXD-15OPT3P1

Active Display Area (mm)

305.7(H)x229.7(V)

Pixel Pitch (mm)

0.297(H)x0.297(V)

Resolution (Pixel)

VGA (1024x768)6 bit + FRC

Brightness (CD/m^2)

250/350 cd/m^2

Contrast Ratio

500:1

Viewing Angle (CR >=10)

160/140

Power consumption

28 W typical, normal operation

Touch Screen

SAW Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V, 4A 48W

Mechanical Specifications

Construction

Steel metal housing & black Color

Dimensions

359.0x 270.0x46.3(mm)

Mounting

Embedded ,vesa75x75;100x100 Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-10~70ºC

Storage Temperature

-30~80ºC

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

15"SAW  touch monitor with VGA Input and power adapter

  Features and Advantages
1. New and A grade perfect panels with wide viewing angle
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environmen
5. VGA DVI interfaces; SAW long use life with USB/ RS232 touch controller
6. 15 inch touch open frame monitor for application control , advertising player , campus and industrial terminals etc
  Mini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen   Mini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen
Display Specifications
Display 17.3" Touch LCD Monitor (LED)
Model Name AXD-17OPEXT3-TP3
Active Display Area (mm) 385.09 (H)x218.01(V)
Pixel Pitch (mm) 0.1989 x 0.1989
Resolution (Pixel) WSXGA (1920X1080)
Brightness (CD/m^2) 400cd/m^2
Contrast Ratio 600:1
Viewing Angle (CR >=10) 170/160
Power consumption 18.4 W typical, normal operation
Touch Screen Pro-Capacitive Touch( Multi-touch)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,HDMI(Optional)
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel metal housing
Dimensions 428.0x 265.0x 42.0(mm)
Mounting Embedded ,fixing holes on the back frame
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -10~60ºC
Storage Temperature -20~70ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 17.3" Touch lcd Open frame FHD with VGA input and power adapter


Packaging & Delivery

Packing details

1x 17.3 inch capacitive touch monitor
Packed in 3 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 3-4 working days for stock products after receiving payments; 15 working days for order production


Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. VGA hDMI interfaces and the optional port for touch screen

5. 17.3'' Open frame monitor for gaming , advertising player ,kiosk terminals etc

Wsxga 400CD/M2 Multi Touch Screen Monitor 48W 17′ ′ Digital Display Wsxga 400CD/M2 Multi Touch Screen Monitor 48W 17′ ′ Digital Display Wsxga 400CD/M2 Multi Touch Screen Monitor 48W 17′ ′ Digital Display
Display 17" Color Industrial Monitor with IR touch (Anti-vandal)
Model Name AXD-17OPIPN1P1-IR
Active Display Area (mm) 337.92(H)x270.33(V)
Pixel Pitch (mm) 0.264(H)x0.264(V)
Resolution (Pixel) VGA (1280X1024) 262K/16.2MColor
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 800:1
Viewing Angle (CR >=10) 160/160
Power consumption 25.8W typical, normal operation
Touch Screen IR Touch ;RS232/USB(Optional)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D(Optional)
Power Input DC 12V,4A48W
Mechanical Specifications
Construction Aluminum front bezel &Black Color
Dimensions 440.50 x 354.60x 56.80 (mm)
Mounting Embedded ,VESA Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature 0~80℃
Storage Temperature 0~80℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 17” IP Monitor with VGA input and power adapter
  17" 1280x1024 Rack Mount Slim Kiosk LCD Monitor 4:3 IR water proof IP65 Touch Screen
Display Specifications
Display 15.6" Color TFT industrial Touch monitor
Model Name AXD-15OPN2P3-V6C
Active Display Area (mm) 344.16(H)x193.59(V)
Pixel Pitch (mm) 0.1795(H)x0.1795(V)
Resolution (Pixel) 1920x1080
Brightness (CD/m^2) 400nits
Contrast Ratio 800:1
Viewing Angle (CR >=10) 170/160
Power consumption 10.6 W typical, normal operation
Touch Screen Pro-Capacitive touch panel( USB Controller)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,1xDisplay port, 1xHDMI
Power Input 3 pin connector with 24V converter
Mechanical Specifications
Construction Steel housing & black Color, anti-vandal
Dimensions 397.0x 25270.0x43.0(mm)
Mounting Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -30~70℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15.6” industrial LCD with 2mm anti-vandal capacitive touch with display port Input
  15.6 inch full HD industrial touch monitor
Display Specifications
Display 12.1" Color TFT Industrial Monitor
Model Name AXD-12OPIPN1UP2-VU
Active Display Area (mm) 246 (H)x184.5(V)
Pixel Pitch (mm) 0.3075(H)x0.3075(V)
Resolution (Pixel) SVGA (800X600) 262K/16.2M Color
Brightness (CD/m^2) 200cd/m^2 ; 400cd/m^2 (Optional)
Contrast Ratio 700:1
Viewing Angle (CR >=10) 160/140
Power consumption 15W typical, normal operation
Touch Screen Resistive ;IR Touch ;RS232/USB(Optional)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D(Optional)
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction IP 64  front bezel &Black Color
Dimensions 351.0 x 265.0x 56.0(mm)
Mounting Embedded ,Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -10~80℃
Storage Temperature -30~85℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 12.1” IP Monitor with VGA input and power adapter


Display Specifications

Display

10.1" TFT IPS LCD with LED Backlight

Model Name

AXD-10OPN1P4-T5C2 (16:10)

Active Display Area (mm)

216.96(H) x 135.6 (V)

Pixel Pitch (mm)

0.1695 (H) x 0.1695 (V)

Resolution (Pixel)

SVGA (1280X800) 16.7M Color

Brightness (CD/m^2)

350cd/m^2

Contrast Ratio

800:1

Viewing Angle (CR >=10)

170/170

Power consumption

8.52W typical, normal operation

Touch Screen

Capacitive touch panel with eeti chipset

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,HDMI

Power Input

DC 12V,4A 48W, DC24V options

Mechanical Specifications

Construction

rugged open frame with edge fixings

Dimensions

290 x 211 x 46 (mm)

Mounting

panel mount with clamps

Power source

AC 100~240V/ 12V DC; 24VDC

Environment Specifications

Operating Temperature

-10~65℃

Storage Temperature

-20~70℃

Rating

Facilitate installation of the demolition, solid portfolio

Ordering Information

10.1”  industrial  touch display with IP sealing



Packaging & Delivery



Packing details

1x 10.1 inch Industrial Touch Screen Monitor;  Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power  adapter

Delivery terms

7- working days for stock products after receiving payments;  15 working days for order production
