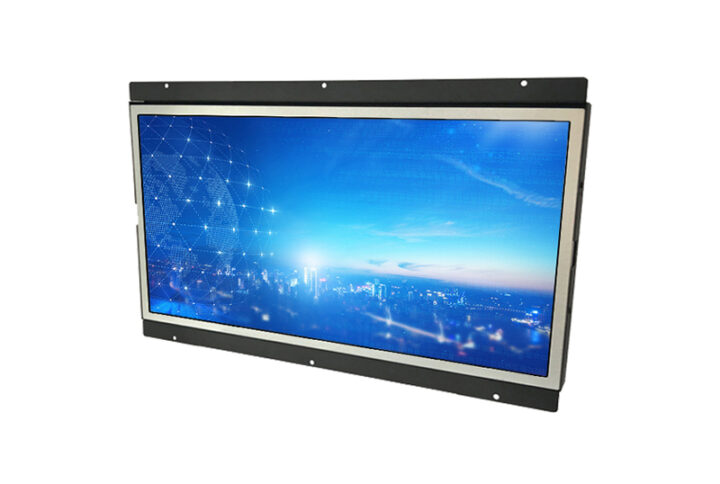

32 Inch Open Frame Touch Monitor with VGA hdmi for multi Touch advertising player

Model NO: AXD-32OPPM1- T2
Screen Size: 31.5 Inch
Display Resolution(pixel): 1920X1080
Contrast Ratio: 1500:1
Brightness (CD/m^2): 300cd/m^2
Touch type: Projected Capacitive with Multi-touch ,free driver
Application: Payment system, advertising player, Automatic Kiosks etc

Display Specifications
Display 31.5″  Color TFT Open Frame touch Monitor
Model Name AXD-32OPPM1- T2
Active Display Area (mm) 698.4 (H)x392.85(V)
Pixel Pitch (mm) 0.363(H)x0.363(V)
Resolution (Pixel) FHD1920X1080) 16.7 M (8 bit )
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 1500:1
Viewing Angle (CR >=10) 178/178
Power consumption 35W typical, normal operation
Touch Screen
Touch Type. Projected-capacitive touch with 10 touch points
Touch Solution G+G Cover glass
Touch hardness >6H
I/O Connectors 1x12v DC Input,1XVGA,HDMI
Power Input DC 12V,5A 60W
Mechanical Specifications
Construction Steel chassis & Black Color
Dimensions 755.1x 450.7x 60 (mm)
Mounting Edge locking ,fixing holes embedded
Power source AC 100~240V/ 12V DC-5A
Environment Specifications
Operating Temperature 0~50℃
Storage Temperature -20~60℃
Rating Facilitate installation of the demolition, solid portfolio


Features and Advantages

  1. 5” FHD with super color high contrast screen with A grade
  2. Multiple control board with HDMI, VGA, DVI support the displays working 24 hours
  3. Open frame with flat design with capacitive touch anti-vandal glass to protect the screen from destroy, water-proof on the surface
  4. Economic solution for some advertising display, kiosks devices, payment terminals,etc


Packaging & Delivery

Packing details 1x 31.5 inch Industrial Touch Screen Monitor;

Packed in 1 piece/carton with protection foam

Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power


Delivery terms 7- working days for stock products after receiving payments;  15 working days for order production
