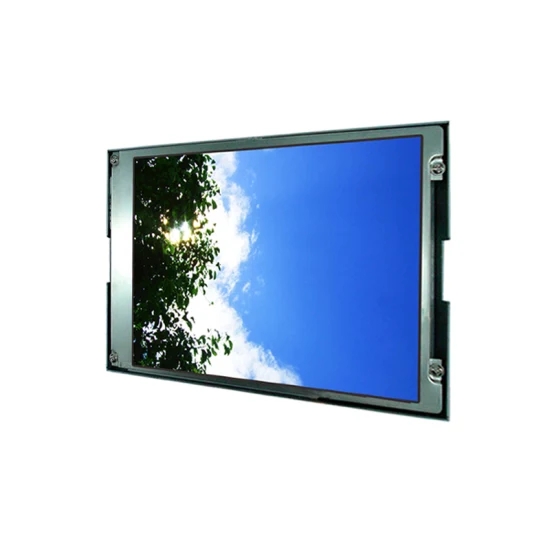

8.4 Inch open frame monitor

Brand :

Model:AXD-08OPN1P1

Size:8.4inch

Resolution:800×600

Contrast:500:1

Brightness:450 cd/m^2

Storage Temp.:-30℃~80℃

Signal inputs:VGA+DVI

Power:DC 12V

Category:
Display Specifications
Display 8.4″ Color TFT Industrial Open Frame LCD monitor
Model Name
AXD-08OPN1P1(VGA)
Active Display Area (mm) 170.4(H)x127.8(V)
Pixel Pitch (mm) 0.264(H)x0.264(V)
Resolution (Pixel) VGA (800X600)6 bit + FRC
Brightness (CD/m^2) 450 cd/m^2
Contrast Ratio 600:1
Viewing Angle (CR >=10) 160/140
Power consumption 8.5 W typical, normal operation
Touch Screen Resistive touch
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D(Optional)
Power Input DC 12V, 4A 48W
Mechanical Specifications
Construction Steel metal housing & black Color
Mounting Embedded ,vesa75x75;100×100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -30~80℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 8.4 inch Open Framemonitor with VGA Input and power adapter

8.4 inch open frame monitor
