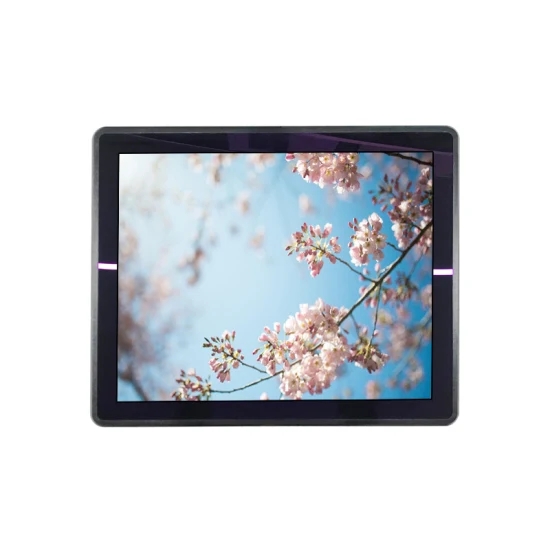

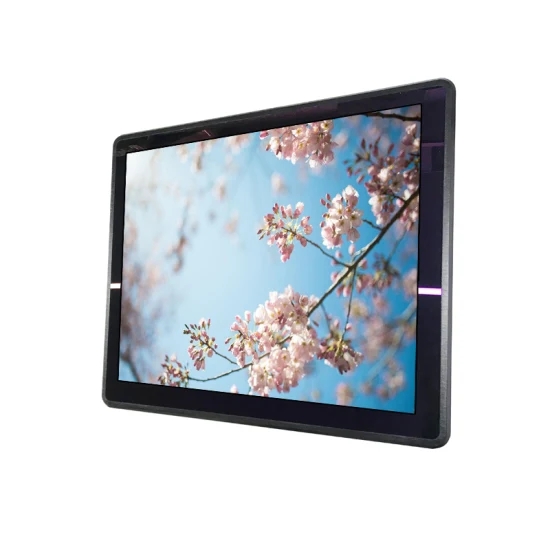

300nits 1280X1024 Capacitive LCD Touch Monitor 19.5W Industrial Open Frame Monitor

Brand :

Model NO: AXD-19OPN1P1-C1

Screen Size: 19 Inch

Display Resolution(pixel): 1280×1024

Contrast Ratio: 1000:1

Brightness (CD/m^2): 300cd/m^2

Touch type: Projected Capacitive

Application: Kiosks,Industrial machines,Automation,etc

Category:
Display Specifications
Display 19″ Color TFT Projected capacitive touch open frame monitor
Model Name AXD-19OPN1P1-C1
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch(mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 1280X1024
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/170
Power consumption 19.5W typical, normal operation
Touch Screen 3.9mm projected-capacitive Touch;USB Port;eeti
Construction G+G Cover glass
Durability 50 Million touches(min)
OSD Control On the back side

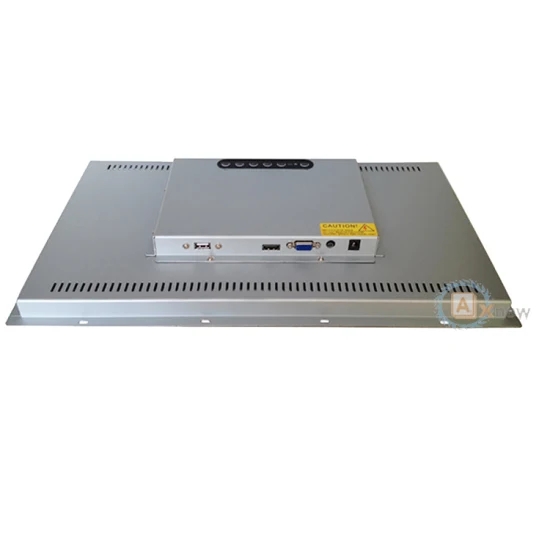

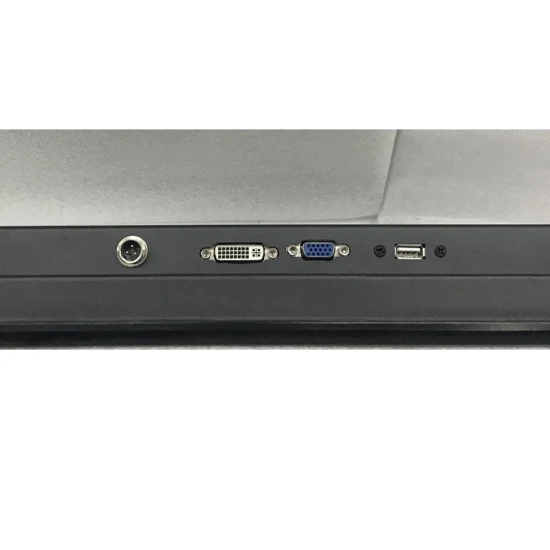

I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Roasted Metal Frame
Dimensions 432.0 x 339.0×49.8 (mm)
Mounting VESA 100X100
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -5~60ºC
Storage Temperature -70~70ºC
Ordering Information 19″ projected-capacitive touch monitor
