Display Specifications |
|
Display |
15″ Color TFT Open Frame led Monitor with dimming control |
Model Name |
AXD-15OPGR-TD1 |
Active Display Area (mm) |
304.1(H)x304.1(V) |
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
Resolution (Pixel) |
XGA (1024X768)16.2MColor |
Brightness (CD/m^2) |
500 NITS |
Contrast Ratio |
800:1 |
Viewing Angle (CR >=10) |
176/176 IPS |
Power consumption |
13.3W typical, normal operation |
Touch Screen |
Resistive; Pro-capacitive;RS232/USB(Optional) |
OSD Control |
OSD on the backside, dimming options for adjusting brightness |
I/O Connectors |
1x12v,1XVGA ,DVI options. |
Power Input |
DC 12V,4A48W |
Mechanical Specifications |
|
Construction |
Steel metal housing & Galvanized /Black color |
Dimensions |
329.0 x 293.0x 29.0 (mm) |
Mounting |
Edge locking |
Power source |
AC 100~240V/ 12V DC |
Environment Specifications |
|
Operating Temperature |
-20-70℃ |
Storage Temperature |
-30~80℃ |
Rating |
Facilitate installation of the demolition,solid portfolio |
Ordering Information |
15” OP IPS Monitor with VGA input and dimming control for brightness |

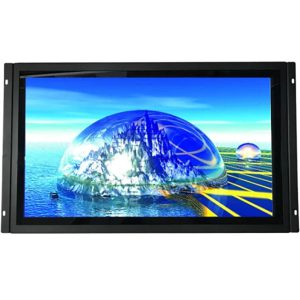

15 Inch IPS industrial LED Backlight LCD Monitor with resistive Touchscreen
Brand :
Model: AXD-15OPGR-TD1
Screen Size:15’’
Screen format: 4:3
Display Resolution(pixel):1024×768
Contrast Ratio:800:1
Brightness:500cd/m^2
Storage temperature : -30℃~80℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: Resistive touch
Product status: Stock
