| LCD monitor information |
|
| Model Number |
AXD-08OPN1P3-T3 C(VGA) |
| 8” Touch LCD display |
|
| Type |
8 ” TFT Active Matrix LCD with LED Backlight |
| Active Display Area(mm) |
162.0(H)x121.5(V) |
| Pixel Pitch(mm) |
0.213(H)x0.213(V) |
| Resolution |
800 x 600, |
| Contrast Ratio |
500:1 (typ.) |
| Display Color |
16.7 M colors |
| Brightness |
250(Typ) |
| Viewing Angles |
140(H);120(V) |
| Response Time |
10ms/15ms |
|
| Environmental Temperature |
|
| Operating Temperature |
-10ºC~70ºC |
| Storage Temperature |
-20ºC~80ºC |
|
| Signal Input |
|
| PC |
RGB analog; HDMI |
| Other connections |

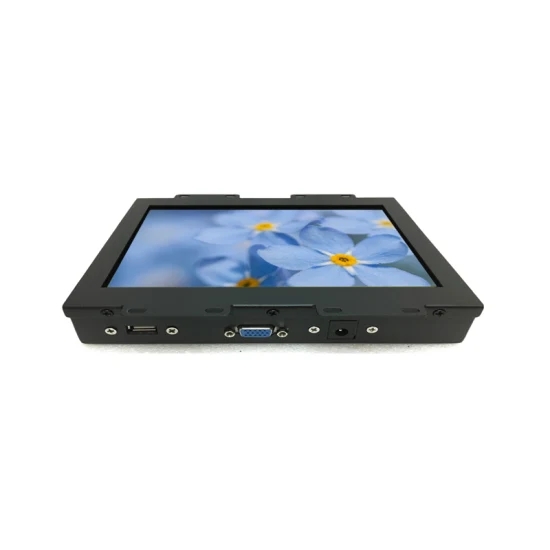

1X DC Jack 2.1; 1xUSB for touch connection |
|
| Power Specification |
|
| Voltage Consumption |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation |
|
|
| Touch Screen Optional |
|
| touch panel Type |
Pro-Capacitive Touch screen anti-vandal |
| Touch interface |
USB |
| Transmittance |
>=92% |
| Input voltage |
3.3V-5.5V |
| working temperature |
-10ºC~65ºC |
| touch kits |
>=50,000,000 times in one position |
|
| Dimensions |
|
| Construction |
Rugged chassis & Black Color |
| Holes fixings |
Right Left fixing holes |
| Mechanical dimensions |
223.0 x 158.0x 31.0 (mm) |
| Drawings |
Please contact us for details |
