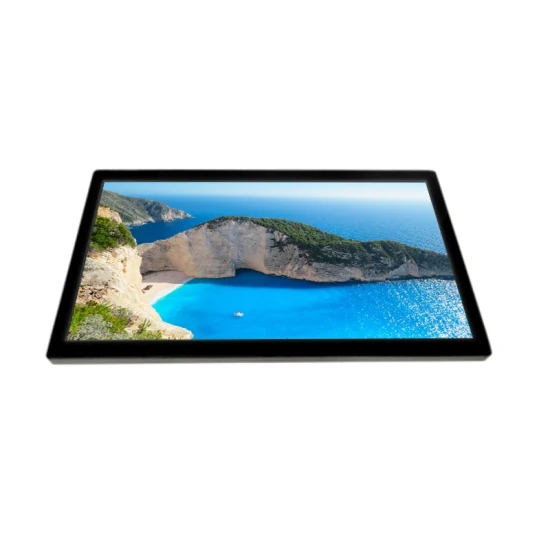

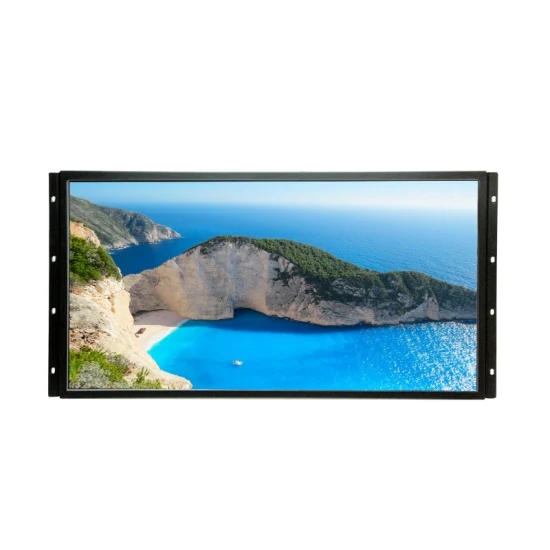

24 Inch PRO Capacitive Open Frame Touch Screen Monitor 16/9 Widescreen for Devices

Brand :

Model NO: AXD-24OPN1P1-VUC

Screen Size: 24 Inch

Display Resolution(pixel): 1920×1080

Contrast Ratio: 3000:1

Brightness (CD/m^2): 300cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 24″ pro-capacitive touchscreen monitor
Model Name AXD-24OPN1P1-VUC
Active Display Area (mm) 531.36 (H) x 298.89 (V)
Pixel Pitch (mm) 0.2767(H) x 0.2767 (V)
Resolution (Pixel) 1920X1080
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 3000:1
Viewing Angle (CR >=10) 178/178
Power consumption 28W typical, normal operation
Touch Screen pro-apacitive USB
Surface Hardness 6H
Durability 60million touches (min)
Touch construction G+G (3mm) thickness
OSD Control On the back side

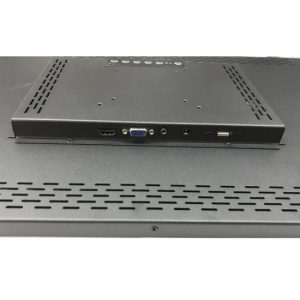

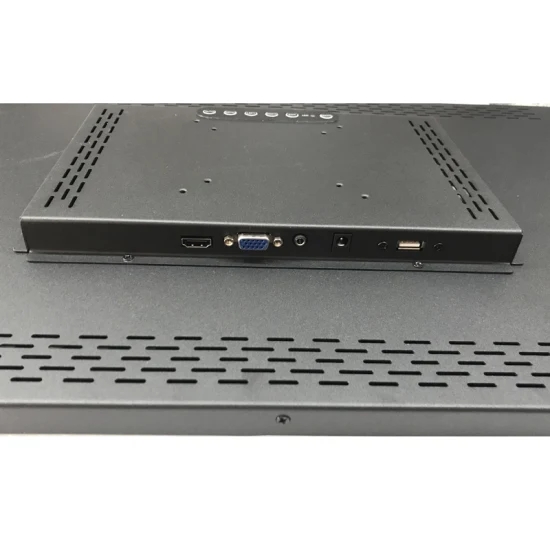

I/O Connectors 1x12v,1XVGA,1xHDMI,1XAV
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Roasted Metal Frame
Dimensions 572.7x 353.7x 38.7(mm)

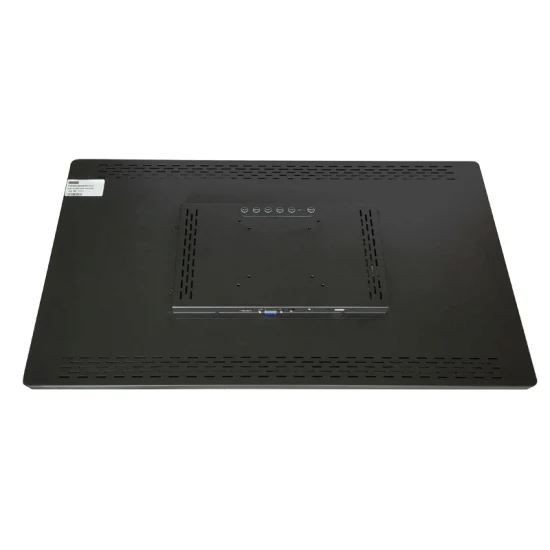

Mounting backside fixing holes ,VESA 75×75(100×100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature 0~50ºC
Storage Temperature -20~60ºC
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information AXD-24OPN1P1-VUC 24”pro- capacitive touch monitor hdmi


Packaging & Delivery

Packing details 1x 24 inch capacitive touch monitor

Packed in 2 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7working days for stock products after receiving payments; 15 working days for order            production


Features and Advantages

1. 24 inch New and perfect panels with stable supply

2. Slim design to protect the LCD screen

3. HDMI,VGA,AV signal inputs; 3mm thickness capacitive touch screen with USB touch port

4. 24 inch touchscreenmonitor with flat capacitive touchscreen for advertising player ,campus and industrial terminals ,kiosk, gaming,medical devices ,etc
