| Display Specifications | |
| Display | 10.4″ Color TFT Projected capacitive touch open frame monitor |
| Model Name | AXD-10OPN1P1-C1 |
| Active Display Area (mm) | 211.2 (H) x 158.4 (V) |
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) |
| Resolution (Pixel) | 1024×768 |
| Brightness (CD/m^2) | 350cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 140/140 |
| Power consumption | 9.5 W typical, normal operation |
| Touch Screen | 3.9mm projected-capacitive Touch;USB Port;eeti |
| Construction | G+G Cover glass |
| Durability | 50 Million touches(min) |

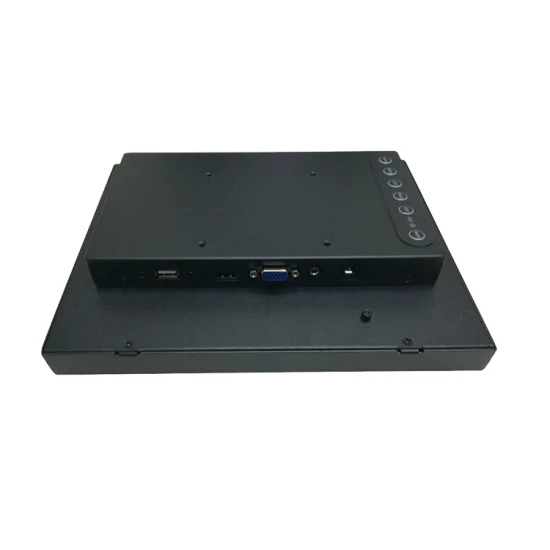

| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 261x 208x 43.4(mm) |
| Mounting | VESA 75×75 |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~80ºC |
| Ordering Information | 10.4″ projected-capacitive touch monitor |
Packaging & Delivery
| Packing details | 1x 10.4 inch projected-capacitiv touch monitor Packed in 3pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 5 working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. 10.4” industrial New panels 1024×768, led backlight
2. industrial control board with wide temperature supports the displays working 24 hours
3.Open frame design to protect the LCD screen
4. VGA DVI interfaces ; anti-vandal projected capacitive touch screen bonded on the screen
