| Display Specifications | |

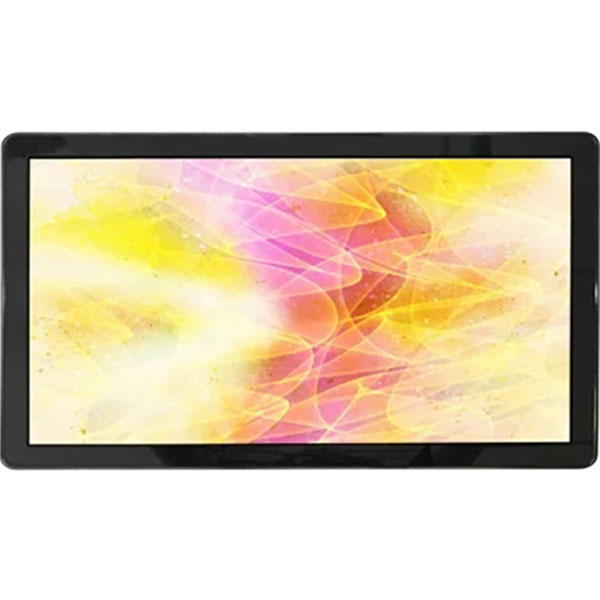

| Display | 17.3″ Touch LCD Monitor (LED) |
| Model Name | AXD-17OPEXT3-TP3 |
| Active Display Area (mm) | 385.09 (H)x218.01(V) |
| Pixel Pitch (mm) | 0.1989 x 0.1989 |
| Resolution (Pixel) | WSXGA (1920X1080) |
| Brightness (CD/m^2) | 400cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 18.4 W typical, normal operation |
| Touch Screen | Pro-Capacitive Touch( Multi-touch) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D,HDMI(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel metal housing |
| Dimensions | 428.0x 265.0x 42.0(mm) |
| Mounting | Embedded ,fixing holes on the back frame |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -10~60ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 17.3″ Touch lcd Open frame FHD with VGA input and power adapter |
Packaging & Delivery
| Packing details | 1x 17.3 inch capacitive touch monitor Packed in 3 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 3-4 working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. VGA DVI interfaces and the optional port for touch screen
5. 17.3” Open frame monitor for gaming , advertising player ,kiosk terminals etc
