| Display Specifications | |

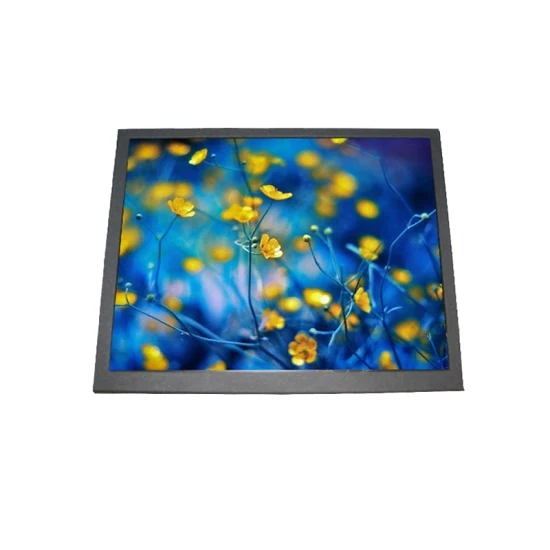

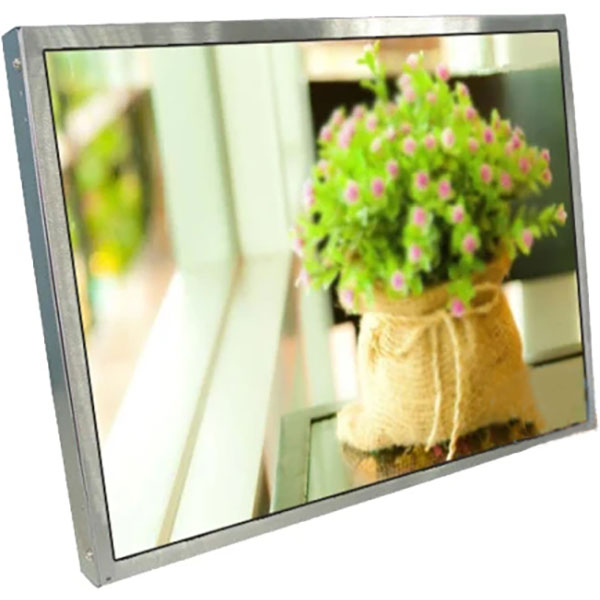

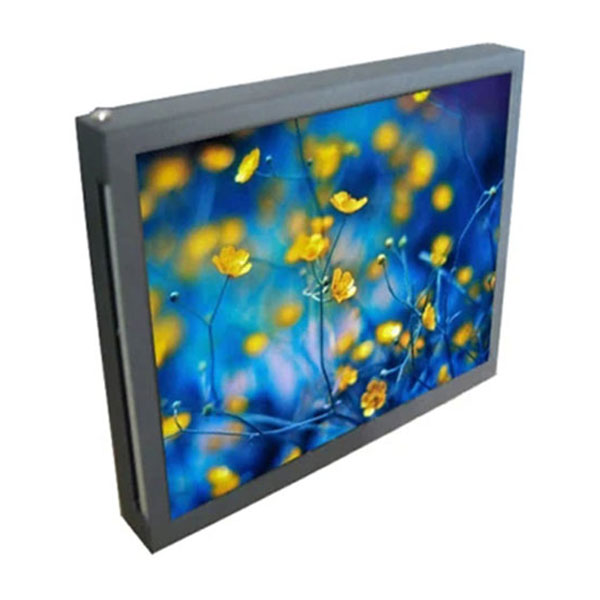

| Display | 15″ Color TFT Open Frame Monitor |
| Model Name | AXD-15OPN1P2-T2 |
| Active Display Area (mm) | 304.1(H)x304.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | XGA (1024X768) 262K/16.2M Color |
| Brightness (CD/m^2) | 250cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 13.3W typical, normal operation |
| Touch Screen | 5 wire Resistive touch USB Connection |

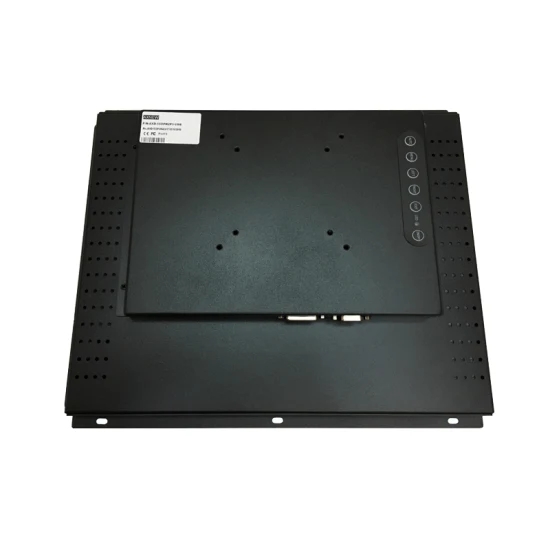

| OSD Control | On the back side |

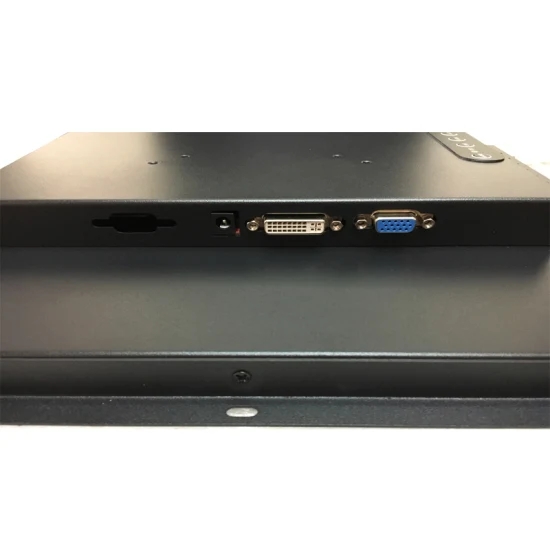

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Galvanized Color |
| Dimensions | 329.0 x 293.0x 29.0 (mm) |
| Mounting | Edge locking |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
Packaging & Delivery
| Packing details | 1x 15inch Open Frame LCD monitor; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x powerdapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. 15” 1024X768 New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. Wide temperature for harsh environment
4. VGA DVI interfaces ; touch screen options
5. 15 inch open frame touch monitor for application control , advertising player ,campus and ATM, Kiosks,industrial terminals etc
