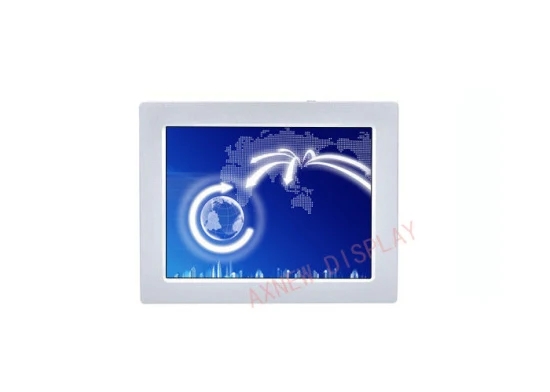

10 Inch N2600 12V Fanless Touchscreen Mini Industrial PC

Brand :

Model NO: AXD-10PPC-V2A
Screen Size: 10 Inch
Display Resolution(pixel): 1280×800
Contrast Ratio:800:1
Brightness (CD/m^2): 350cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-10PPC-V2A
10” Touch pc
Case/Bezel Color Sliver
TFT Type IPS LCD with LED backlight
Aspect ratio 16:10
Useful Screen Area 220.6 mm x 139.6 mm
Touch Panel Industrial Resistive Flat Screen
Touch response time 10ms (typical
Touch PC Dimensions 262x 206×53.3 mm
Optimal (native) Resolution 1280 x 800
LCD panel Pixel pitch 0.1695 x 0.1695 mm
LCD panel Colors 262K/16.7 million
LCD panel Brightness 350 cd/m2
LCD panel Response Time 25 ms
Contrast Ratio 800:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 85°(up), 85°(down) or 170° total

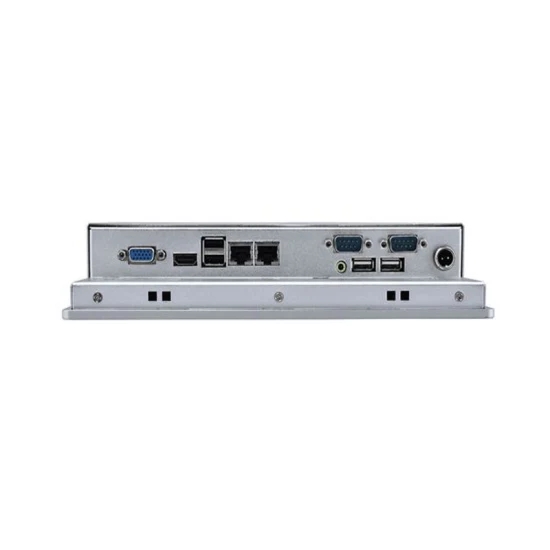

Output Interface COM/HDMI type/ Audio/Mic
Input Interface USB*3
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module)

Intel® processor N2930 (1.8GHz + NM10 Chipset);Jetway industrial board

SSD: 32G;Rom:4G(DDR3,max6G);

Operation System:Win7;10; inux

Temperature Operating: -10°C to 70°C ;Storage -20°C to 80°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions 490 x 440 x340 mm (Five pieces in one )
Weight (approx.) Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings Vesa mounting 100×100
Mechanical dimensions 292x 206×53.3 mm
Drawings Please contact us for details
Packaging & Delivery
Packing details

1x 10 inch Industrial Touch Panel PC ;

Packed in 5 pieces/carton with protection foam

Optional accessories:1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments;

15 working days for order production


Features and Advantages


1. New and A grade lcd panel with other components on stable supply

2. Resistive touchscreen makes the touch sense perfectly

3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option

6. 10” monitor Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
