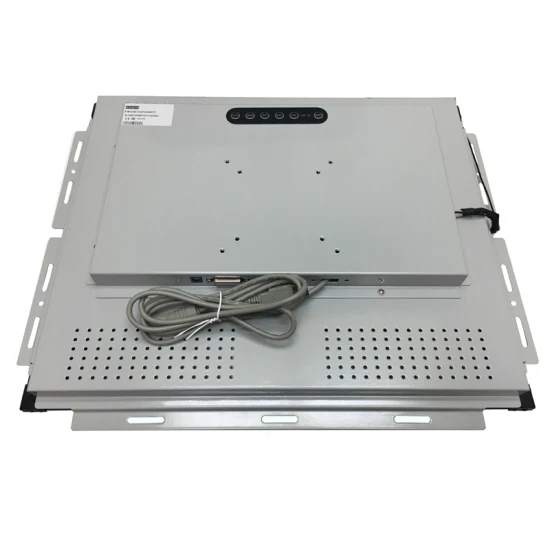

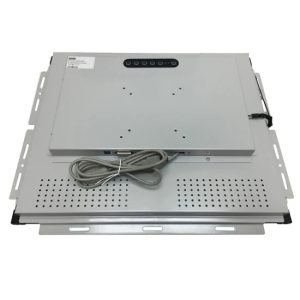

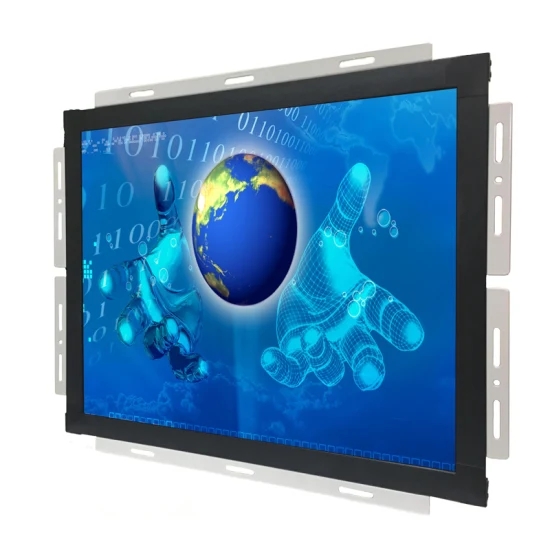

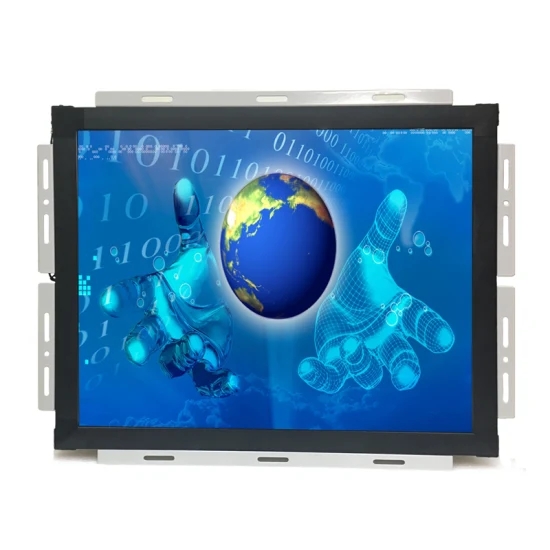

Rugged Digital 19 Inch Open Frame LCD Monitor with Saw Touch Waterproof Vandal Proof

Brand :

Model NO: AXD-19OPT3P1

Screen Size: 19 Inch

Display Resolution(pixel): 1280×1024

Contrast Ratio: 1000:1

Brightness (CD/m^2): 350cd/m^2

Touch type: Projected Capacitive

Application: Kiosks,Industrial machines,Automation,etc

Category:
Display Specifications
Display 19″ Color TFT Industrial saw touch screen LCD Monitor
Model Name AXD-19OPT3P1
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Resolution (Pixel) SXGA (1280X1024) 16.7 M
Brightness (CD/m^2) 350cd/m^2(Typ.)
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 18.5W typical, normal operation
Touch Screen
Type SAW Touch(Anti-vandal,IP6front bezel)
Surface Hardness 6H
Durability 50 Million Multi-touch
Transparency 92%

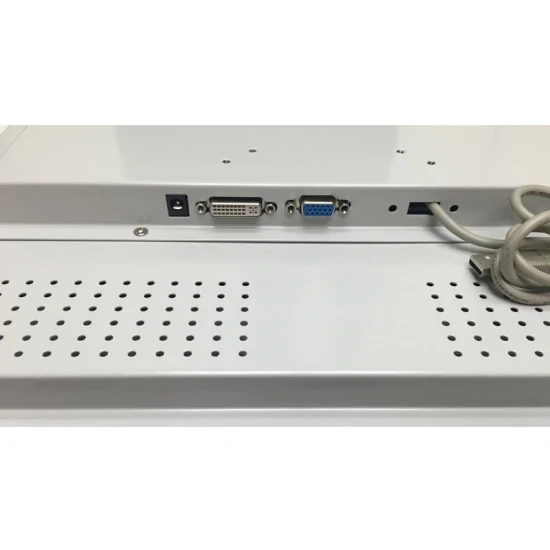

I/O RGB analog(VGA)x1, DVI-Dx1;12V DC2.1 Jackx1;USBx1( for the touch connection only)
OSD 6 Keys on the backside
Voltage Consumption AC 100~240V,Universal,±10% ; AC/DC 12V4A
3.3W typical, normal operation



Mechanical Specifications
Construction Steel chassis & Black Color
Dimensions 455.5x 378.0X51.5 (mm)
Mounting Edge locking ,fixing holes embedded
Environment Specifications
Operating Temperature -10~60ºC
Storage Temperature -20~70ºC
Ordering Information 19″ touch Monitor 350nits With SAW Touch AXD-19OPT3P1



Features and Advantages



1. 19”1280×1024 New and Industrial panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;SAW Touch screen 6.8mm thickness to protect the LCD
