| LCD monitor information | |
| Model Number | AXD-08OPN1P3-V2 ( HDMI) |

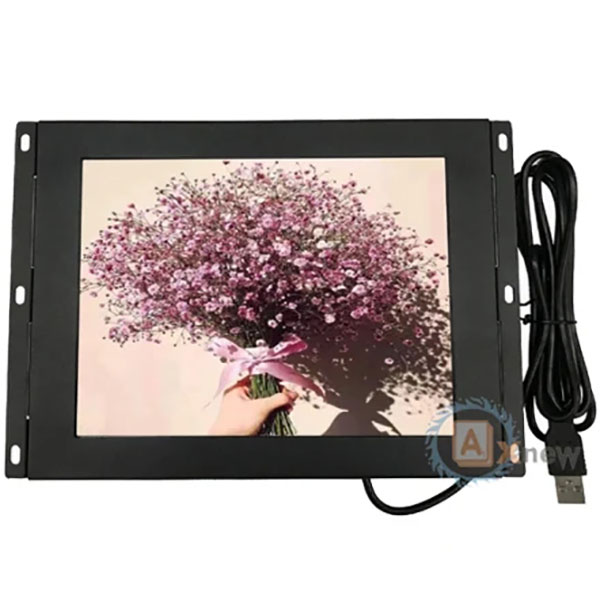

| 8’’ HDMI Resistive Touch LED monitor | |
| Type | 8 “ TFT Active Matrix LCD with LED Backlight |
| Active Display Area(mm) | 162.0(H)x121.5(V) |
| Pixel Pitch(mm) | 0.213(H)x0.213(V) |
| Resolution | 800 x 600 |
| Contrast Ratio | 500:1 (typ.) |
| Display Color | 16.7 M colors |
| Brightness | 250(Typ) |
| Viewing Angles | 140(H);120(V) |
| Response Time | 10ms/15ms |
| Environmental Temperature | |
| Operating Temperature | -10℃～70℃ |
| Storage Temperature | -20℃～80℃ |
| Signal Input | |
| PC | RGB analog VGA/ HDMI/ AV |
| RGB Frequency | H:31.5~38kHz, V:50~60Hz |
| Power Specification | |
| Voltage Consumption | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation | |
| Touch Screen Optional | Resistive touch with USB touch cable |
| Dimensions | |
| Construction | Rugged chassis & Black Color |
| Holes fixings | Right Left fixing holes |
| Mechanical dimensions | 223.0 x 158.0x 31.0 (mm) |
| Drawings | Please contact us for details |
| Features and Advantages |
| 1.New and A grade perfect panels with stable supply |
| 2. industrial control board supports the displays working 24 hours |
| 3. Professional and industrial hardware and parts to guarantee its working normally in rough environment |

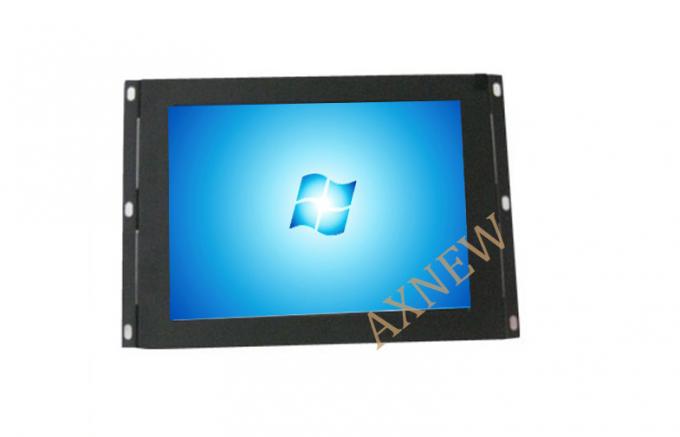

| 4. Open frame with front panel frame design on the surface, rugged mounted frame to protect the LCD screen |
| 5. HDMI/VGA/AV interfaces |
| 6. 8 inch HDMI led monitor for Automatic , kiosks, application control ,advertising player ,campus and industrial terminals
etc |

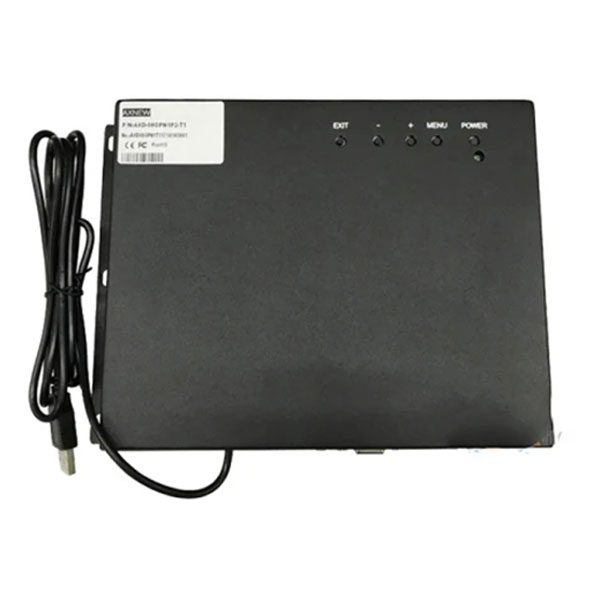

Two postions for signal inputs : Side and down ! Photos as followings
Interfaces are on the buttom( down side)
