10.4 Inch 1024×768 Resistive Touchscreen with super viewing angle

Brand :

Model: AXD-10OPN3P1-T1

Screen Size: 10.4″

Screen format: 4:3

Display Resolution(pixel): 800X600

Contrast Ratio: 800:1

Brightness: 400cd/m^2

Storage temperature : -30℃~85℃
Operating temperature : -20°C ~ 80°C

Input signal: VGA DVI

Power Input: DC 12V,4A 48W

Touch Type: Resistive Touch

Product status: Stock

Model:AXD-10OPN3P1-T1 Screen Size:10.4’’
Screen format: 4:3 Display Resolution(pixel):1024X768
Contrast Ratio:800:1 Brightness:400cd/m^2
Storage temperature : -30℃~85℃ Input signal: VGA DVI
Power Input: DC 12V

Touch Type: 5 wire resistive touch panel

Product status: Stock
Display Specifications

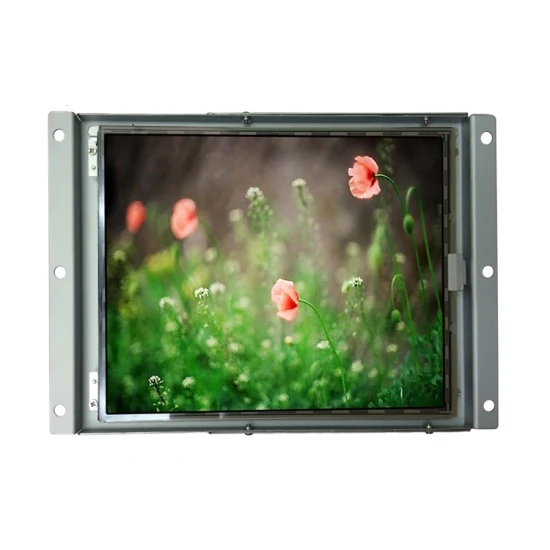

Display 10.4″ Color TFT LED open frame touch display
Model Name AXD-10OPN3P1-T1
Active Display Area (mm) 211.2(H)x158.4(V)
Pixel Pitch (mm) 0.264(H)x0.264(V)
Resolution (Pixel) VGA (1024X768) 16.7M
Brightness (CD/m^2) 400cd/m^2
Contrast Ratio 800:1
Viewing Angle (CR >=10) 178/178
Power consumption 12.8W typical, normal operation
Touch Screen Resistive touch ;open frame , please request if needed

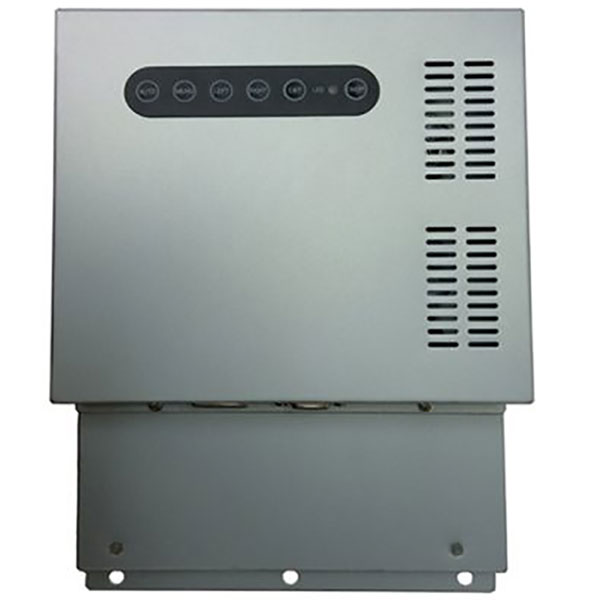

OSD Control On the back side

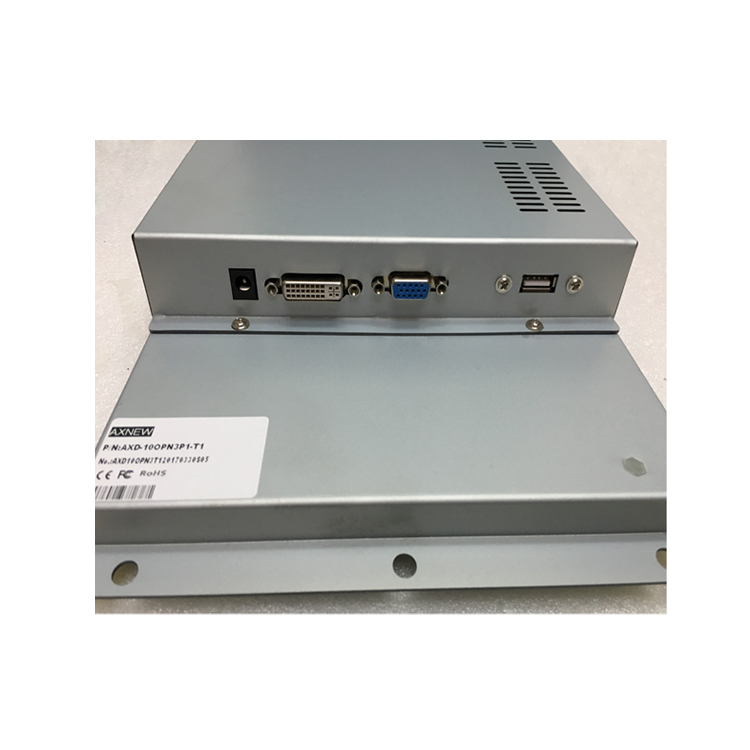

I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel open frame

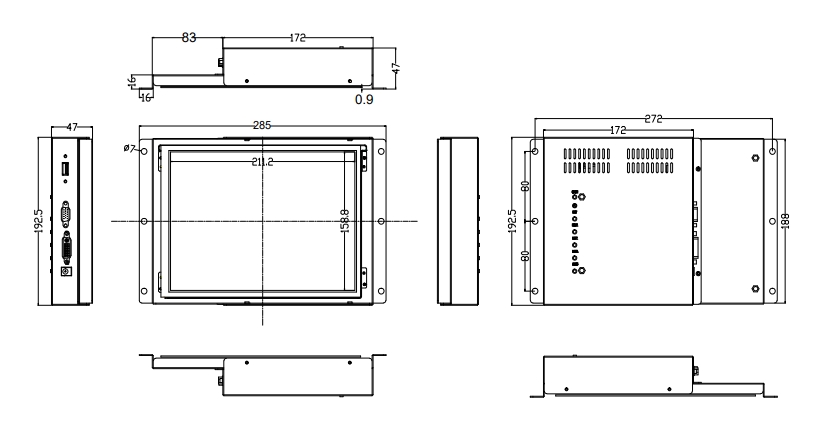

Dimensions Subject to the updated drawings
Mounting Edge fixing holes, Vesa Mounting
Power source AC 100~240V/ 12V 4A AC/DC adapter
Environment Specifications
Operating Temperature -20~80℃
Storage Temperature -30~85℃
Rating Facilitate installation of the demolition,solid portfolio



Packaging&Delivery

Packing details 1x 10.4 inch lcd monitor Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days  for order production
