Display Specifications | |

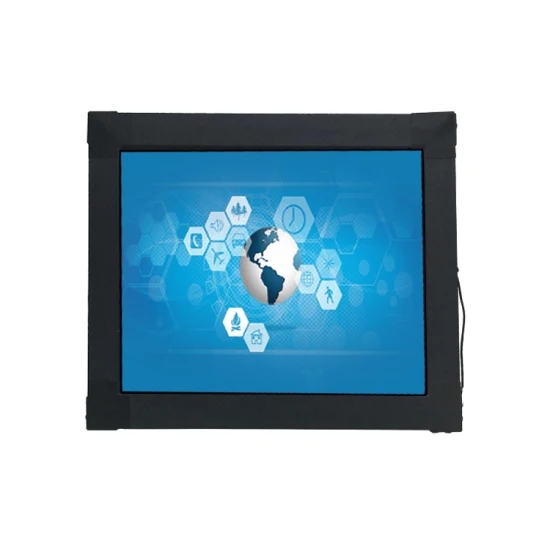

Display | 10.4″ Color TFT Industrial Monitor with IP65 front |
Model Name | AXD-10OPIPN1P1-T2W |
Active Display Area (mm) | 221.2 (H)x158.4(V) |
Pixel Pitch (mm) | 0.264(H)x0.264(V) |
Resolution (Pixel) | SVGA (800X600) 16.2M Color |
Brightness (CD/m^2) | 800cd/m^2 |
Contrast Ratio | 600:1 |
Viewing Angle (CR >=10) | 160/140 |
Power consumption | 13.6W typical, normal operation |
Touch Screen | Resistive ;IR Touch ;RS232/USB;Wave touch(Optional) |
OSD Control | On the back side |
I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
Power Input | DC 12V,4A 48W |
Mechanical Specifications | |
Construction | Aluminum front bezel &Black Color |
Dimensions | 306.6x 230.1x 57.0(mm) |
Mounting | Embedded ,Wall Mounting Optional |
Power source | AC 100~240V/ 12V DC |
Environment Specifications | |
Operating Temperature | -20~80ºC |
Storage Temperature | -30~85ºC |
Rating | Facilitate installation of the demolition,solid portfolio |
Ordering Information | 10.4″ IP Monitor with VGA input and power adapter |
Packaging & Delivery
Packing details | 1x 10.4 inch Industrial LCD display; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1.New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces
