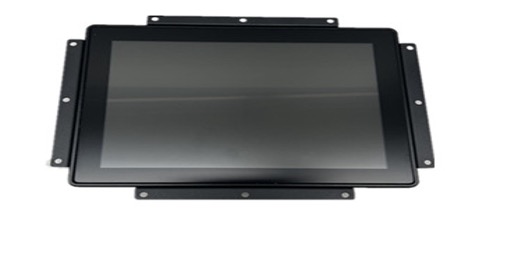

Industrial High Luminance 15.6 inch Open Frame Monitor with wide temperature -30℃ ~80℃

Model NO: AXD-15OPIVT2-W3
Screen Size: 15 Inch
Display Resolution(pixel): 1920×1080
Contrast Ratio: 800:1
Brightness (CD/m^2): 450cd/m^2
Touch type: Projected Capacitive with multi-touch
Application: Payment system, Industrial machines, Semi-outdoor Kiosks etc

Display Specifications
Display 15.6″ Color TFT Open Frame Touch Monitor
Model Name AXD-15OPIVT2-W3
Active Display Area (mm) 344.16(H)x193.59(V)
Pixel Pitch (mm) 0.1795(H)x0.1795(V)
Resolution (Pixel) WUXGA (1092X1080)  16.7M Color 1080P
Brightness (CD/m^2) 450cd/m^2
Contrast Ratio 800:1
Viewing Angle (CR >=10) 178/178 (IPS)
Power Input DC Jack 12V; AC 100~240V/ 12V 5A DC
Power consumption 17.3W typical, normal operation
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,1XHDM
Touch Panel Specification
Touch type Projected-capacitive  ; USB port
Touch Solution Water-proof G+G Cover glass
Touch hardness  7H
Touch glass standard without AG ,Anti-glare treatment (chemical etching) option
Light Transmission 88%-92%
Mechanical Specifications
Construction Steel Metal chassis with IP65 sealing & Galvanized Color
Dimensions 381.0 x236.5x 40.0 (mm)
Mounting Edge locking/ vesa mounting
Environment Specifications
Operating Temperature -30~80℃
Storage Temperature -40~85℃
Rating Facilitate installation of the demolition, solid portfolio


Features and Advantages

  1. 15.6 inch capacitive touch with open frame flat true design, with IP65 sealing on front
  2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
  3. industrial control board supports the displays working 24 hours, display port , hdmi, DVI signal inputs
  4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
  5. 12V DC is typical voltage for the monitor, 8-40v wide voltage could be supported.

Packaging & Delivery

Packing details 1x 15.6 inch Industrial Touch Screen Monitor;

Packed in 4 pieces/carton with protection foam

Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power


Delivery terms 7- working days for stock products after receiving payments;  15 working days for order production
