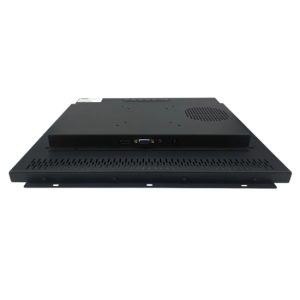

FCC 1000nits 17 Inch Industrial Open Frame Screen for Outdoor

Brand :

Model NO: AXD-17OPN1P3-HT4 Vb ( HDMI)

Screen Size: 17 Inch

Display Resolution(pixel): 1280×1024

Contrast Ratio:1000:1

Brightness (CD/m^2): 1000cd/m^2

Touch type: Projected Capacitive

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 17.0″ Color TFT High Brightness LCD monitor
Model Name AXD-17OPN1P3-HT4 Vb
Active Display Area (mm) 337.9 (H) x 270.3 (V)
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Resolution (Pixel) 1280X1024
Brightness (CD/m^2) 1000cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 32.5 W typical, normal operation
Touch Screen NO ;Resistive, capacitive ;IR Touch ;RS232/USB(Optional)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,1XHDMI
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Roasted Metal Frame
Dimensions 361.5x 325.5x 40.0(mm)
Mounting Up and down fixing holes ,VESA 75×75(100×100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~75ºC
Storage Temperature -30~80ºC
Cooling Fan one 12 V cooling fan inside
Dimming sensor Optional dimmer from 250nits to 1000nits
Ordering Information 17″ 1000NITS High Brightness Monitor 4:3


Features and Advantages

1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA Hdmi interfaces ;No touch screen
6. 17 inch open frame monitor for outdoor application control ,outdoor advertising player ,outdoor kiosk, outdoor ATM, industrial terminals etc
