| Description | Model NO: AXD-08PPC-A3 T1
Screen Size: 8 Inch
Display Resolution(pixel): 800x600
Contrast Ratio:500:1
Brightness (CD/m^2): 250cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model: AXD-15OPPM-T2
Screen Size:15’’
Screen format: 4:3
Display Resolution(pixel):1280x1024
Contrast Ratio:600:1
Brightness:350cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: pro-capacitive touch
Product status: in production | Screen Size:17’’
Screen format: 4:3
Display Resolution(pixel):1280X1024
Contrast Ratio:800:1
Brightness:300cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: IR Touch
Product status: Stock | Model NO: AXD-10PPC-V2A
Screen Size: 10 Inch
Display Resolution(pixel): 1280x800
Contrast Ratio:800:1
Brightness (CD/m^2): 350cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-12PPC-V2A
Screen Size: 12.1 Inch
Display Resolution(pixel): 800x600
Contrast Ratio:500:1
Brightness (CD/m^2): 4000 cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Screen Size:17’’
Screen format: 4:3
Display Resolution(pixel):1280X1024
Contrast Ratio:800:1
Brightness:300cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: IR Touch
Product status: Stock |
| Content |

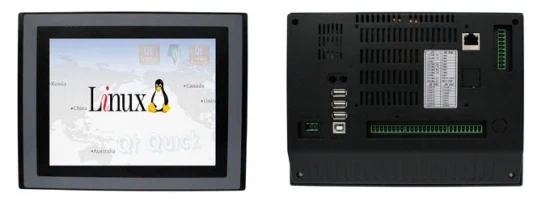

| Panel PC information |
|
| Model Number |
AXD-08PPC-A3 T1 |
| 8.0'' Mini Touch panel pc |
| Case/Bezel Color |
Black |
| TFT Type |
industrial LED Based LCD |
| Aspect ratio |
4:3 |
| Useful Screen Area |
162.0(H)x121.5(V) |
| Touch Panel |
Resistive touch |
| Touch response time |
10ms (typical |
| Touch PC Dimensions |
162.0(H)x121.5(V) |
| Optimal (native) Resolution |
800x600 |
| LCD panel Pixel pitch |
0.1695 x 0.1695 mm |
| LCD panel Colors |
262K/16.7 million |
| LCD panel Brightness |
250 cd/m2 |
| LCD panel Response Time |
25 ms |
| Contrast Ratio |
500:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±60° or 120° total |
| Vertical (up/down) |
55°(up), 55°(down) or 110° total |
| Output Interface |
USB/Rs232 Options |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Wide voltage from 9V-24V |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 6W max |
| ECM (Embed Computer Module) |
Quad Core ARM CORTEX-A 9
DDR3: 1G; NAND :8G;
Operation System:Linux |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Humidity (non condensing) |
20%RH -95%RH |
| Shipping Carton Dimensions |
490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) |
Actual: 11kg ;Shipping: 15kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100 |
| Drawings |
Please contact us for details |
 |
| Display Specifications |
|
| Display
|
15" Color TFT Panel mount touch Monitor
|
| Model Name |
AXD-15OPPM-T2
|
| Active Display Area (mm) |
304.1(H)x304.1(V)
|
| Pixel Pitch (mm)
|
0.297(H)x0.297(V)
|
| Resolution (Pixel) |
XGA (1024X768) 262K/16.2MColor
|
| Brightness (CD/m^2) |
400nits
|
| Contrast Ratio |
500:1
|
| Viewing Angle (CR >=10) |
160/140
|
| Power consumption
|
13.3W typical, normal operation
|
| Touch Screen |
Resistive;RS232/USB(Optional)
|
| OSD Control |
On the back side
|
| I/O Connectors |
1x12v,1XVGA,DVI-D
|
| Power Input |
DC 12V,4A48W
|
| Mechanical Specifications |
|
|
Construction
|
Steel Metal chassis & Black Color
|
|
Dimensions
|
398.0 x 295.0x 48 (mm)
|
|
Mounting
|
Edge fixing holes, vesa mounting on the backside
|
| Power source |
AC 100~240V/ 12V DC
|
| Environment Specifications |
|
| Operating Temperature |
-10~70℃
|
| Storage Temperature |
-20~80℃
|
| Rating |
Facilitate installation of the demolition,solid portfolio
|
| Ordering Information |
15” Panel mount capacitive touch LCD Monitor with VGA input and power adapter
|
|
| Display
|
17" Color Industrial Monitor with IR touch (Anti-vandal)
|
| Model Name
|
AXD-17OPIPN1P1-IR
|
| Active Display Area (mm)
|
337.92(H)x270.33(V)
|
| Pixel Pitch (mm)
|
0.264(H)x0.264(V)
|
| Resolution (Pixel)
|
VGA (1280X1024) 262K/16.2MColor
|
| Brightness (CD/m^2)
|
300cd/m^2 |
| Contrast Ratio
|
1000:1
|
| Viewing Angle (CR >=10)
|
170/160
|
| Power consumption
|
25.8W typical, normal operation
|
| Touch Screen
|
IR Touch ;RS232/USB(Optional)
|
| OSD Control
|
On the back side
|
| I/O Connectors
|
1x12v,1XVGA,DVI-D(Optional)
|
| Power Input
|
DC 12V,4A48W
|
| Mechanical Specifications
|
|
| Construction
|
Aluminum front bezel &Black Color
|
| Dimensions
|
440.50 x 354.60x 56.80 (mm)
|
| Mounting
|
Embedded ,VESA Mounting Optional
|
| Power source
|
AC 100~240V/ 12V DC
|
| Environment Specifications
|
|
| Operating Temperature
|
-10~60℃
|
| Storage Temperature
|
-20~70℃
|
| Rating
|
Facilitate installation of the demolition,solid portfolio
|
| Ordering Information
|
17” IP Monitor with VGA input and power adapter
|
 |
| Panel PC information |
|
| Model Number |
AXD-10PPC-V2A |
| 10'' Touch pc |
| Case/Bezel Color |
Sliver |
| TFT Type |
IPS LCD with LED backlight |
| Aspect ratio |
16:10 |
| Useful Screen Area |
220.6 mm x 139.6 mm |
| Touch Panel |
Industrial Resistive Flat Screen |
| Touch response time |
10ms (typical |
| Touch PC Dimensions |
262x 206x53.3 mm |
| Optimal (native) Resolution |
1280 x 800 |
| LCD panel Pixel pitch |
0.1695 x 0.1695 mm |
| LCD panel Colors |
262K/16.7 million |
| LCD panel Brightness |
350 cd/m2 |
| LCD panel Response Time |
25 ms |
| Contrast Ratio |
800:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±85° or 170° total |
| Vertical (up/down) |
85°(up), 85°(down) or 170° total |
| Output Interface |
COM/HDMI type/ Audio/Mic |
| Input Interface |
USB*3 |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 36W max |
| ECM (Embed Computer Module) |
Intel® processor N2930 (1.8GHz + NM10 Chipset);Jetway industrial board
SSD: 32G;Rom:4G(DDR3,max6G);
Operation System:Win7;10; inux
|
| Temperature |
Operating: -10°C to 70°C ;Storage -20°C to 80°C |
| Humidity (non condensing) |
Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions |
490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) |
Actual: 11kg ;Shipping: 15kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100 |
| Mechanical dimensions |
292x 206x53.3 mm |
| Drawings |
Please contact us for details |
Packaging & Delivery
| Packing details |
1x 10 inch Industrial Touch Panel PC ;
Packed in 5 pieces/carton with protection foam
Optional accessories:1x Power supply cable, 1x power adapter
|
| Delivery terms |
7- working days for stock products after receiving payments;
15 working days for order production
|
Features and Advantages
1. New and A grade lcd panel with other components on stable supply
2. Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 10'' monitor Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
|
|
Panel PC information
|
|
|
Model Number
|
AXD-12PPC-V2A
|
|
12.1'' Mini Touch panel pc
|
|
Case/Bezel Color
|
Sliver
|
|
TFT Type
|
Industrial LCD with LED backlight
|
|
Aspect ratio
|
4:3
|
|
Useful Screen Area
|
245.76 mm x 184.32mm
|
|
Touch Panel
|
Industrial Resistive Flat Screen
|
|
Touch response time
|
10ms (typical)
|
|
Touch PC Dimensions
|
306.8x 228.8x51.7 mm
|
|
Optimal (native) Resolution
|
800x600
|
|
LCD panel Pixel pitch
|
0.296 x 0.296 mm
|
|
LCD panel Colors
|
262K/16.2 million
|
|
LCD panel Brightness
|
400 cd/m2
|
|
LCD panel Response Time
|
25 ms
|
|
Contrast Ratio
|
500:1
|
|
Viewing Angle ( Wide )
|
|
|
Horizontal (left/right)
|
±70° or 140° total
|
|
Vertical (up/down)
|
70°(up), 70°(down) or 140° total
|
|
Output Interface
|
DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc
|
|
Input Interface
|
USB*2.can extend
|
|
Net
|
Internet LAN
|
|
Watch Dog Technology
|
Support
|
|
Power Specification
|
External AC to DC power brick
|
|
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5¢)
|
|
AC to DC power brick input: 100-240 VAC, 50/60 Hz
|
|
Power dissipation: 36W max
|
|
ECM (Embed Computer Module)
|
Intel® processor D2550 (1.8GHz + NM10 Chipset)
SSD: 64G; RAM:4G(DDR3,max8G);
Operation System:Win7;Xp;Vista;Linux
|
|
Temperature
|
Operating: -10°C to 70°C ;Storage -20°C to 80°C
|
|
Humidity (non condensing)
|
Operating: 20%-90%; Storage: 10%-95%
|
|
Shipping Carton Dimensions
|
one piece/ per carton
|
|
Weight (approx.)
|
Actual: 3.5kg ;Shipping: 4 kg
|
|
Dimensions
|
|
Holes fixings
|
Vesa mounting 100x100; fixing button
|
|
Mechanical dimensions
|
306.8mmx 228.8mmx51.7mm
|
|
Drawings
|
Please contact us for details
|
Packaging & Delivery
|
Packing details
|
1x 12.1 inch Industrial Touch Panel PC ;
Packed in 5 piece/carton with protection foam
Optional accessories:1x Power supply cable, 1x power adapter
|
|
Delivery terms
|
7- working days for stock products after receiving payments; 15 working days for order production
|
Features and Advantages
1. New and A grade lcd panel with other components on stable supply
2. Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 12.1'' Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
 |
| Display |
17" Color Industrial Monitor with IR touch (Anti-vandal) |
| Model Name |
AXD-17OPIPN1P1-IR |
| Active Display Area (mm) |
337.92(H)x270.33(V) |
| Pixel Pitch (mm) |
0.264(H)x0.264(V) |
| Resolution (Pixel) |
VGA (1280X1024) 262K/16.2MColor |
| Brightness (CD/m^2) |
300cd/m^2 |
| Contrast Ratio |
800:1 |
| Viewing Angle (CR >=10) |
160/160 |
| Power consumption |
25.8W typical, normal operation |
| Touch Screen |
IR Touch ;RS232/USB(Optional) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
| Power Input |
DC 12V,4A48W |
| Mechanical Specifications |
|
| Construction |
Aluminum front bezel &Black Color |
| Dimensions |
440.50 x 354.60x 56.80 (mm) |
| Mounting |
Embedded ,VESA Mounting Optional |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
0~80℃ |
| Storage Temperature |
0~80℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
17” IP Monitor with VGA input and power adapter |
|
