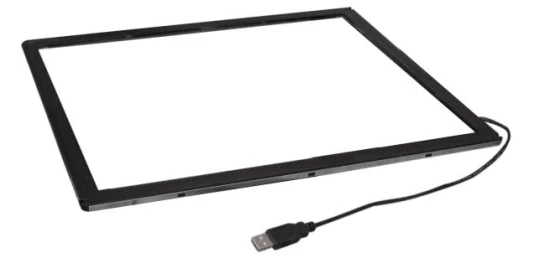

19 Inch IR Infrared Touch IP65 Front with Vandal Proof Glass Panel

Brand :

Model NO: IX110219

Screen Size:15-20 Inches

Aspect Ratio:5:4

Application:Financial Services System

Screen Type:Infrared

Model Number: IX110219 19 inch
Payment & Shipping Terms
Minimum Order Quantity 10 Pieces
Price negotiation
Packaging Details 10 Pcs /Carton with firm foam
Delivery Time 3 days
Payment Terms T/T, Paypal, Western Union
Supply Ability 1000 pieces/month

Specification

Electrical Specifications

19 inch IR touch panel for  4:3 format display.

Controller reported resolution 32768× 32768

Touch accuracy [mm] <1.5mm (central area), <2.5mm (edgy area)

Touch object diameter [mm] >4mm(single point),>8mm(two points )

Output Coordinates Calibration Not required or Simple four-point calibration, no drift

Response Time [ms] ≤12ms (1points) ≤15ms (two points)

Power requirements Powered by USB (DC5V± 5% @ 500mA)

Power consumption <1.5W

Interface Specifications Interface Type USB HID Plug and Play Plug and play and HID compatible Connector

Type USB Type A Environmental Specifications

Temperature Operating:-20~70ºC

Storage:-30~85ºC

Relative Humidity Operating:10%-90% RH, 40ºC non-condensing Storage:10%-90% RH, 40ºC non-condensing

Electrostatic Protection Per EN61000-4-2 2008: Level 4, Class B.

Contact discharge 8kV, air discharge 15kV on USB connector pins

Ambient Light Tolerance Direct light illumination ≤6.5K Lux (Color Temperature = 2700K) (Non-Direct)

Sunlight illumination ≤100K

Lux EMC CE, FCC Class B Compatible

Seal ability IP65

Software Specifications

Firmware Upgradability Yes

Device Type Touch (with gesture support per OS) or, Mouse (Click, drag, double click, right-click) Calibration Four-point calibration, no drift

Multi-Monitor Support Manually Binding Operating Systems Support Windows XP, Windows 7, Windows 8.1, Win1
