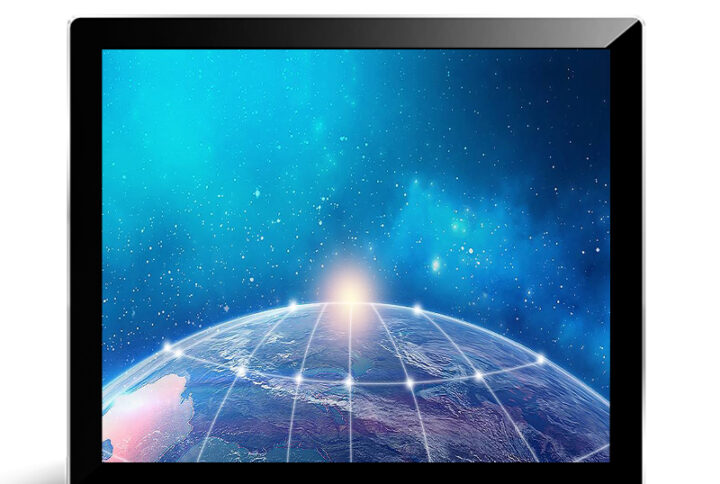

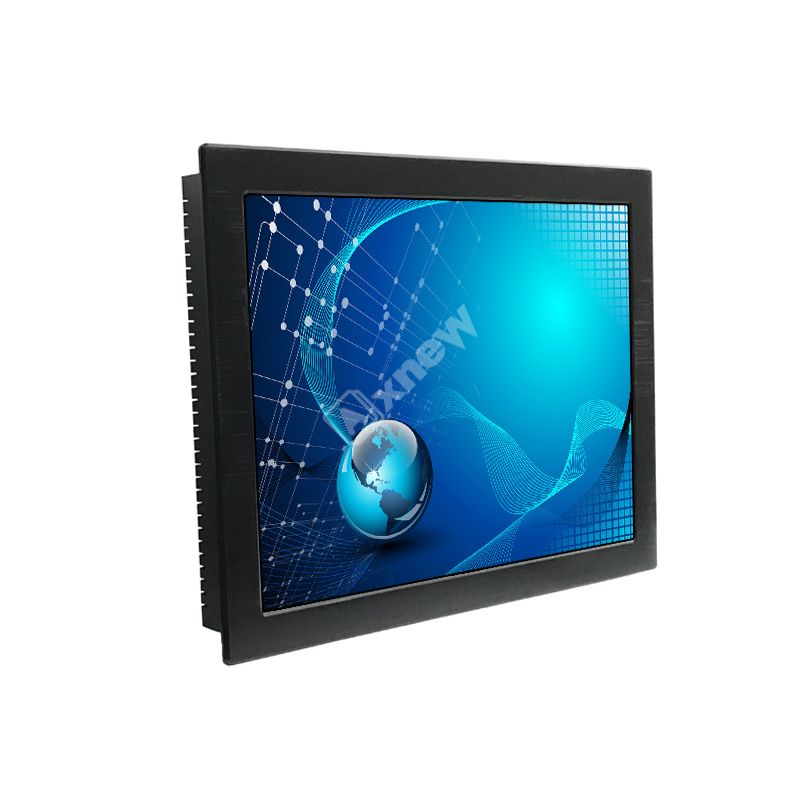

20-inch 800-brightness high-brightness IP65 multi-touch display. Adopting a 20-inch screen with a diagonal of about 50.8 cm, it balances large-screen visibility and spatial adaptability. The resolution reaches 1600×900, delivering clear and delicate images.
With a brightness of up to 800 cd/m², it ensures clear content display even in strong light. Featuring IP65 protection rating, it effectively resists dust and water, adapting to harsh environments. Supporting 10-point touch, it enables sensitive and smooth operations for easy zooming, dragging and other interactions. Equipped with multiple interfaces like HD and USB, it is compatible with various devices, suitable for industrial automation, outdoor terminals, commercial displays and other scenarios.
| Display Specifications | |
| Display | 20.1″ Color TFT Industrial Monitor |
| Model Name | AXD-20OPIPN1-V1 |
| Active Display Area (mm) | 408(H)x306(V) |
| Pixel Pitch (mm) | 0.207(H)x0.207(V) |
| Resolution (Pixel) | 1920×1080;16.2M/262 colors |
| Brightness (CD/m^2) | 800cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 160/160 |
| Power consumption | 30.32 W typical, normal operation |
| Touch Screen | Protective anti-vandal glass |
| OSD Control | On the back side |

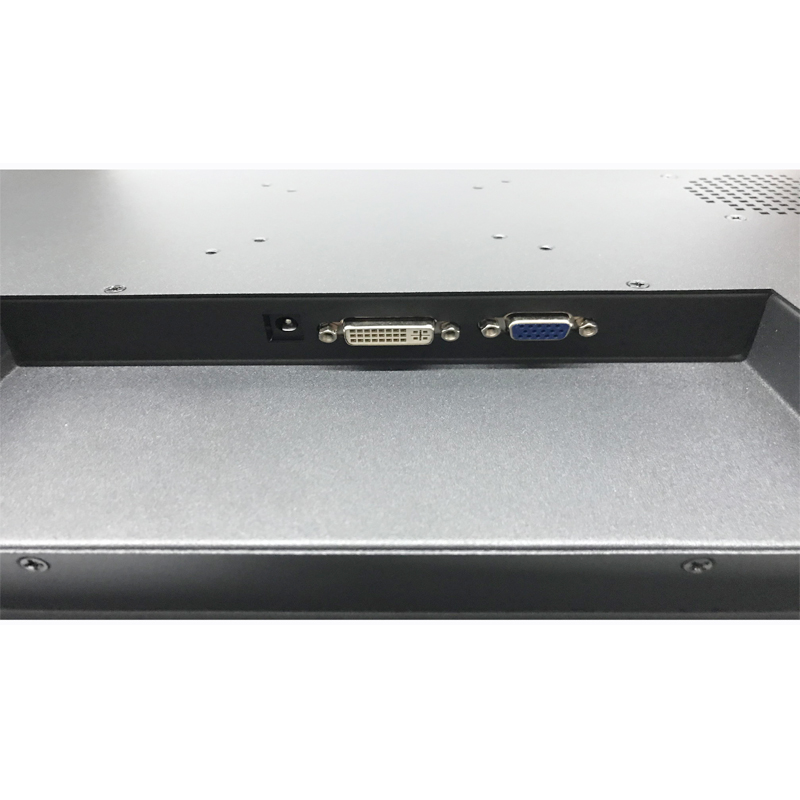

| I/O Connectors | 1x12v,1XVGA |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Aluminum front bezel &Black Color |
| Dimensions | 480.0x 380.0x 50.0 (mm) |
| Mounting | Embedded ,vesa 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC-4A |
| Environment Specifications | |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 20.1” IP Monitor with VGA input and power adapter |
