| Display Specifications | |
| Display | 15″ Color TFT Open Frame resistive Monitor |
| Model Name | AXD-15OPN1P1-T1 |
| Active Display Area (mm) | 304.1(H)x304.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | XGA (1024X768) 262K/16.2MColor |
| Brightness (CD/m^2) | 350cd/m^2 (500cd^2 Optional) |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 13.3W typical, normal operation |
| Touch Screen | 4/5 wire Resistive touch RS232/USB(Optional) |
| OSD Control | On the back side |

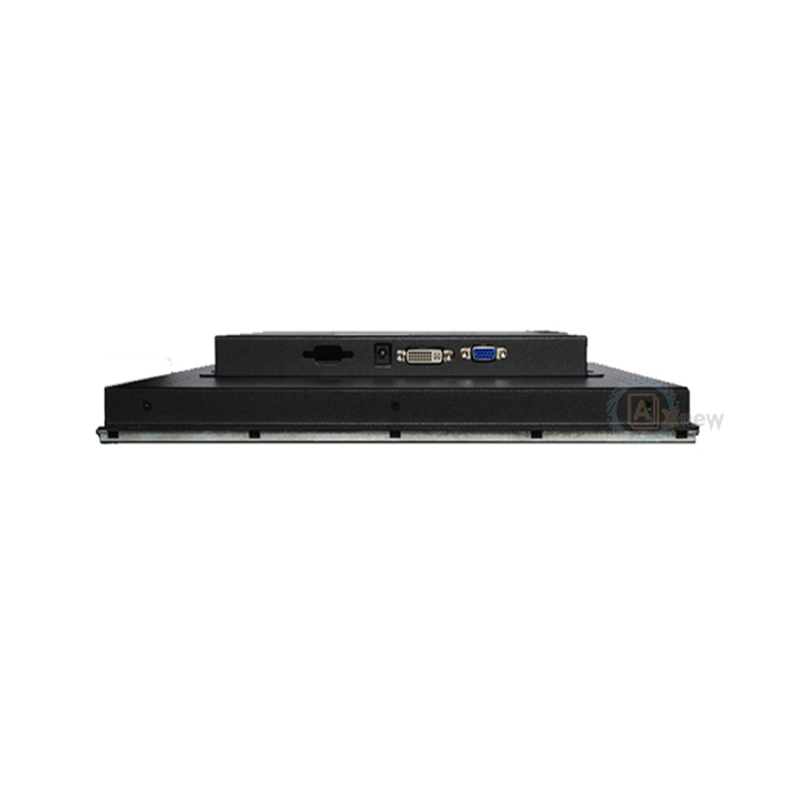

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A48W |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Galvanized Color |
| Dimensions | 329.0 x 293.0x 29.0 (mm) |
| Mounting | Edge locking |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
