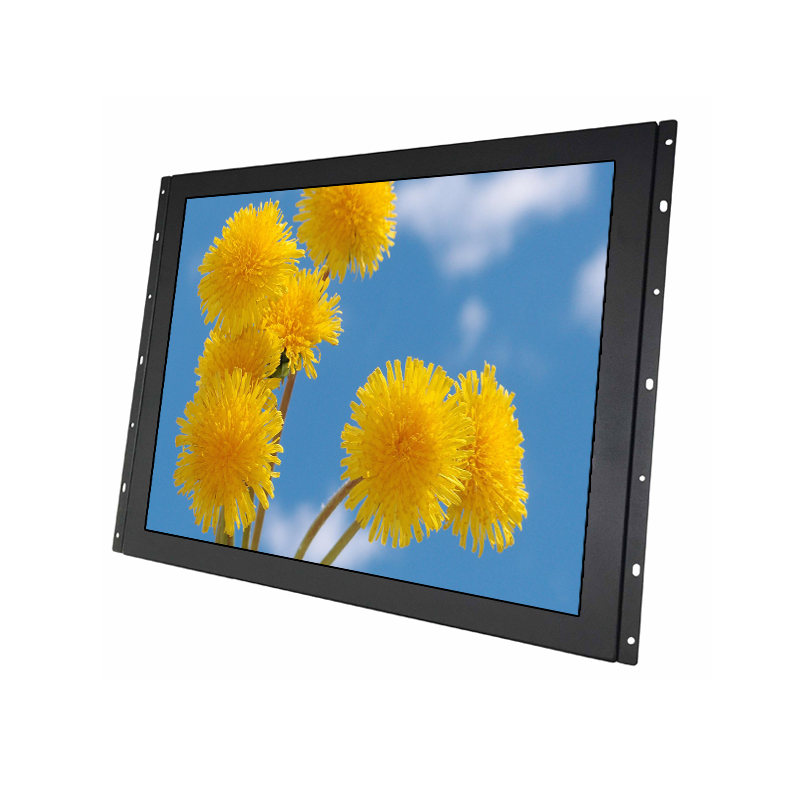

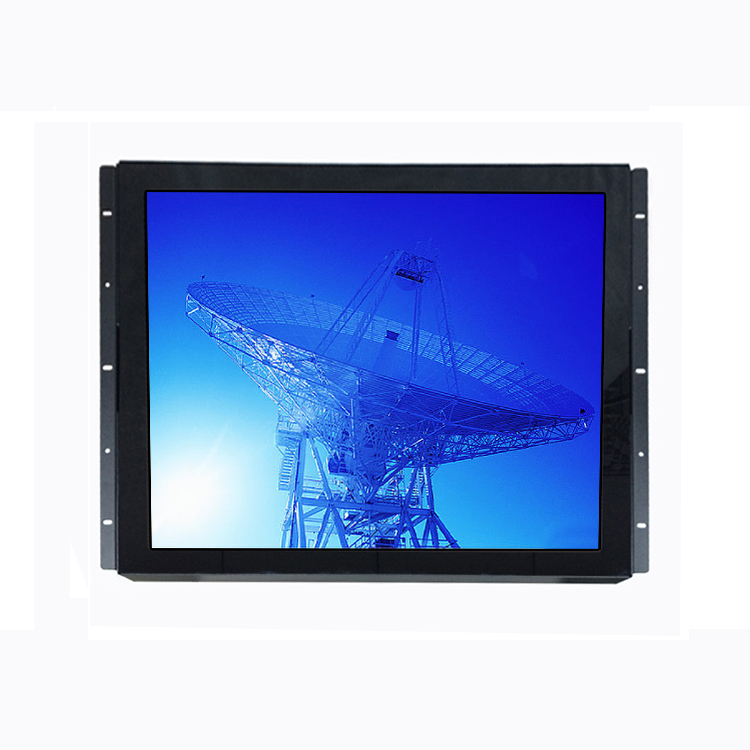

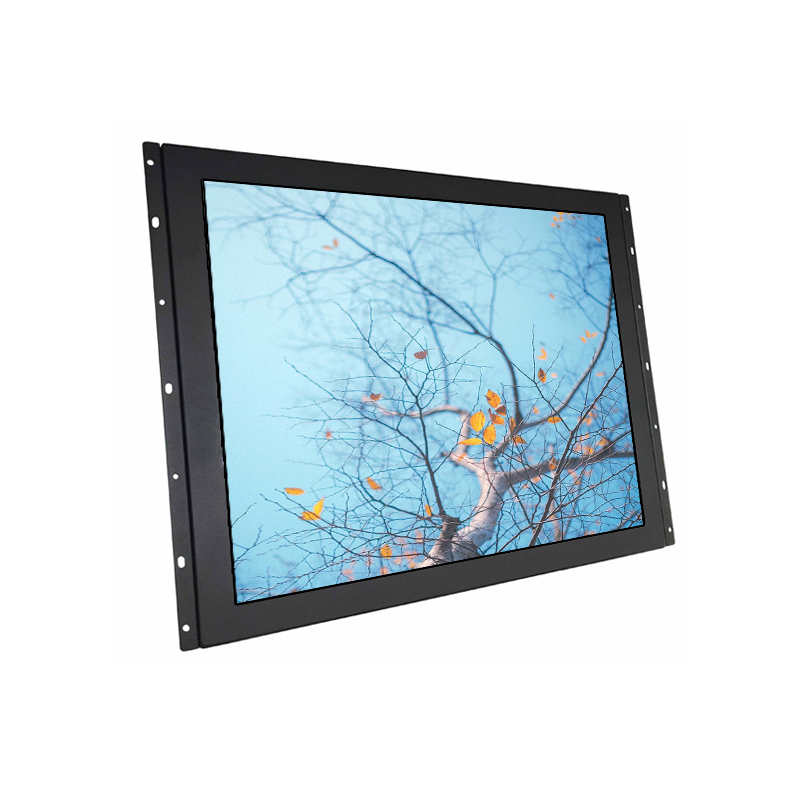

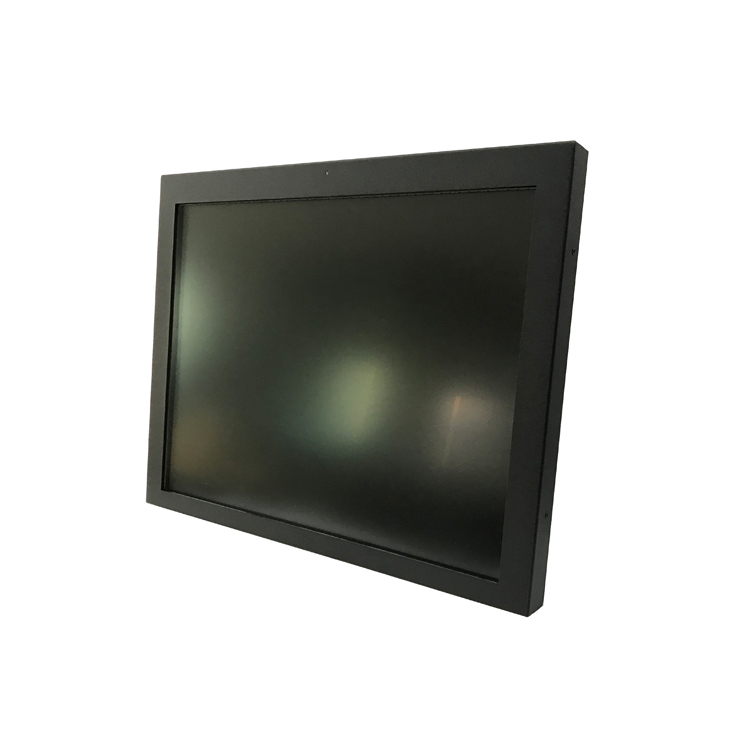

12V 19 Inch Rugged Chassis Open Frame Industrial anti-glare monitor For Outdoor Equipment

Model NO: AXD-19OPN1P2-IPD
Screen Size: 19 Inch
Display Resolution(pixel): 1280×1024
Contrast Ratio: 1000:1
Brightness (CD/m^2): 1000cd/m^2
Touch type: Projected Capacitive with 3.8mm anti-vandal anti-glare glass
Application: Semi outdoor Payment system, Outdoor Industrial machines, Outdoor Kiosks etc

Display Specifications
Display 19″  Color TFT Rugged Open Frame touch Monitor
Model Name AXD-19OPN1P2-IPD
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.297(H)x0.297(V)
Resolution (Pixel) SXGA (1280X1024) 16.2 M (6 bit + FRC)
Brightness (CD/m^2) 1000cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 39.5W typical, normal operation
Touch Screen
Touch Type. Projected-capacitive touch with anti-glare
Touch Solution Industrial chipset with G+G Cover glass
Touch hardness >7H
Touch Glass Treatment  85% Transmission Anti-glare to  protect from sunlight

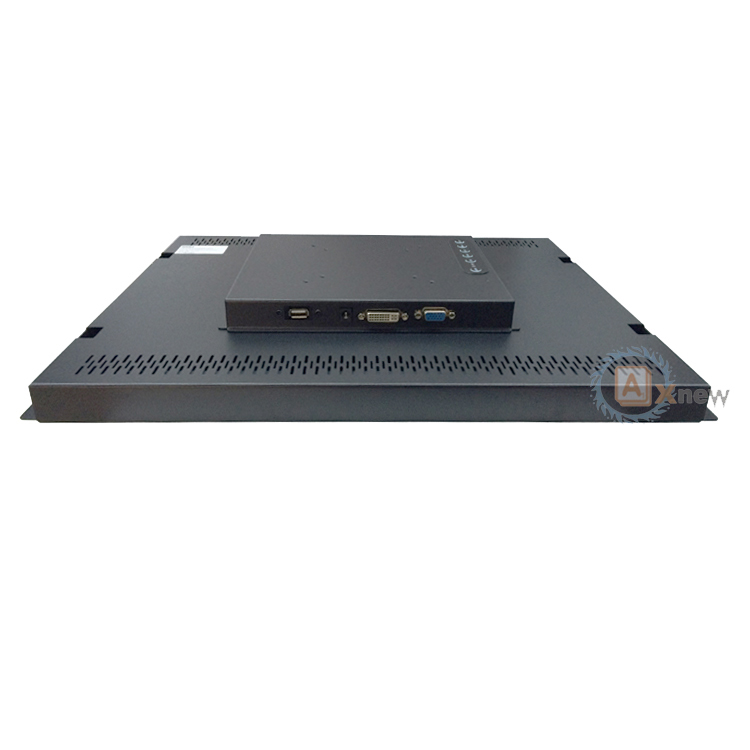

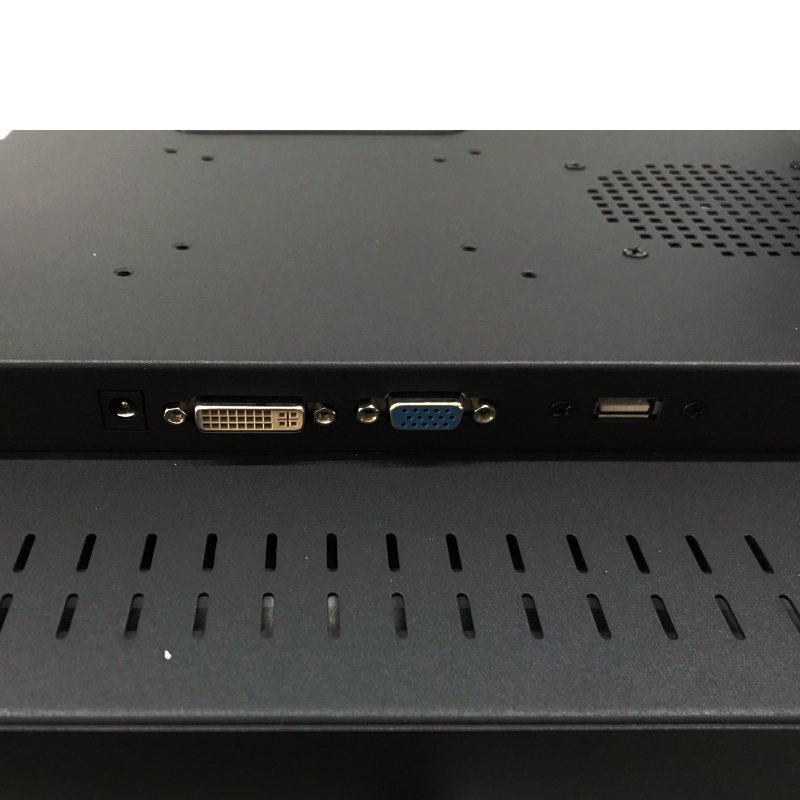

I/O Connectors 1x12v DC Input,1XVGA,HDMI
Power Input DC 12V,5A 60W
Mechanical Specifications
Construction Steel chassis & Black Color
Dimensions 432.0 x 339.0×49.8 (mm)
Mounting Edge locking ,fixing holes embedded
Power source AC 100~240V/ 12V DC-5A
Environment Specifications
Operating Temperature -30~80℃
Storage Temperature -30~85℃
Rating Facilitate installation of the demolition, solid portfolio


Features and Advantages

  1. 19 ” 1280X1024 with super color high contrast screen with A grade
  2. Multiple control board with wide temperature supports the displays working 24 hours x7 days
  3. Open frame with chassis design with capacitive touch to protect the screen from sunlight
  4. Anti-glare treatment with 85% transmission.
  5. VGA, DVI-D / HDMI connectors ; Projected-capacitive touch screen
  6. Economic solution for some outdoor application with harsh environment


Packaging & Delivery

Packing details 1x 19 inch Industrial Touch Screen Monitor;

Packed in 2 pieces/carton with protection foam

Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power


Delivery terms 7- working days for stock products after receiving payments;  15 working days for order production
