Panel Mount IP65 capacitive monitors are specialized display solutions designed for industrial and commercial environments requiring robust protection against dust, water, and other contaminants.

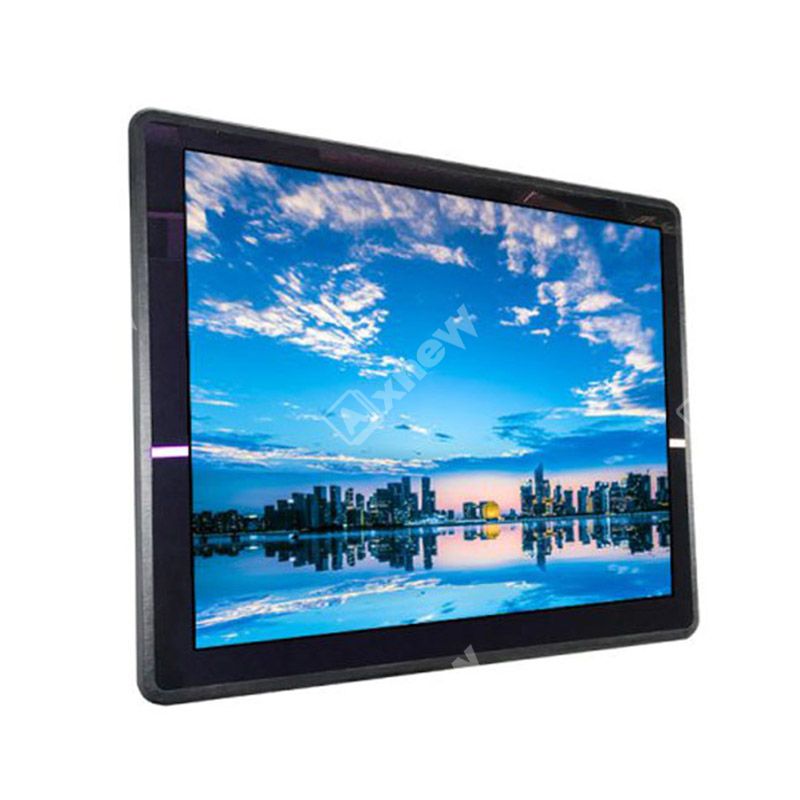

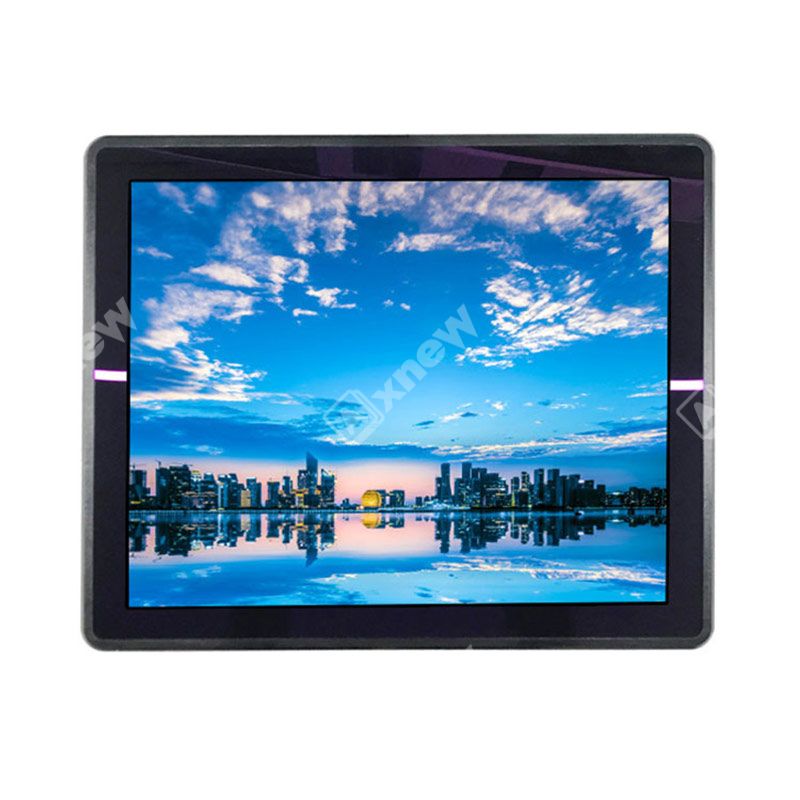

AXD-19OPN2P2-VHT2 is 19” Rugged panel mount industrial touch monitor with 800Nits high brightness, optional with 4mm capacitive touch screen with IP65 front bezel design .
Here are its key features:
1. IP65 Waterproof and Dustproof
– Front Panel Protection: Sealed front panel with IP65 rating (dust-tight and protected against water jets from any direction), making them suitable for harsh conditions like factories, kitchens, or outdoor use.
– Industrial-Grade Sealing: High-performance gaskets or waterproof ensure no ingress of liquids or particles, even during cleaning or exposure to splashes.
2. Capacitive Touch Technology
– Multi-Touch Support: Typically supports 5-10 points of simultaneous touch, enabling gestures like pinch-to-zoom or swipe for intuitive interaction.
– High Precision and Responsiveness: Uses projected capacitive technology for smooth, accurate touch response, ideal for tasks requiring fine control.
– Durability: Resistant to scratches and wear compared to resistive screens, though less tolerant of extreme temperatures or conductive liquids.
3. Panel-Mount Design
– Space-Saving: Flush-mounted into walls, machinery, or consoles, reducing protrusion and minimizing physical damage risks.
– Stability: Secure mounting via brackets or screws ensures reliability in vibration-prone environments (e.g., industrial machinery, transportation systems).
4. Wide Environmental Tolerance
– Temperature Range: Operate in extreme conditions, often from -20°C to 70°C, with storage temperatures extending further.
– Humidity Resistance: Withstand high humidity (up to 90% non-condensing), critical for applications in refrigeration, steam rooms, or tropical climates.
5. High Brightness and Visibility
– Enhanced Readability: Brightness levels often exceed 500 nits (some up to 2500 nits), ensuring clear viewing in direct sunlight or poorly lit areas.
– Anti-Glare Coatings: Optional treatments reduce reflections for better visibility in glare-prone settings.
6. Versatile Connectivity
– Multiple Interfaces: Support for HD, VGA, DVI, USB, and DC power inputs, compatible with industrial PCs, PLCs, or embedded systems.
– Touch Integration: USB or serial ports for touch control, often plug-and-play with Windows, Linux, or Android.
| Display Specifications | |
| Display | 19″ Color TFT Sunlight readable monitor |
| Model Name | AXD-19OPN2P2-VHT2 |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch (mm) | 0.294(H)x0.294(V) |
| Resolution (Pixel) | SXGA (1280X1024) 16.2 M (6 bit + FRC) |
| Brightness (CD/m^2) | 800cd/m^2 |
| Contrast Ratio | 2000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 43.5W typical, normal operation |
| Touch Screen | Capacitive touch panel anti-vandal |

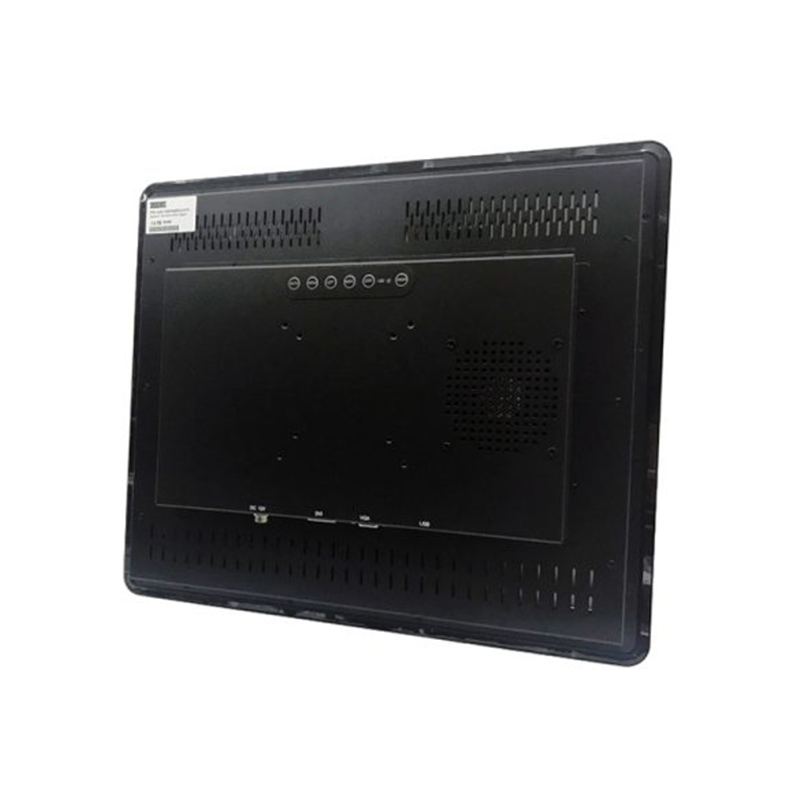

| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,5A 60W |
| Mechanical Specifications | |
| Construction | Steel aluminum & black Color |

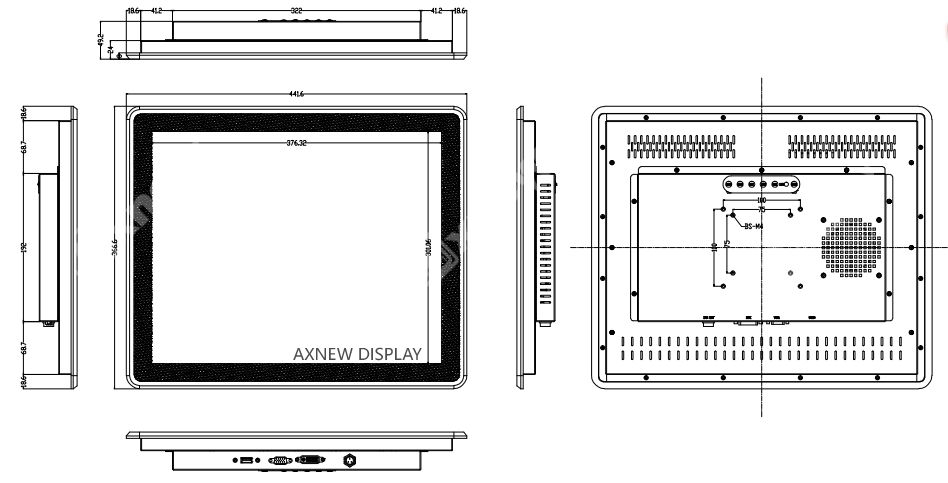

| Dimensions | 432.0 x 339.0×49.8 (mm) |
| Mounting | Edge locking ,fixing holes embedded |
| Power source | AC 100~240V/ 12V DC-5A |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -20~75ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 19″ PCAP touch Monitor 800nits with VGA input and power adapter |
