Display Specifications | |

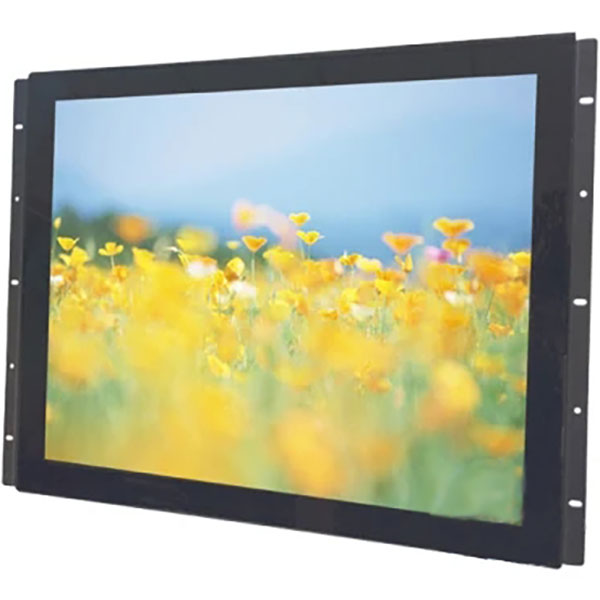

Display | 19″ Color TFT Industrial Touch LCD Monitor |
Model Name | AXD-19OPPMD-T2 |
Active Display Area (mm) | 376.3 (H)x301.1(V) |
Pixel Pitch (mm) | 0.294(H)x0.294(V) |
Resolution (Pixel) | SXGA (1280X1024) 262,16.2M (6 bit + FRC) |
Brightness (CD/m^2) | 250cd/m^2 |
Contrast Ratio | 1000:1 |
Viewing Angle (CR >=10) | 170/160 |
Power consumption | 18.5W typical, normal operation |
Touch Screen | Projected-capacitive ;USB communication |
Layer | G+G 3MM anti-vandal glass |
Touch | 10 points touch |
OSD Control | On the back side |

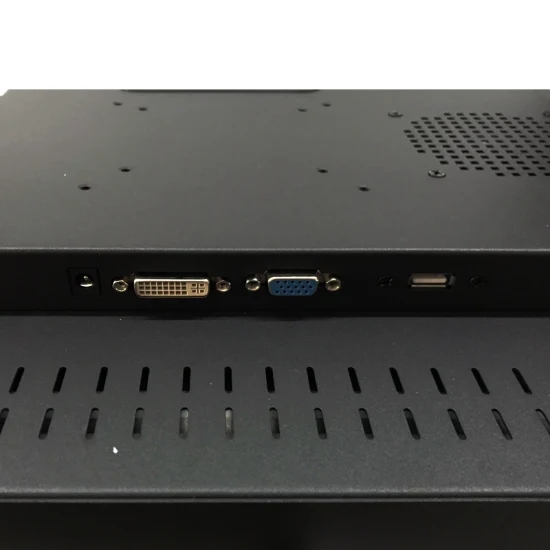

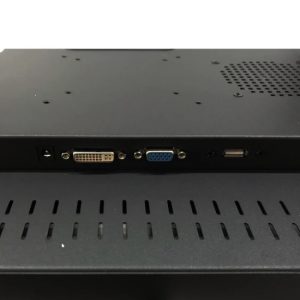

I/O Connectors | 1x12v,1XVGA,1xDVI-D;1xHDMI |
Power Input | DC 12V,4A 48W |
Mechanical Specifications | |
Construction | Steel metal with rugged frame |
Dimensions | 438.6 x 361.0x 50.0 (mm) |
Mounting | fixing braket ;Embedded ;Panel Mount;vesa mount |
Power source | AC 100~240V/ 12V 4A AC/DC adapter |
Environment Specifications | |
Operating Temperature | -10~60℃ |
Storage Temperature | -20~70℃ |
