Features and Advantages |
|
1. New and Industrial A grade perfect panels with 1024×768 high resolution IPS technology |
|
2. industrial control board supports the displays working 24×7 days |
|
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment |
|
4. Open frame with resistive design to protect the LCD screen |
|
5. VGA DVI interfaces ; Resistive touch with USB interface |
|

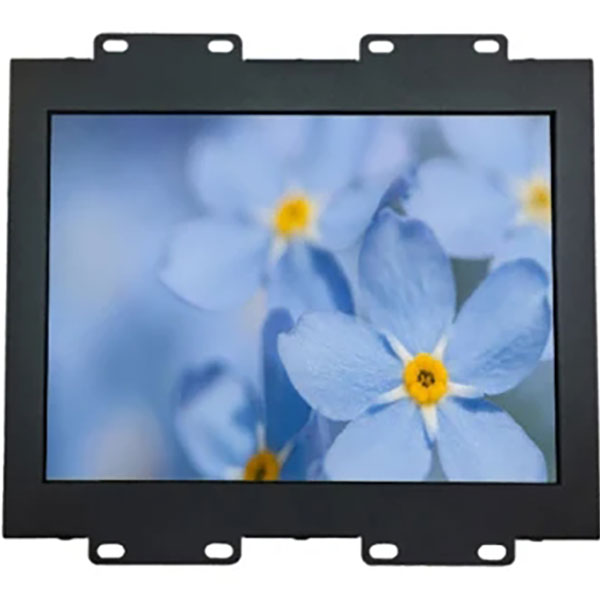

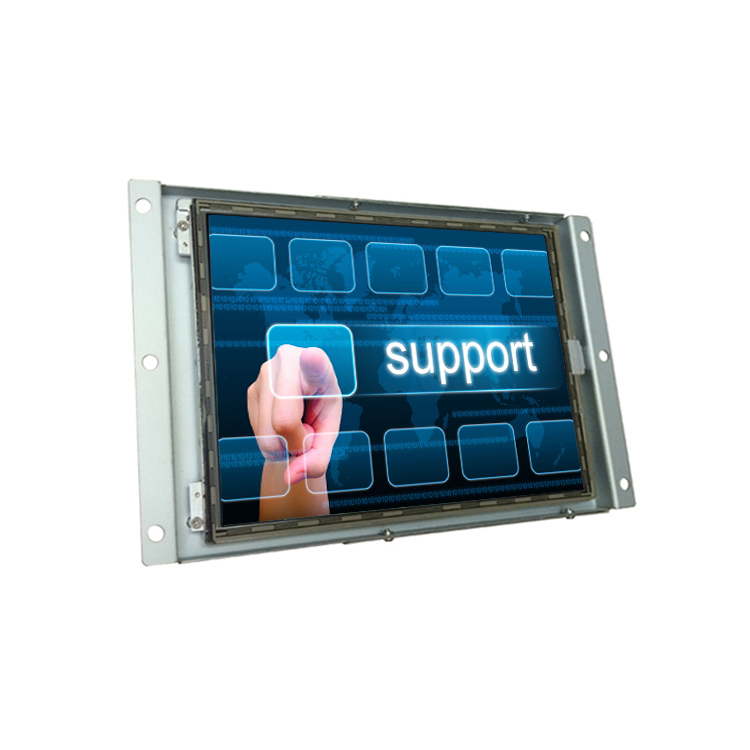

6. 10.4 inch open frame resistive touch LCD for application control industrial terminals, Financial devices etc |
|
Display Specifications |
|
|
Display |
10.4″ industrial open frame monitor |
|
Model Name |
AXD-10OPN3P1-T2 |
|
Active Display Area (mm) |
211.2(H)x158.4(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Resolution (Pixel) |
VGA (1024X768) 16.7M |
|
Brightness (CD/m^2) |
400cd/m^2 |
|
Contrast Ratio |
800:1 |
|
Viewing Angle (CR >=10) |
178/178 |
|
Power consumption |
12.8W typical, normal operation |
|
Touch Screen |
Resistive touch ;open frame , please request if needed |
|
OSD Control |

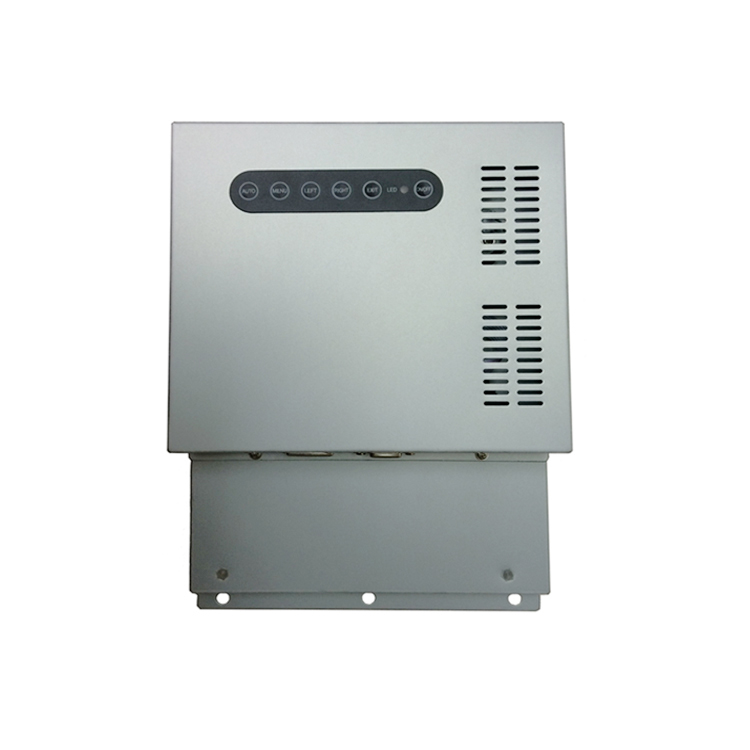

On the back side, menu, right, left, on/off, Auto, exit button |
|
I/O Connectors |
1x12v,1XVGA,DVI-D |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel open frame & black Color |
|
Dimensions |
Subject to the updated drawings |
|
Mounting |
Edge fixing holes, Vesa Mounting |
|
Power source |
AC 100~240V/ 12V 4A AC/DC adapter |
|
Environment Specifications |
|
|
Operating Temperature |
-20~80ºC |
|
Storage Temperature |
-30~85ºC |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
