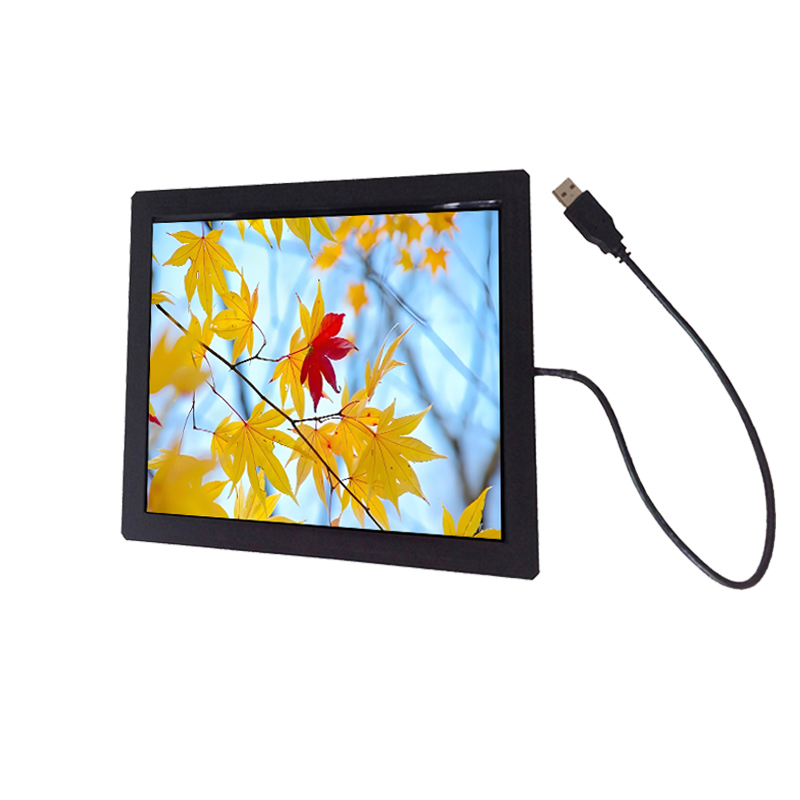

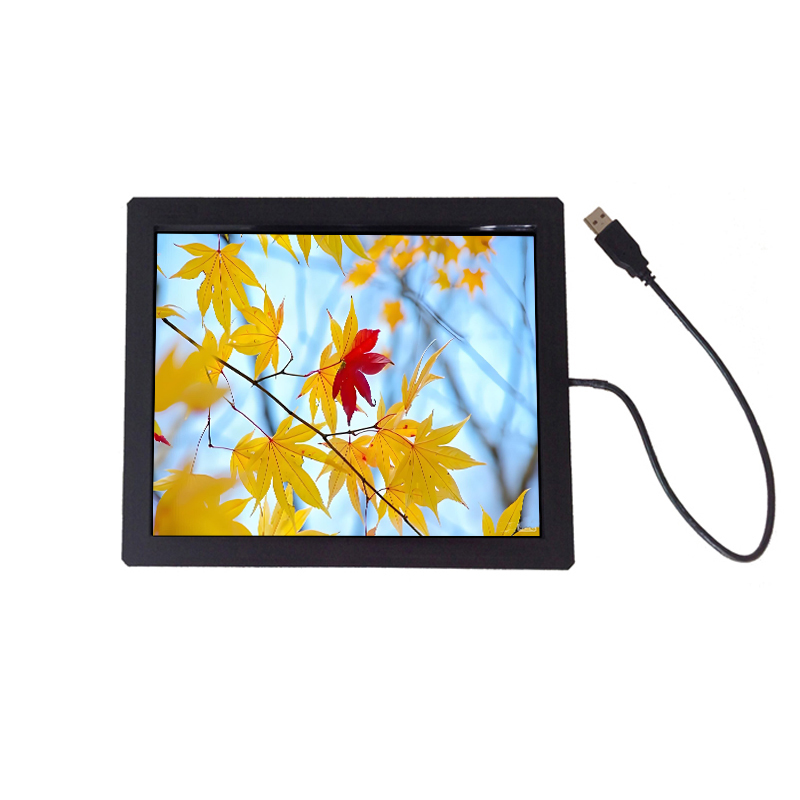

The AXD-10OPN1P3-VH4 is a 10.4” Open Frame monitor with a 1000-nit high-brightness, sunlight-readable LCD for outdoor applications. It is optionally equipped with an IR infrared touchscreen, features an IP65 front bezel design, and comes with a standard integrated metal housing for easy installation. It supports rear mounting and VESA mounting. Its long lifespan and wide operating temperature range ensure high performance and accurate touch functionality even under direct sunlight.
| Display Specifications | |
| Display | 10.4″ Color TFT sunlight readable Monitor |
| Model Name | AXD-10OPN1P3-VH4 |
| Active Display Area (mm) | 211.2(H)x158.4(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | VGA (800X600) 16.2M /6 bit + FRC |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 300:1 |
| Viewing Angle (CR >=10) | 140/120 |
| Power consumption | 28 W typical, normal operation |
| Touch Screen | No touch screen, please request if needed |

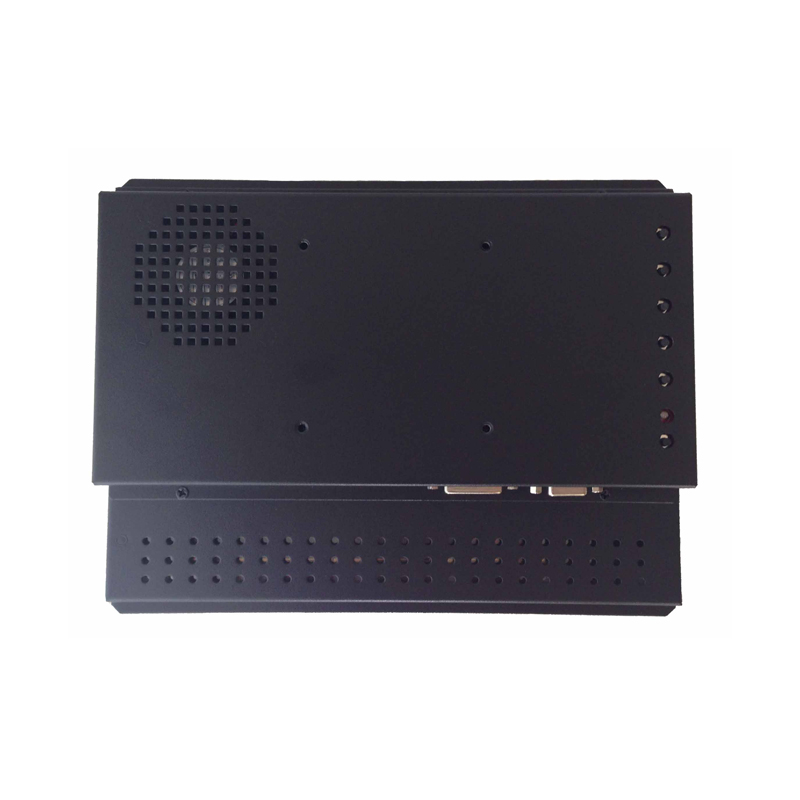

| OSD Control | On the back side |

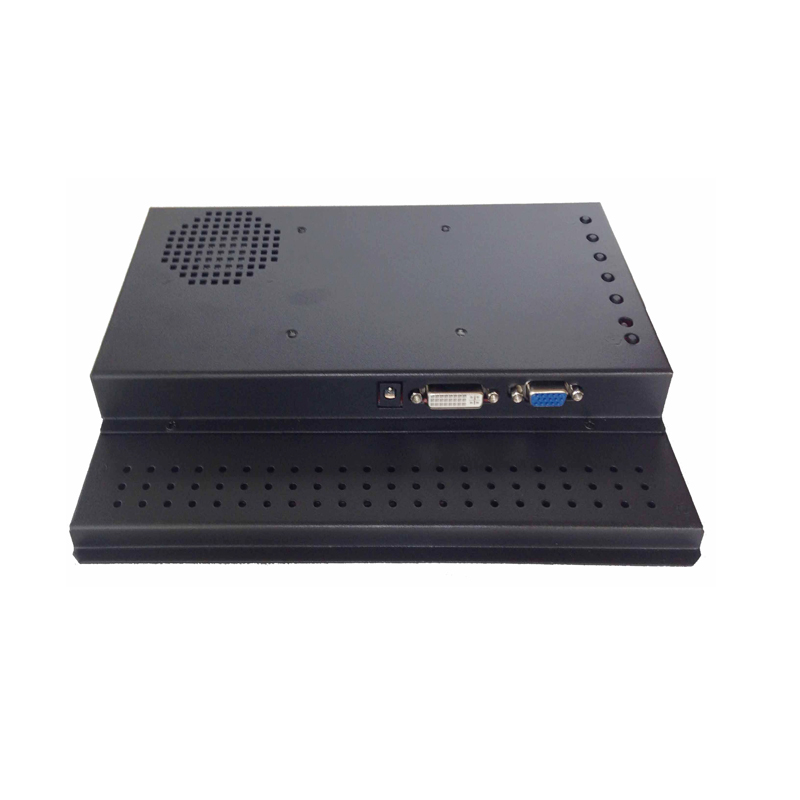

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel open frame & black Color |
| Dimensions | Subject to the updated drawings |
| Mounting | Edge fixing holes,Vesa Mounting |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~60ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 10.4″ high brightness open frame Monitor and power adapter for outdoors application |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame design to protect the LCD screen
5. VGA DVI interfaces ; touch with USB interface options
6. Sunlight readable 10.4 inch open frame touch LCD for application control , advertising player ,campus and industrial terminals etc
