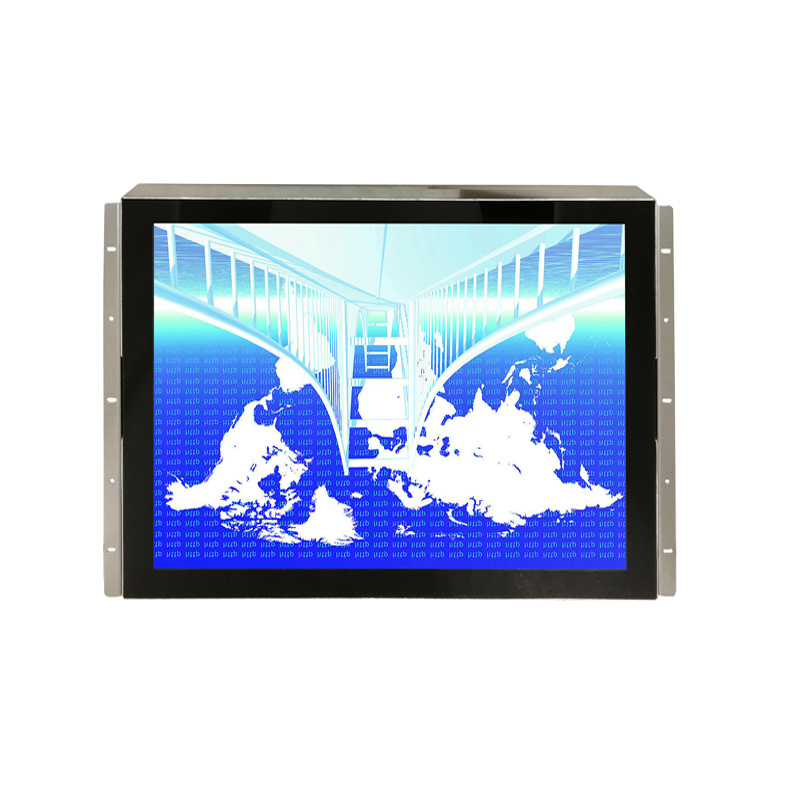

19 Inch Industrial Open Frame Multi Touch LCD screen Anti vandal

Brand :

Model: AXD-19OPN2P1-T2

Screen Size: 19″

Screen format: 5:4

Display Resolution(pixel): 1280X1024

Contrast Ratio: 1000:1

Brightness: 250cd/m^2

Storage temperature : -20℃~65℃
Operating temperature : -10°C ~ 60°C

Input signal: VGA DVI

Power Input: DC 12V,4A

Touch Type: Capacitive touch /IR Touch

Product status: Stock

Display Specifications
Display 19″ Color TFT Multi touch Monitor
Model Name AXD-19OPN2P1-T2
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Resolution (Pixel) SXGA (1280X1024) 16.2 M (6 bit + FRC)
Brightness (CD/m^2) 250cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 20.5W typical, normal operation
Touch Screen Capacitive touch with EETI chipset ; or IR touch

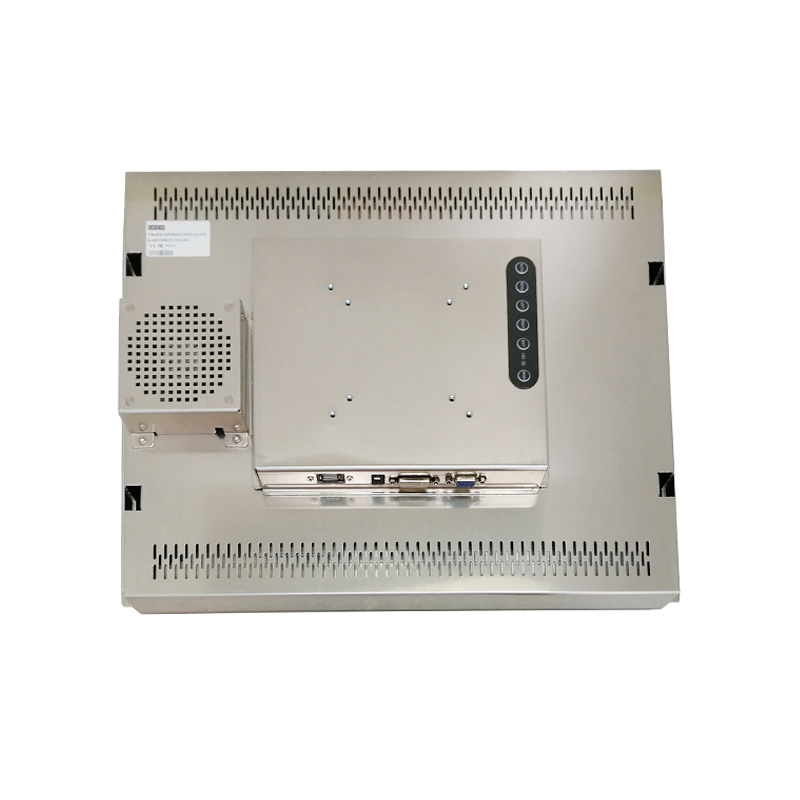

OSD Control On the back side

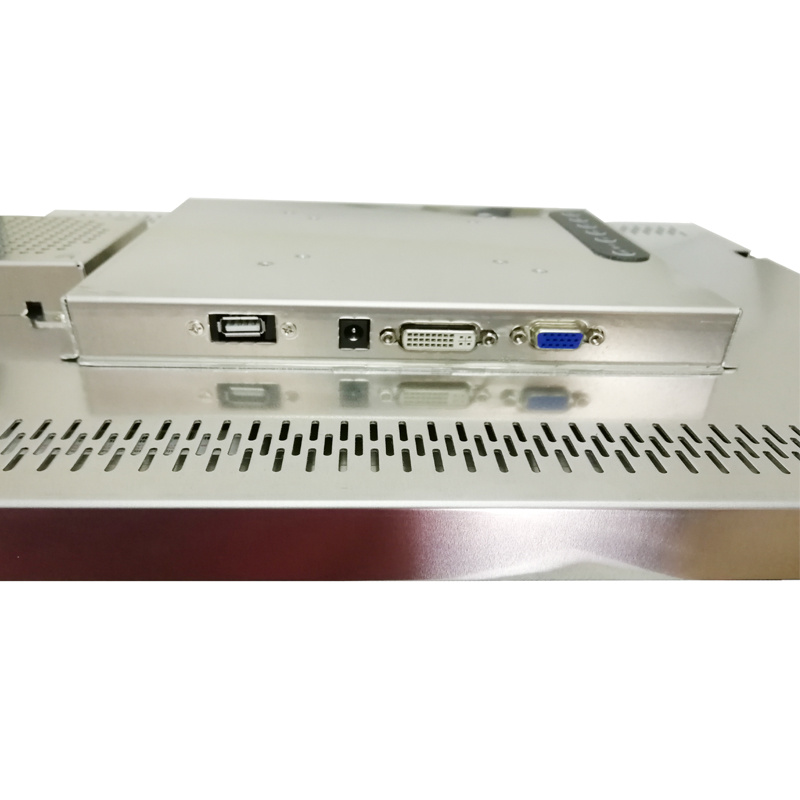

I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel chassis & Black Color
Dimensions 432.0 x 339.0×49.8 (mm)
Mounting Edge locking ,fixing holes embedded
Power source AC 100~240V/ 12V DC-4A
Environment Specifications
Operating Temperature -10~60℃
Storage Temperature -20~65℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 19” capacitive touch Monitor 250nits with VGA input and power adapter



Features and Advantages

1. New and Industrial A grade perfect panels with stable supply

2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed

3. industrial control board supports the displays working 24 hours

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. VGA DVI interfaces ;capacitive touch / IR Touch screen with anti-vandal to protect the LCD

6. 19 inch high brightness open frame touch monitor for application control , advertising player ,campus and industrial terminals etc

19''Industrial Open Frame Multi Touch LCD screen Anti vandal
