| LCD monitor information | |
| Model Number | AXD-08OPN1P3-T3 |

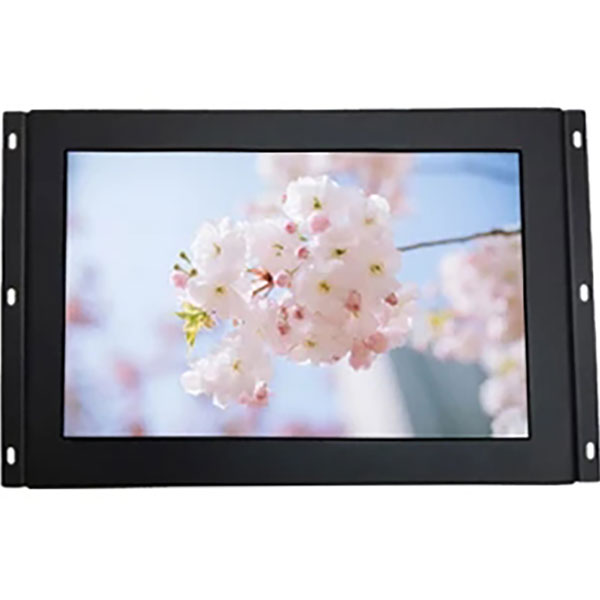

| 8’’ Capacitive Touch LCD display | |
| Type | 8 “ TFT Active Matrix LCD with LED Backlight |
| Active Display Area(mm) | 162.0(H)x121.5(V) |
| Pixel Pitch(mm) | 0.213(H)x0.213(V) |
| Resolution | 800 x 600 |
| Contrast Ratio | 500:1 (typ.) |
| Display Color | 16.2M colors |
| Brightness | 250(Typ) |
| Viewing Angles | 140(H);120(V) |
| Response Time | 10ms/15ms |
| Environmental Temperature | |
| Operating Temperature | -10℃~70℃ |
| Storage Temperature | -20℃~80℃ |
| Signal Input | |
| PC | RGB analog ,HDMI mainly |
| RGB Frequency | H:31.5~38kHz, V:50~60Hz |
| Power Specification | |
| Voltage Consumption | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation | |
| Touch Screen Optional | Capacitive touch |
| PCAP touch panel | G+G cover glass, anti-vandal |
| Touch interface | USB |
| Transmittance | >=92% |
| Input voltage | less than 10V |
| working temperature | -10℃~65℃ |
| touch kits | >=50,000,000 times in one position |
| Dimensions | |
| Construction | Rugged chassis & Black Color |
| Holes fixings | Right Left fixing holes |
| Mechanical dimensions | 223.0 x 156.5x 33.0 (mm) |
| Drawings | Please contact us for details |
Features and Advantages
1. 8.0” New and A grade perfect panels with stable supply

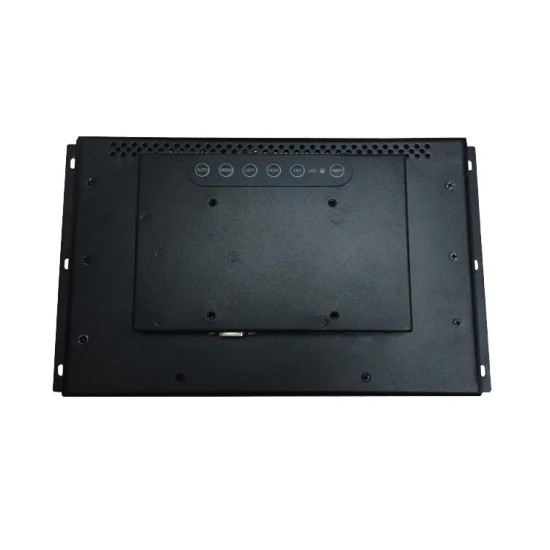

2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA hdmi interfaces ; touch screen USB connection for touch only
6. 8 inch open frame Projected capacitive touch is new and popular touch technology for Medical industry , Automatic equipments etc
