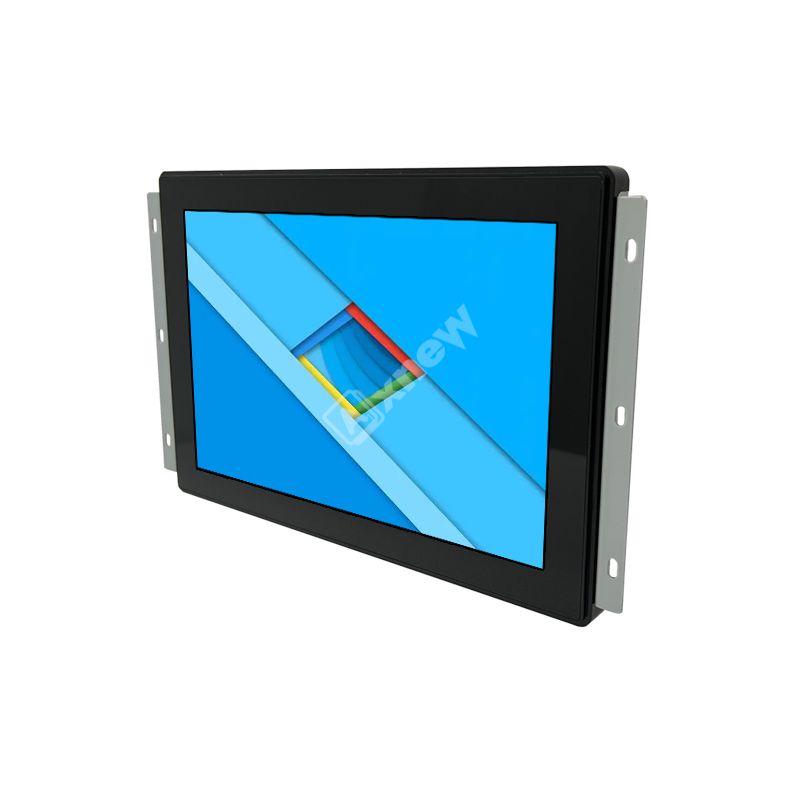

AXD-10OPMM2-T2V3 is 1000nits monitor with 10.1” embedded open frame capacitive touch , its feature are mainly as followings:
a. Embedded/Open Frame Design
– No External Housing: Exposes internal components for direct integration into host systems.
– Flexible Mounting: Compatible with custom brackets, VESA mounts, or panel cutouts.
– Space-Saving: Slim profile (e.g., 10–20 mm thickness) ideal for compact environments.
b. Environmental Durability
– Wide Temperature Range: Typically -20°C to 70°C (extended models: -30°C to 85°C).
– Humidity Resistance: 10–90% RH (non-condensing).
– Vibration/Shock Tolerance: Robust construction for industrial or mobile use.
Axnew display 10.1 inch screen with IP front sealing to embedded way open frame lcd is suitable for outdoor advertising, outdoor traffic information, semioutdoor sports venues, and other outdoor occasions that require high-brightness display.
Technical Parameter
| Display Specifications | |
| Display | 10.1″ TFT IPS high brightess screen |
| Model Name | AXD-10OPMM2-T2V3 |
| Active Display Area (mm) | 216.96(H) x 135.6 (V) |
| Pixel Pitch (mm) | 0.1695 (H) x 0.1695 (V) |
| Resolution (Pixel) | SVGA (1280X800) 16.7M Color |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 176/176 |
| Power consumption | 12.52W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel with USB |
| OSD Control | On the back side |

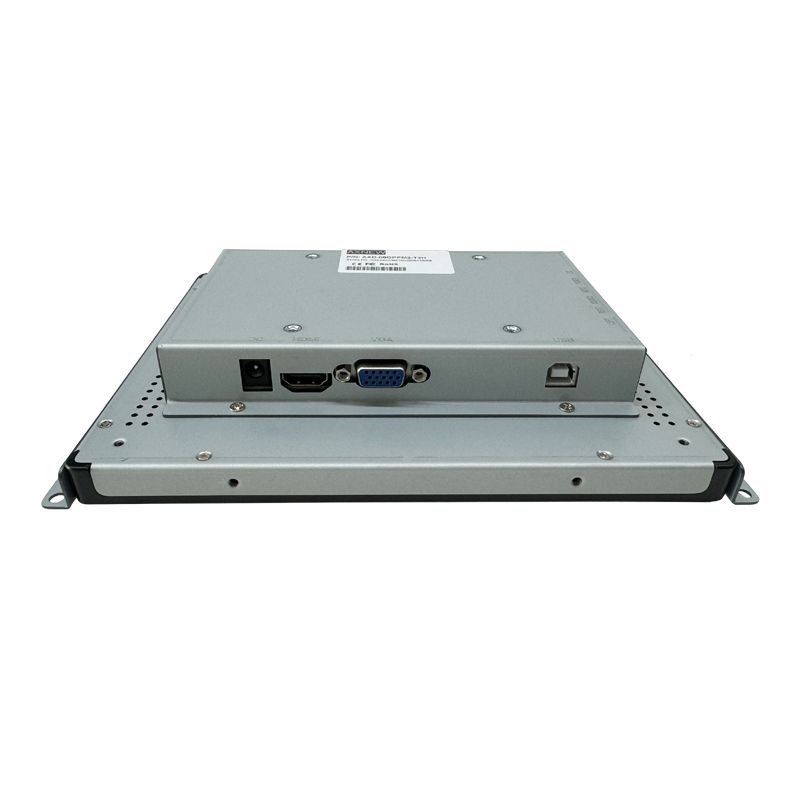

| I/O Connectors | 1x12v,1XVGA,HD |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |

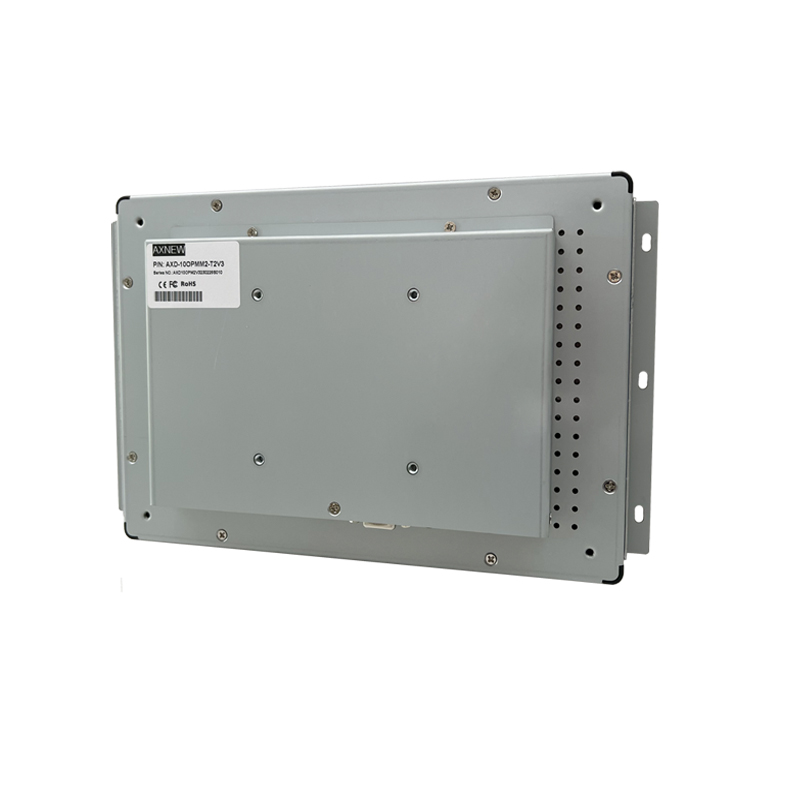

| Construction | embedded open frame with rear fixings holes |
| Dimensions | 260x 178 x38 (mm) |
| Mounting | Embedded, edge fixing |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 10.1”high bright Industrial touch display |
Features and Advantages
1. 10.1 inch wide temperature A grade perfect panels with stable supply
2. Wide viewing angle with IPS technology LCD screen with led backlight low consumption
3. Control board supports the displays with VGA and HDI options.
4. IP65 Design with open Frame protects the water and dust .
Packaging & Delivery
| Packing details | 1x 10.1 inch High bright Touch Screen Monitor;Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 10 working days for order production |
