Wall mount Fanless 10’’ Industrial Touch Screen PC with RS232

Panel PC information

Model Number

AXD-10PPC-V2A10

10” Fanless industrial Touch pc with capacitive touch

Case/Bezel Color

Black

TFT Type

IPS LCD with LED backlight

Aspect ratio

16:10

Useful Screen Area

220.6 mm x 139.6 mm

Touch Panel

capacitive Flat Screen with multi-touch (free driver)

Touch response time

10ms (typical)

Touch PC Dimensions

293x 194×60.3mm

Optimal (native) Resolution

1280 x 800

LCD panel Pixel pitch

0.1695 x 0.1695 mm

LCD panel Colors

262K/16.7 million

LCD panel Brightness

350 cd/m2

LCD panel Response Time

25 ms

Contrast Ratio

800:1

Viewing Angle ( Wide )

Horizontal (left/right)

±85° or 170° total

Vertical (up/down)

85°(up), 85°(down) or 170° total

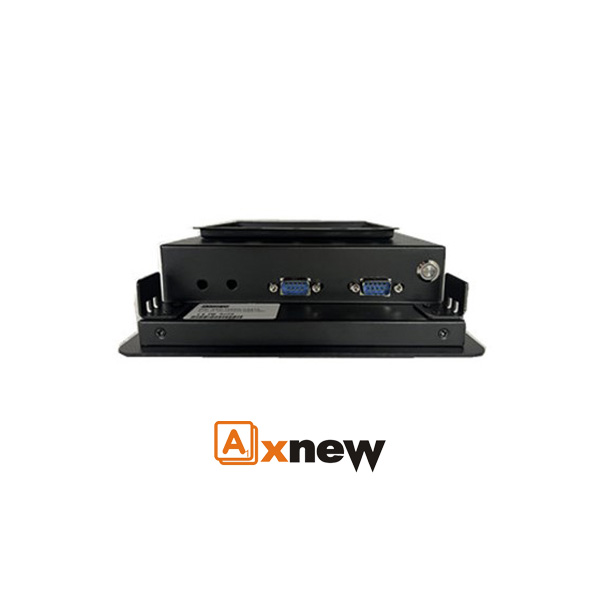

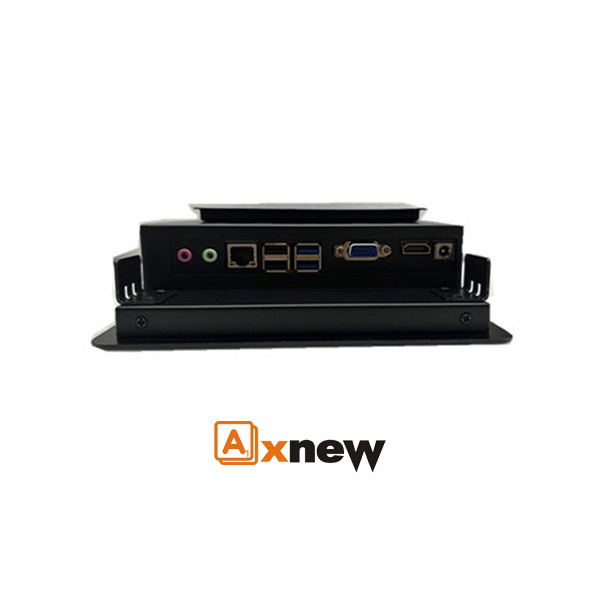

Output Interface

COM/HDMI type/ Audio/Mic

Input Interface

USB*4

Net

Internet LAN

Watch Dog Technology

Support

Power Specification

External AC to DC power brick

input: +12VDC ±5%,4.0 A; DC Jack (2.5); DC 24V 3Pin phoenix input

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power dissipation: 36W max

ECM (Embed Computer Module)

Intel® processor 1037U (1.8GHz + NM10 Chipset);

SSD: 64G;Rom:4G(DDR3,max6G);

Operation System:Win7/10/Vista/Linux

Temperature

Operating: -10°C to 60°C ;Storage -20°C to 70°C

Humidity (non condensing)

Operating: 20%-90%; Storage: 10%-95%

Shipping Carton Dimensions

490 x 440 x340 mm (Five pieces in one )

Weight (approx.)

Actual: 11kg ;Shipping: 15kg

Dimensions

Holes fixings

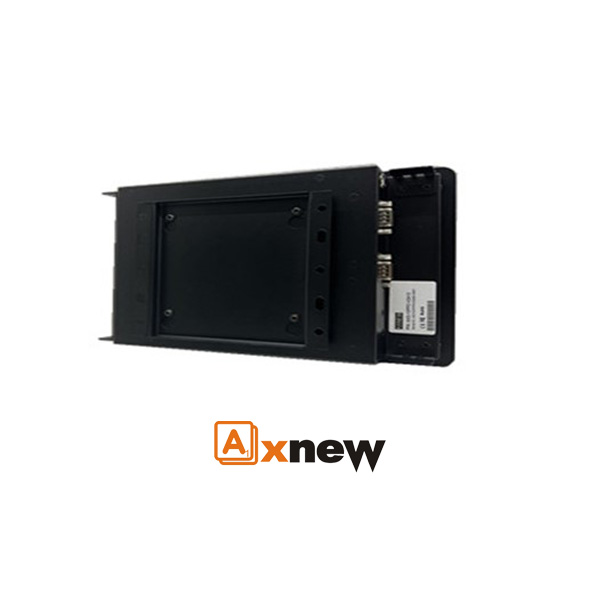

Clamp mount on sides， Vesa Mounting

Mechanical dimensions

293x 194×60.3mm

Drawings

Please contact us for details
