| Display Specifications | |
| Display | 10.1″ TFT IPS LCD with super Bright |
| Model Name | AXD-10OPMM2-T2V3 |
| Active Display Area (mm) | 216.96(H) x 135.6 (V) |
| Pixel Pitch (mm) | 0.1695 (H) x 0.1695 (V) |
| Resolution (Pixel) | SVGA (1280X800) 16.7M Color |
| Brightness (CD/m^2) | 1000cd/m^2 ( Super Bright) |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 170/170 |
| Power consumption | 11.52W typical, normal operation |
| Touch Screen | Capacitive touch panel with USB |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,1XHDMI |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | rugged open frame IP65 sealing with edge fixings holes |
| Dimensions | 287 x 185 x33 (mm) |
| Mounting | Embedded, edge fixing |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |

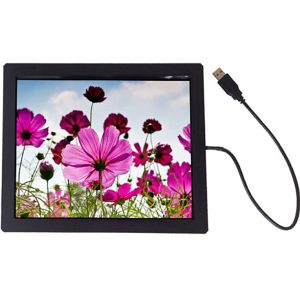

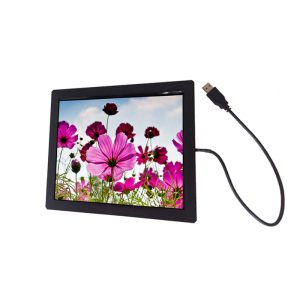

| Ordering Information | 10.1” Open Frame IP65 Embedded touch display |
Features and Advantages
- New and Industrial A grade perfect panels 1000nits super brightness with stable supply
- Wide viewing angle with IPS technology LCD screen with led backlight low consumption
- Control board supports the displays with VGA and HDMI options.
- IP65 Design with open Frame protects the water and dust .
