| Display Specifications | |

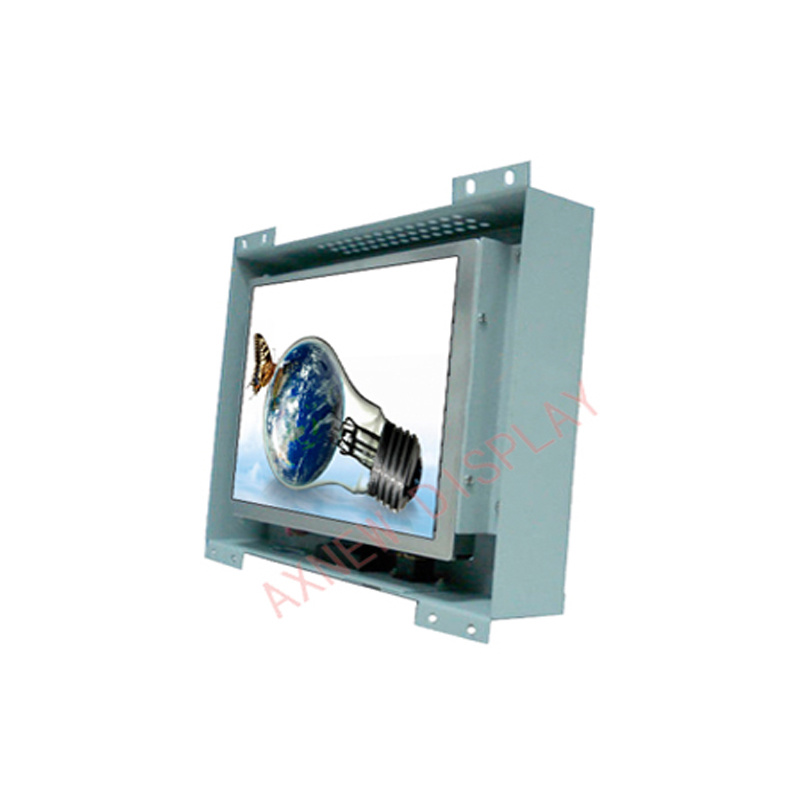

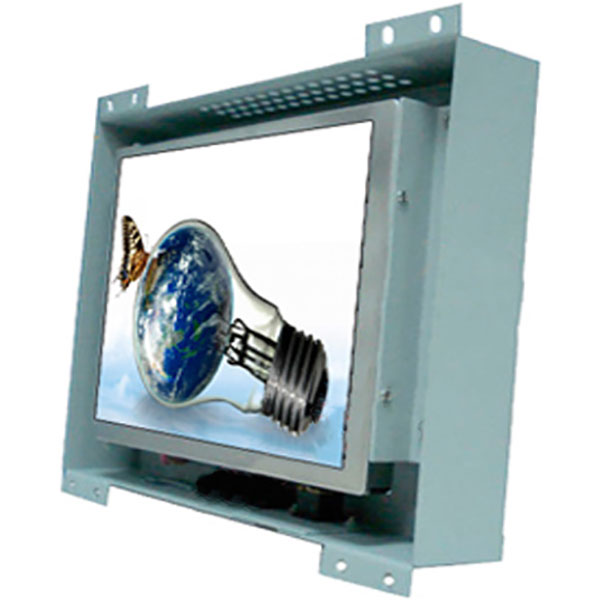

| Display | 6.5″ Color TFT Open Frame LCD |
| Model Name | AXD-06OPN1P1-VH2 |
| Active Display Area (mm) | 132.48 (H)x99.36(V) |
| Pixel Pitch (mm) | 0.207(H)x0.207(V) |
| Resolution (Pixel) | VGA (640X480);16.2M/262 colors |
| Brightness (CD/m^2) | 800/m^2 |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 140/120 |
| Power consumption | 6.32 W typical, normal operation |
| Touch Screen | No touch screen ,Resistive touch screen options if needed |
| OSD Control | On the back side |

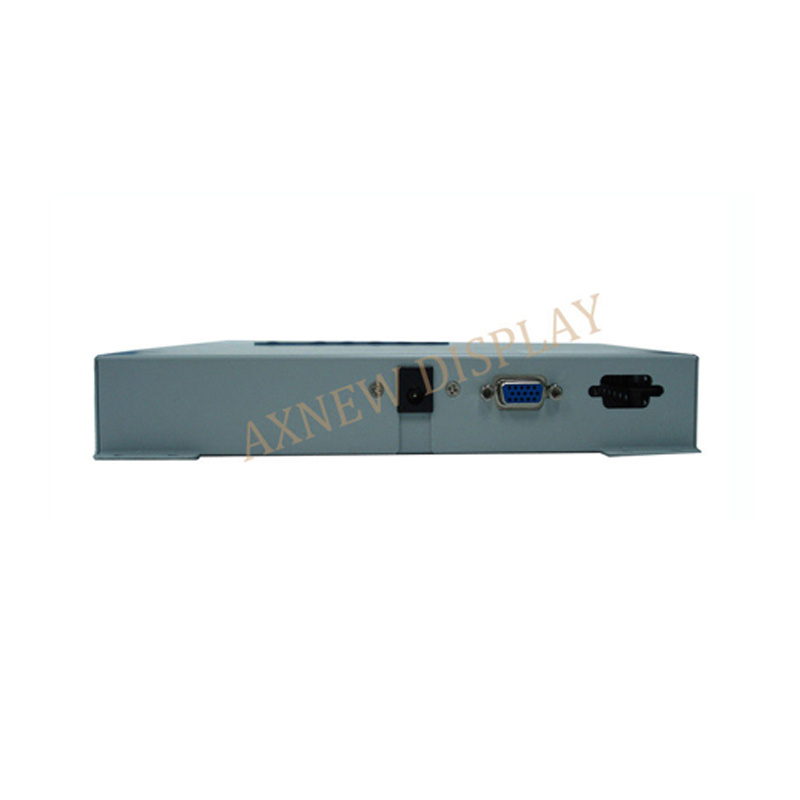

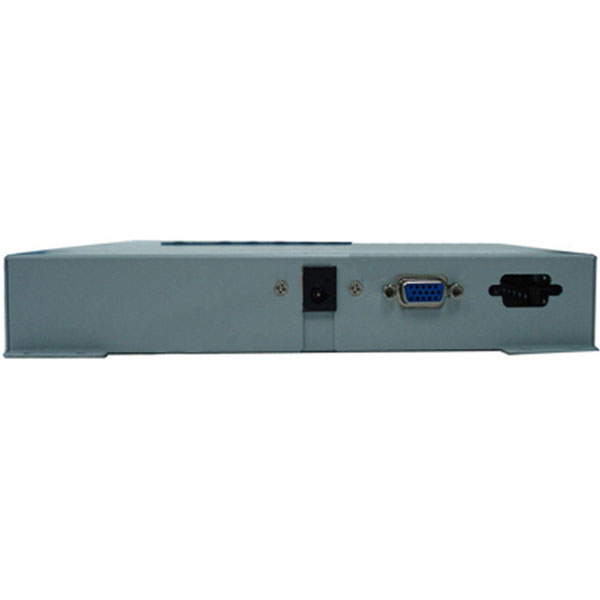

| I/O Connectors | 1x12v,1XVGA |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | steel metal chassis & Galvanized Color |
| Dimensions | 199.5x 150.0x 33.5 (mm) |
| Mounting | Edge fixing installation |
| Power source | AC 100~240V/ 12V DC-4A |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -20~80ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
