| LCD monitor information | |
| Model Number | AXD-13OPPM2-T2C (VGA; HDMI) |

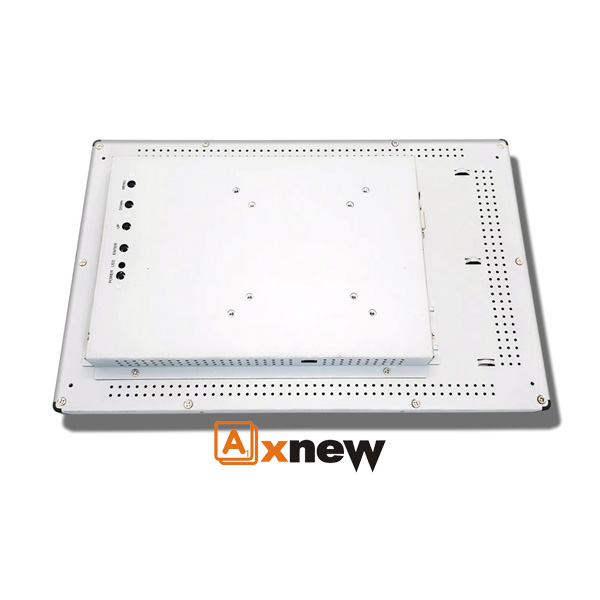

| 13.3” Open Frame Touch display with IP65 deisgn | |
| Type | 13.3 ” TFT Active Matrix LCD with LED Backlight |
| Active Display Area(mm) | 293.76(H)x165.24(V) |
| Pixel Pitch(mm) | 0.153(H)x0.153(V) |
| Resolution | 1920 x 1080, |
| Contrast Ratio | 800:1 (typ.) |
| Display Color | 262 K colors |
| Brightness | 300(Typ) |
| Viewing Angles | 170(H);170(V) |
| Response Time | 10ms/15ms |
| Environmental Temperature | |
| Operating Temperature | 0ºC~50ºC |
| Storage Temperature | -20ºC~60ºC |
| Signal Input | |
| PC | RGB analog; HDMI |
| Other connections | 1X DC power connector; 1xUSB for touch connection |
| Power Specification | |
| Voltage Consumption | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation | |
| Touch Screen Optional | |
| touch panel Type | Pro-Capacitive Touch screen |
| Touch interface | USB |
| Transmittance | >=92% |
| Input voltage | 3.3V-5.5V |
| working temperature | -10ºC~60ºC |
| touch kits | >=50,000,000 times in one position |
| Dimensions | |
| Construction | Rugged chassis with IP sealing& Black Color |
| Holes fixings | Right Left fixing holes |
| Mechanical dimensions | 350.7 x 228.2x 36.0 (mm) |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 13.3 inch Industrial Touch Screen Monitor;
Packed in 5 pieces/carton with protection foam Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power adapter |
| Delivery terms | 7-10 working days for stock products after receiving payments; 15 working days for order production |
