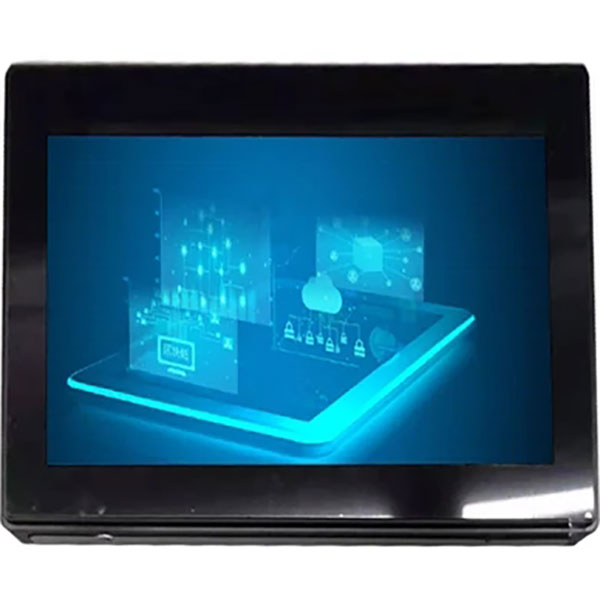

| Description | ScreenSize:8.0''
Display Resolution(pixel):800 x 600
Contrast Ratio:500:1
Brightness(CD/m^2):250 cd/m2
Touch type:No touch screen | Model NO: AXD-07OPN1P2-V1(VGA/AV)
Screen Size: 7 Inch
Display Resolution(pixel): 800 X 480, up to 1024X768
Contrast Ratio: 500:1
Brightness (CD/m^2): 250cd/m^2
Touch type: Projected Capacitive
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-19OPN2P3-T2W
Screen Size: 18.5 inch
Display Resolution(pixel): 1366x768
Contrast Ratio: 1000:1
Brightness (CD/m^2): 250cd/m^2
Touch type: Projected-capacitive Touch
Application: Kiosks,Industrial machines,Automation,etc | Model：AXD-08OPN1P1
Size：8.4inch
Resolution：800x600
Contrast：500:1
Brightness：450 cd/m^2
Storage Temp.：-30℃~80℃
Signal inputs：VGA+DVI
Power：DC 12V | Model NO: AXD-19OPN1P2-T3
Screen Size: 19 inch
Display Resolution(pixel): 1280x1024
Contrast Ratio: 1000:1
Brightness (CD/m^2): 250cd/m^2
Touch type: Projected Capacitive
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-15OPN1P3-V2C
Screen Size: 15 inch
Display Resolution(pixel): 1024x768
Contrast Ratio: 600:1
Brightness (CD/m^2): 400nits
Touch type: Projected Capacitive
Application: Kiosks,Industrial machines,Automation,etc |
| Content |
 |
| LCD monitor information |
|
| Model Number |
AXD-07OPN1P1-V2 |
| 7'' Open frame Monitor |
| Type |
7 " TFT Active Matrix LCD with LED Backlight |
| Active Display Area(mm) |
154.08 (H) x 85.92 (V) |
| Pixel Pitch(mm) |
0.0642 (H) x 0.1790 (V) |
| Resolution |
800 x 480, up to 1024X768 |
| Contrast Ratio |
500:1 (typ.) |
| Display Color |
16.7 M colors |
| Brightness |
250(Typ) |
| Viewing Angles |
140(H);120(V) |
| Response Time |
10ms/15ms |
| Environmental Temperature |
|
| Operating Temperature |
-10ºC~70ºC |
| Storage Temperature |
-20ºC~80ºC |
| Signal Input |
|
| PC |
RGB analog(VGA), h-dmi, AV |
| RGB Frequency |
H:31.5~38kHz, V:50~60Hz |
| Power Specification |
|
| Voltage Consumption |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 6.3W typical, normal operation |
| Touch Screen Optional |
Resistive Touch; Capacitive Touch options |
| Dimensions |
| Holes fixings |
Vesa mounting 75x75/ fixing holes on the right/left |
| Mechanical dimensions |
208mmx124mmx31mm |
| Drawings |
Please contact us for details |
| Features and Advantages |
| 1.New and A grade perfect panels with stable supply |
| 2. Professional and industrial hardware and parts to guarantee its working normally in rough environment |
| 3. open frame with front panel frame design on the surface, rugged mounted frame to protect the LCD screen |
| 4. VGA h-dmi AV interfaces ;USB touch interface options |
| 5. 7inch open frame monitor for gaming, kiosks, application control , advertising player , campus and industrial terminals etc |
 |
| Display Specifications |
|
| Display |
18.5" Color TFT Open Frame LCD Monitor |
| Model Name |
AXD-19OPN2P3-T2W |
| Active Display Area (mm) |
413.4 (H)x 234.0(V) |
| Pixel Pitch (mm) |
0.300(H)x0.300(V) |
| Resolution (Pixel) |
1366x768,16.7M (6 bit + Hi-FRC) |
| Brightness (CD/m^2) |
250cd/m^2 |
| Contrast Ratio |
1000:1 |
| Viewing Angle (CR >=10) |
170/160 |
| Power consumption |
20.5W typical, normal operation |
| Touch Screen |
|
| Type |
Capacitive Touch USB Connection |
| Surface Hardness |
>6H |
| Durability |
50Million Touches |
| Transparency |
88%~92% |
| OSD Control |
On the back side |
| I/O Connectors |
1x 12vDC JACK,1xVGA,1xhdmi;1xUSB for touch use only |
| Power Input |
48W adapter with AC 100~240V input and 12V@4A Output |
| Mechanical Specifications |
|
| Construction |
Steel metal slim frame |
| Dimensions |
Subject to the drawings |
| Mounting |
fixing braket ;Embedded optional |
| Environment Specifications |
|
| Operating Temperature |
0~50ºC |
| Storage Temperature |
-20~60ºC |
| Rating |
Facilitate installation of the demolition, solid portfolio |
| Ordering Information |
18.5" slim Monitor AXD-18OPN2P3-T2W and power adapter |
Features and Advantages
1. 18.5'' New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one, which is easily installed
3. HDMI control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA HDMI DVI Signal inputs; capacitive touch screen with EETI chipset controller
6. 18.5 inch wide screen open frame monitor for application control, advertising player, campus and industrial terminal, etc
 |
| Display Specifications |
|
| Display |
8.4" Color TFT Industrial Open Frame LCD monitor |
| Model Name |
AXD-08OPN1P1(VGA) |
| Active Display Area (mm) |
170.4(H)x127.8(V) |
| Pixel Pitch (mm) |
0.264(H)x0.264(V) |
| Resolution (Pixel) |
VGA (800X600)6 bit + FRC |
| Brightness (CD/m^2) |
450 cd/m^2 |
| Contrast Ratio |
600:1 |
| Viewing Angle (CR >=10) |
160/140 |
| Power consumption |
8.5 W typical, normal operation |
| Touch Screen |
Resistive touch |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
| Power Input |
DC 12V, 4A 48W |
| Mechanical Specifications |
|
| Construction |
Steel metal housing & black Color |
| Mounting |
Embedded ,vesa75x75;100x100 Wall Mounting Optional |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
-20~70℃ |
| Storage Temperature |
-30~80℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
8.4 inch Open Framemonitor with VGA Input and power adapter |
 |
|
Display Specifications
|
|
|
Display
|
19" Color TFT Open Frame Monitor with touch
|
|
Model Name
|
AXD-19OPN1P2-T3
|
|
Active Display Area (mm)
|
376.3 (H)x301.1(V)
|
|
Pixel Pitch (mm)
|
0.294(H)x0.294(V)
|
|
Resolution (Pixel)
|
SXGA (1280X1024) 262,16.2M (6 bit + FRC)
|
|
Brightness (CD/m^2)
|
250cd/m^2
|
|
Contrast Ratio
|
1000:1
|
|
Viewing Angle (CR >=10)
|
170/160
|
|
Power consumption
|
22.5W typical, normal operation
|
|
Touch Screen
|
SAW ;RS232/USB(Optional)
|
|
OSD Control
|
On the back side
|
|
I/O Connectors
|
1x12v,1XVGA,DVI-D
|
|
Power Input
|
DC 12V,4A 48W
|
|
Mechanical Specifications
|
|
|
Construction
|
Steel metal slim frame
|
|
Dimensions
|
398.5 x 326.5x 34.0 (mm)
|
|
Mounting
|
fixing braket ;Embedded optional
|
|
Power source
|
AC 100~240V/ 12V 4A AC/DC adapter
|
|
Environment Specifications
|
|
|
Operating Temperature
|
0~60ºC
|
|
Storage Temperature
|
-10~70ºC
|
|
Rating
|
Facilitate installation of the demolition, solid portfolio
|
|
Ordering Information
|
19" Open frame slim Monitor with VGA input and power adapter
|
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; saw touch screen with IP65 .
6. 19 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc
|
| Display Specifications |
|
| Display |
15" High Bright Capacitive touch Monitor |
| Model Name |
AXD-15OPN1P3-V2C |
| Active Display Area (mm) |
305.7(H)x229.7(V) |
| Pixel Pitch (mm) |
0.297(H)x0.297(V) |
| Resolution (Pixel) |
VGA (1024x768)6 bit + FRC |
| Brightness (CD/m^2) |
400nits |
| Contrast Ratio |
600:1 |
| Viewing Angle (CR >=10) |
160/150 |
| Power consumption |
10.6 W typical, normal operation |
| Touch Screen |
Pro-Capacitive touch panel( USB Controller) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
| Power Input |
DC 12V,4A 48W |
| Mechanical Specifications |
|
| Construction |
Steel housing & black Color, anti-vandal |
| Dimensions |
339.5x 264.0x42.5(mm) |
| Mounting |
Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
-20~70ºC |
| Storage Temperature |
-30~80ºC |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Privacy film |
Optional :Right Side 30+/-5 Degree;Left Side 30+/-5 Degree |
| Ordering Information |
15" LCD High Bright RGB Open Frame LCD |
Features and Advantages
1. New and Industrial A grade perfect panels , with super viewing angle, high brightness up to 400nits.
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces for Capacitive Touch Screen Monitor
6. Projection capacitive touch with anti-vandal glass, could be eeti chipset witout any interference.
7. 15 inch open frame capacitive touch is new and popular touch technology for financial industry ,banking , Automatic equipments etc
|
