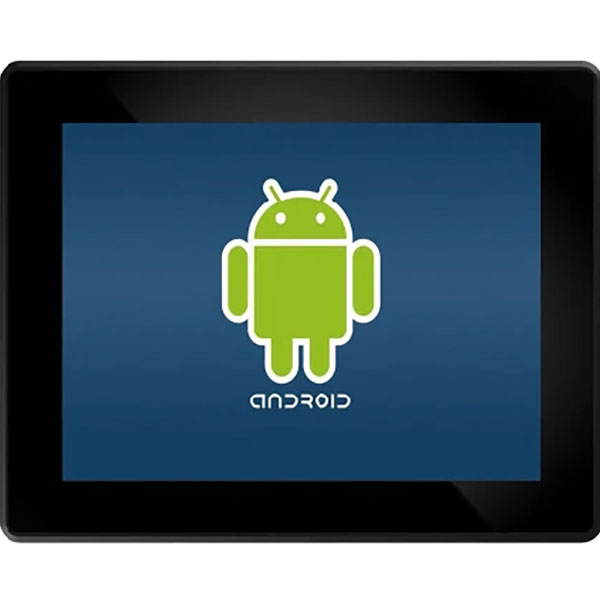

Panel Mount Industrial Rugged Touch Panel PC Computer, 4/3 Touch Screen PC

Brand :

Model NO: AXD-12PPC-V2A

Screen Size: 12.1 Inch

Display Resolution(pixel): 800×600

Contrast Ratio:500:1

Brightness (CD/m^2): 400cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-12PPC-V2A
12.1” Touch pc
Case/Bezel Color Sliver
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Useful Screen Area 245.76 mm x 184.32mm
Touch Panel Industrial Resistive Flat Screen
Touch response time 10ms (typical)
Touch PC Dimensions 306.8x 228.8×51.7 mm
Optimal (native) Resolution 800×600
LCD panel Pixel pitch 0.296 x 0.296 mm
LCD panel Colors 262K/16.2 million
LCD panel Brightness 400 cd/m2
LCD panel Response Time 25 ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±70° or 140° total
Vertical (up/down) 70°(up), 70°(down) or 140° total

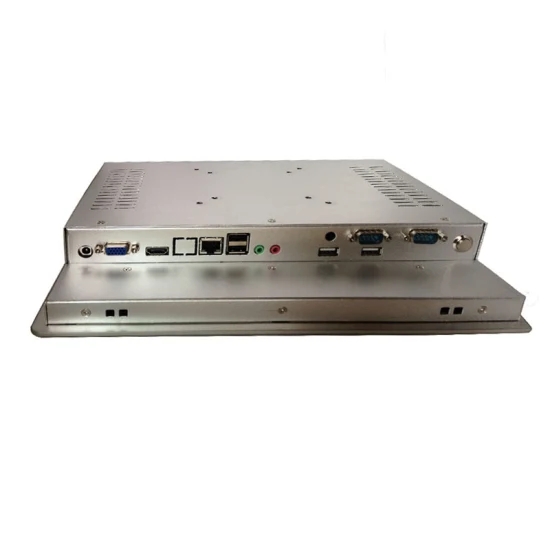

Output Interface DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc
Input Interface USB*2.can extend
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5¢)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module) Intel® processor D2550 (1.8GHz + NM10 Chipset)

SSD: 8G;Rom:2G(DDR3,max6G);

Operation System:Win7;Xp;Vista;Linux

Temperature Operating: -10°C to 70°C ;Storage -20°C to 80°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions one piece/ per carton
Weight (approx.) Actual: 3.5kg ;Shipping: 4 kg
Dimensions
Holes fixings Vesa mounting 100×100; fixing button
Mechanical dimensions 306.8mmx 228.8mmx51.7mm
Drawings Please contact us for details



Packaging & Delivery
Packing details 1x 12.1 inch Industrial Touch Panel PC ;

Packed in 1 piece/carton with protection foam

Optional accessories:1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production
